VZN90L-CRSDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN8#,90,VZN85,9#..JPP ; (9108- )VZN120..JPP

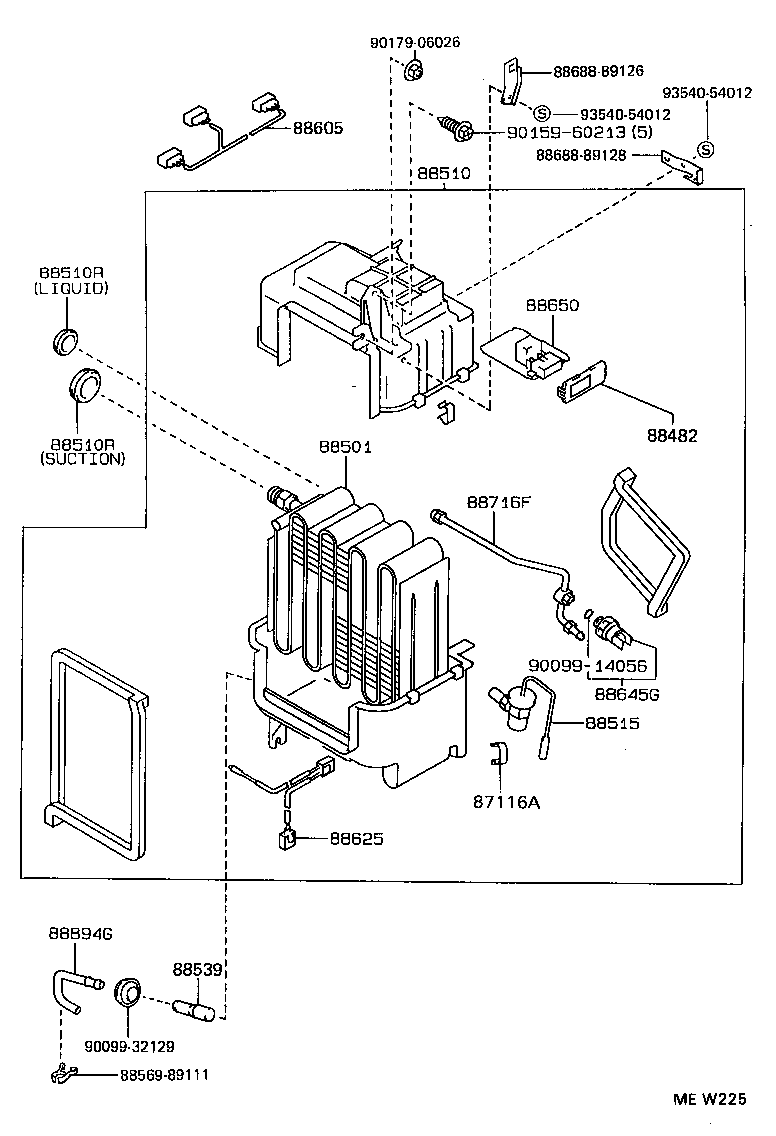

Click highlighted areas on diagram

DEALER OPTION

diagram 87116A 88482 88501 88510 88510R 88510R 88515 88539 8856989111 88605 88625 88645G 88650 8868889126 8868889128 88716F 88894G 9009914056 9009932129 9015960213 9017906026 9354054012 9354054012
Part # Description Qty Price
88482 - CAP, COOLER
88482-60010

RN12#,8#,90,VZN120,85,9#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-89111

RN8#,90,VZN85,9#

 1
88510 - UNIT ASSY, COOLER
88510-89142

RN8#,90..EFI..USA

MAKER OPTION

 1
88510-89149

VZN85,9#..USA

MAKER OPTION

 1
88510-89151

RN8#,90..EFI..USA

DEALER OPTION

 1
88510-89157

VZN85,9#..USA

DEALER OPTION

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26003

RN80..G..USA;RN12#,80,VZN120..EFI;RN85,90,VZN85,9#..USA

LIQUID

 1
90480-36003

RN80..G..USA;RN12#,80,VZN120..EFI;RN85,90,VZN85,9#..USA

SUCTION

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26003

RN80..G..USA;RN12#,80,VZN120..EFI;RN85,90,VZN85,9#..USA

LIQUID

 1
90480-36003

RN80..G..USA;RN12#,80,VZN120..EFI;RN85,90,VZN85,9#..USA

SUCTION

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

RN8#,90,VZN85,9#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89113

RN12#,8#,90,VZN120,85,9#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-89152

RN8#,90,VZN85,9#..EFI

 1
88625 - THERMISTOR, COOLER, NO.1
88625-89102

RN8#,90,VZN85,9#

 1
88645G - SWITCH, PRESSURE
88645-10020

RN80..EFI;RN80..G..USA;RN85,90..USA

DEALER OPTION

 1
88645-10020

RN8#,90..CND;RN80..W..CBR;RN12#,VZN120,85,9#

 1
88645-16020

RN80..EFI;RN80..G..USA;RN85,90..USA

MAKER OPTION

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-89106

RN12#,80..EFI;RN85,90..EFI..USA

 1
88650-89110

VZN120,85,9#..USA

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-89156

RN8#,90,VZN85,9#

 1
88894G - CONNECTOR, DRAIN HOSE
88894-89108

RN80..EFI;RN80..G..USA;RN120,85,90..USA

MAKER OPTION

 1
88894-89108

VZN120,85,9#..USA

 1
88894-89112

RN80..EFI;RN80..G..USA;RN120,85,90..USA

DEALER OPTION

 1
Common parts
88569-89111
88688-89126
88688-89128
90099-14056
90099-32129
90159-60213
90179-06026
93540-54012

(8808- )RN8#,90,VZN85,9#..JPP ; (9109- )RN80..JPP

Click highlighted areas on diagram

MAKER OPTION

diagram 88482 88501 88510 88510R 88510R 88515 88539 88605 88625 88645G 88650 8868889126 8868889128 88716F 88894G 9009914056 9015960213 9017906026 9048026022
Part # Description Qty Price
88482 - CAP, COOLER
88482-60010

RN12#,8#,90,VZN120,85,9#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-89111

RN8#,90,VZN85,9#

 1
88510 - UNIT ASSY, COOLER
88510-89142

RN8#,90..EFI..USA

MAKER OPTION

 1
88510-89149

VZN85,9#..USA

MAKER OPTION

 1
88510-89151

RN8#,90..EFI..USA

DEALER OPTION

 1
88510-89157

VZN85,9#..USA

DEALER OPTION

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26003

RN80..G..USA;RN12#,80,VZN120..EFI;RN85,90,VZN85,9#..USA

LIQUID

 1
90480-36003

RN80..G..USA;RN12#,80,VZN120..EFI;RN85,90,VZN85,9#..USA

SUCTION

 1
88510R - GROMMET (FOR COOLER UNIT)
90480-26003

RN80..G..USA;RN12#,80,VZN120..EFI;RN85,90,VZN85,9#..USA

LIQUID

 1
90480-36003

RN80..G..USA;RN12#,80,VZN120..EFI;RN85,90,VZN85,9#..USA

SUCTION

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

RN8#,90,VZN85,9#

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-89113

RN12#,8#,90,VZN120,85,9#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-89152

RN8#,90,VZN85,9#..EFI

 1
88625 - THERMISTOR, COOLER, NO.1
88625-89102

RN8#,90,VZN85,9#

 1
88645G - SWITCH, PRESSURE
88645-10020

RN80..EFI;RN80..G..USA;RN85,90..USA

DEALER OPTION

 1
88645-10020

RN8#,90..CND;RN80..W..CBR;RN12#,VZN120,85,9#

 1
88645-16020

RN80..EFI;RN80..G..USA;RN85,90..USA

MAKER OPTION

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-89106

RN12#,80..EFI;RN85,90..EFI..USA

 1
88650-89110

VZN120,85,9#..USA

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-89156

RN8#,90,VZN85,9#

 1
88894G - CONNECTOR, DRAIN HOSE
88894-89108

RN80..EFI;RN80..G..USA;RN120,85,90..USA

MAKER OPTION

 1
88894-89108

VZN120,85,9#..USA

 1
88894-89112

RN80..EFI;RN80..G..USA;RN120,85,90..USA

DEALER OPTION

 1
Common parts
88688-89126
88688-89128
90099-14056
90159-60213
90179-06026
90480-26022
