VZN90L-CRSDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)RN8#,90,VZN85,9#..JPP

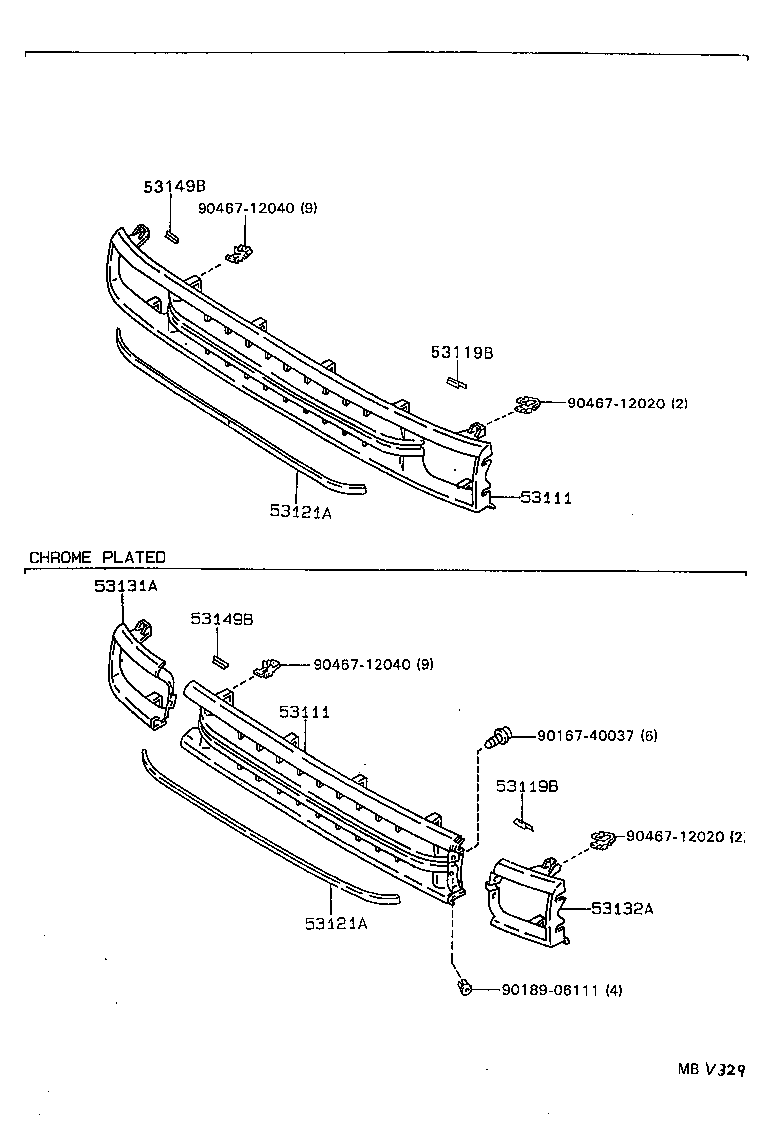

Click highlighted areas on diagram

diagram 53111 53111 53119B 53119B 53121A 53121A 53131A 53132A 53149B 53149B 9016740037 9018906111 9046712020 9046712020 9046712040 9046712040
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-89131

RN8#,90,VZN85,90..DLX

NO PAINT REQ.

 1
53111-89132

VZN85,95;RN8#,90,VZN90..DLX,SR5

PLATED

 1
53111 - GRILLE, RADIATOR
53111-89131

RN8#,90,VZN85,90..DLX

NO PAINT REQ.

 1
53111-89132

VZN85,95;RN8#,90,VZN90..DLX,SR5

PLATED

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-89105

RN12#,8#,90,VZN120,85,9#

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-89105

RN12#,8#,90,VZN120,85,9#

 1
53121A - MOULDING, RADIATOR GRILLE
53121-89105

VZN85,95;RN8#,90,VZN90..DLX,SR5

CHROME PLATED PACKAGE

 2
53121-89108

RN8#,90,VZN85,90..DLX

 2
53121A - MOULDING, RADIATOR GRILLE
53121-89105

VZN85,95;RN8#,90,VZN90..DLX,SR5

CHROME PLATED PACKAGE

 2
53121-89108

RN8#,90,VZN85,90..DLX

 2
53131A - DOOR, HEADLAMP, RH
53131-89117

VZN85,95;RN8#,90,VZN90..DLX,SR5

CHROME PLATED PACKAGE

 1
53132A - DOOR, HEADLAMP, LH
53132-89116

VZN85,95;RN8#,90,VZN90..DLX,SR5

CHROME PLATED PACKAGE

 1
53149B - PROTECTOR, HEADLAMP DOOR, NO.3
53149-89101

RN12#,8#,90,VZN120,85,9#

 1
53149B - PROTECTOR, HEADLAMP DOOR, NO.3
53149-89101

RN12#,8#,90,VZN120,85,9#

 1
Common parts
90167-40037
90189-06111
90467-12020
90467-12040
