VZN90L-CRSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

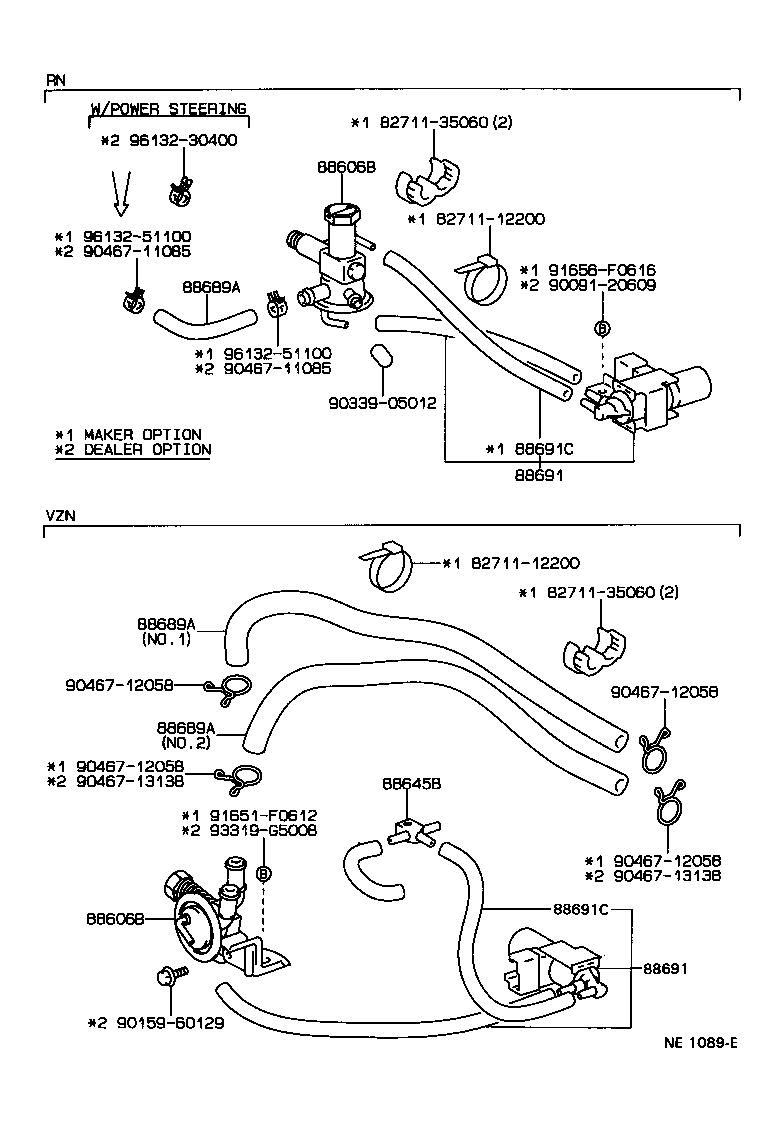

(8808- )RN120,8#,90,VZN85,9#..JPP..EFI

Click highlighted areas on diagram

diagram 8271112200 8271112200 8271135060 8271135060 88606B 88606B 88645B 88689A 88689A 88689A 88691 88691 88691C 88691C 9009120609 9015960129 9033905012 9046711085 9046711085 9046712058 9046712058 9046712058 9046712058 9046713138 9046713138 91651F0612 91656F0616 93319G5008 9613230400 9613251100 9613251100
Part # Description Qty Price
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-89102

VZN120,85,9#

 1
88606-35020

RN12#,8#,90..EFI

 1
88606-89102

VZN90

 1
88606B - DIAPHRAGM SUB-ASSY, COOLER
88606-89102

VZN120,85,9#

 1
88606-35020

RN12#,8#,90..EFI

 1
88606-89102

VZN90

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-89104

VZN85,9#..USA

L=320,DEALER OPTION,NO.2

 1
88689-89102

VZN120,85,90..USA..CBU

L=320,DEALER OPTION,NO.1

 1
88689-89104

VZN120,85,9#..USA

L=320,DEALER OPTION,NO.2

 1
88689-89104

VZN120,85,90..USA..CBU

L=320,DEALER OPTION,NO.1

 1
88689-89102

VZN85,9#..USA

L=320,DEALER OPTION,NO.1

 1
88689-89102

VZN120,85,90..USA..CBU

L=320,MAKER OPTION,NO.1

 1
88689-89102

VZN120,85,9#..USA

L=320,DEALER OPTION,NO.1

 1
88689-89104

VZN90..USA

L=320,MAKER OPTION,NO.2

 1
88689-35010

RN12#,8#,90..EFI

L=200

 1
88689-89102

VZN90..USA

L=320,MAKER OPTION,NO.1

 1
88689-89105

VZN90..USA

DEALER OPTION

 1
88689-89105

VZN120,85,90..USA..CBU

DEALER OPTION

 1
88689-89104

VZN120,85,90..USA..CBU

L=320,MAKER OPTION,NO.2

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-89104

VZN85,9#..USA

L=320,DEALER OPTION,NO.2

 1
88689-89102

VZN120,85,90..USA..CBU

L=320,DEALER OPTION,NO.1

 1
88689-89104

VZN120,85,9#..USA

L=320,DEALER OPTION,NO.2

 1
88689-89104

VZN120,85,90..USA..CBU

L=320,DEALER OPTION,NO.1

 1
88689-89102

VZN85,9#..USA

L=320,DEALER OPTION,NO.1

 1
88689-89102

VZN120,85,90..USA..CBU

L=320,MAKER OPTION,NO.1

 1
88689-89102

VZN120,85,9#..USA

L=320,DEALER OPTION,NO.1

 1
88689-89104

VZN90..USA

L=320,MAKER OPTION,NO.2

 1
88689-35010

RN12#,8#,90..EFI

L=200

 1
88689-89102

VZN90..USA

L=320,MAKER OPTION,NO.1

 1
88689-89105

VZN90..USA

DEALER OPTION

 1
88689-89105

VZN120,85,90..USA..CBU

DEALER OPTION

 1
88689-89104

VZN120,85,90..USA..CBU

L=320,MAKER OPTION,NO.2

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-89104

VZN85,9#..USA

L=320,DEALER OPTION,NO.2

 1
88689-89102

VZN120,85,90..USA..CBU

L=320,DEALER OPTION,NO.1

 1
88689-89104

VZN120,85,9#..USA

L=320,DEALER OPTION,NO.2

 1
88689-89104

VZN120,85,90..USA..CBU

L=320,DEALER OPTION,NO.1

 1
88689-89102

VZN85,9#..USA

L=320,DEALER OPTION,NO.1

 1
88689-89102

VZN120,85,90..USA..CBU

L=320,MAKER OPTION,NO.1

 1
88689-89102

VZN120,85,9#..USA

L=320,DEALER OPTION,NO.1

 1
88689-89104

VZN90..USA

L=320,MAKER OPTION,NO.2

 1
88689-35010

RN12#,8#,90..EFI

L=200

 1
88689-89102

VZN90..USA

L=320,MAKER OPTION,NO.1

 1
88689-89105

VZN90..USA

DEALER OPTION

 1
88689-89105

VZN120,85,90..USA..CBU

DEALER OPTION

 1
88689-89104

VZN120,85,90..USA..CBU

L=320,MAKER OPTION,NO.2

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89135

VZN120,85,9#

 1
88690-89135

VZN90

 1
88690-89132

RN12#,8#,90..EFI

 1
88690-89135

VZN120,85,90

 1
88690-89135

VZN120,85,9#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89135

VZN120,85,9#

 1
88690-89135

VZN90

 1
88690-89132

RN12#,8#,90..EFI

 1
88690-89135

VZN120,85,90

 1
88690-89135

VZN120,85,9#

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

RN8#,90..EFI..USA

*H,L=300

 1
90999-92002

RN8#,90..(4HC,5F)..EFI..USA

*H,L=300,MAKER OPTION

 1
95411-10125

RN8#,90

*H,L=250,MARK=#1

 1
90999-92002

VZN120,85,9#

*H,L=300

 1
90999-92002

VZN90

*H,L=300

 1
90999-92002

RN8#,90

*H,L=300

 1
95411-10026

RN8#,90

*H,L=260,MARK=#0

 1
90999-92002

VZN90

*H,L=300

 2
95411-10026

RN8#,90..(4HC,5F)..EFI..USA

*H,L=260,MARK=#0,DEALER OPTION

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

RN8#,90..EFI..USA

*H,L=300

 1
90999-92002

RN8#,90..(4HC,5F)..EFI..USA

*H,L=300,MAKER OPTION

 1
95411-10125

RN8#,90

*H,L=250,MARK=#1

 1
90999-92002

VZN120,85,9#

*H,L=300

 1
90999-92002

VZN90

*H,L=300

 1
90999-92002

RN8#,90

*H,L=300

 1
95411-10026

RN8#,90

*H,L=260,MARK=#0

 1
90999-92002

VZN90

*H,L=300

 2
95411-10026

RN8#,90..(4HC,5F)..EFI..USA

*H,L=260,MARK=#0,DEALER OPTION

 1
Common parts
82711-12200
82711-35060
90091-20609
90159-60129
90339-05012
90467-11085
90467-12058
90467-13138
91651-F0612
91656-F0616
93319-G5008
96132-30400
96132-51100

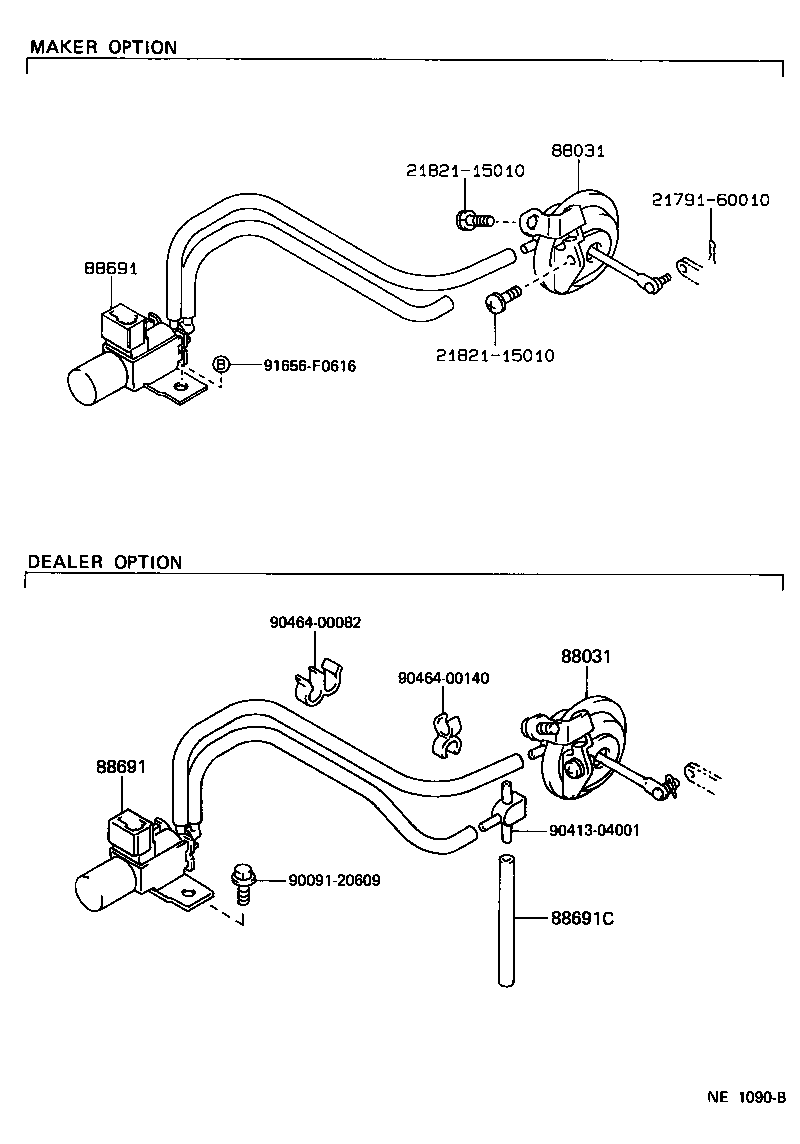

(8808- )RN120,8#,90,VZN85,9#..JPP..EFI

Click highlighted areas on diagram

diagram 2179160010 2182115010 2182115010 88031 88031 88691 88691 88691C 9009120609 9041304001 9046400082 9046400140 91656F0616
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89135

VZN120,85,9#

 1
88690-89135

VZN90

 1
88690-89132

RN12#,8#,90..EFI

 1
88690-89135

VZN120,85,90

 1
88690-89135

VZN120,85,9#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89135

VZN120,85,9#

 1
88690-89135

VZN90

 1
88690-89132

RN12#,8#,90..EFI

 1
88690-89135

VZN120,85,90

 1
88690-89135

VZN120,85,9#

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

RN8#,90..EFI..USA

*H,L=300

 1
90999-92002

RN8#,90..(4HC,5F)..EFI..USA

*H,L=300,MAKER OPTION

 1
95411-10125

RN8#,90

*H,L=250,MARK=#1

 1
90999-92002

VZN120,85,9#

*H,L=300

 1
90999-92002

VZN90

*H,L=300

 1
90999-92002

RN8#,90

*H,L=300

 1
95411-10026

RN8#,90

*H,L=260,MARK=#0

 1
90999-92002

VZN90

*H,L=300

 2
95411-10026

RN8#,90..(4HC,5F)..EFI..USA

*H,L=260,MARK=#0,DEALER OPTION

 1
Common parts
21791-60010
21821-15010
90091-20609
90413-04001
90464-00082
90464-00140
91656-F0616
