VZN90L-CRSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP

Click highlighted areas on diagram

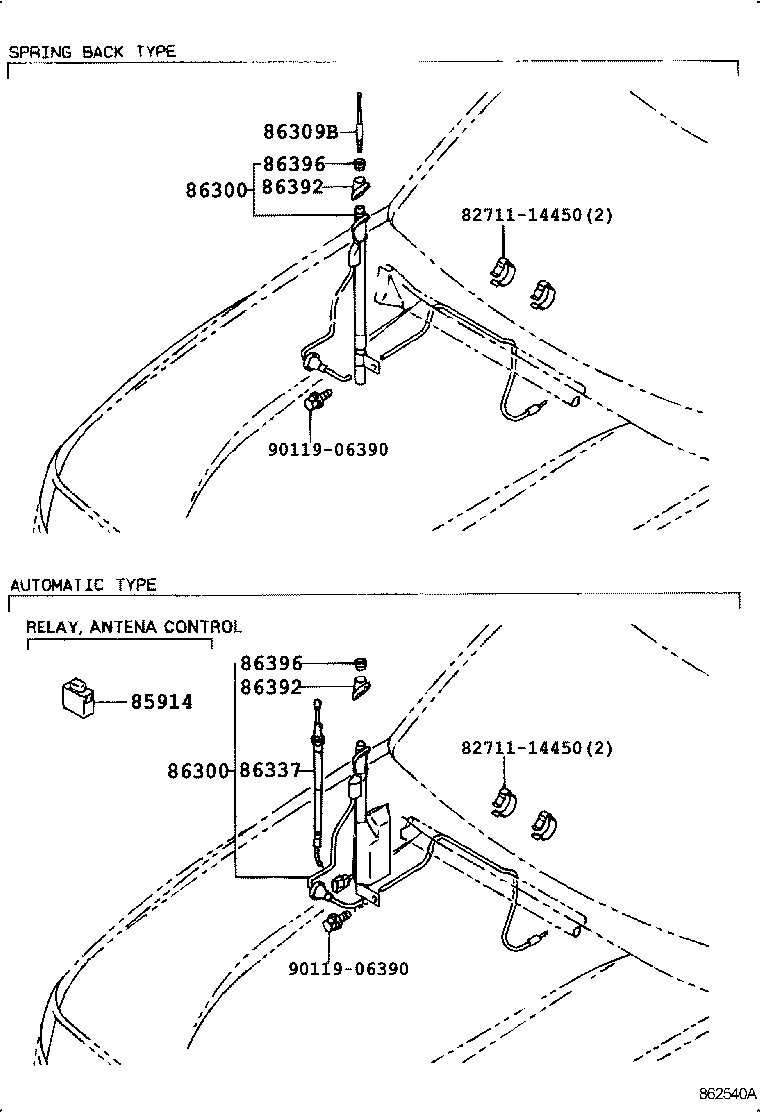

diagram 8271114450 8271114450 85914 86300 86300 86309B 86337 86392 86392 86396 86396 9011906390 9011906390
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-89124

RN12#,8#,90,VZN120,85,9#

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-89124

RN12#,8#,90,VZN120,85,9#

 1
86309B - POLE SUB-ASSY, PULL TOP ANTENNA
86309-32011

RN12#,8#,90,VZN120,85,9#

 1
86392 - ORNAMENT, ANTENNA
86392-89105

RN12#,8#,90,VZN120,85,9#

 1
86392 - ORNAMENT, ANTENNA
86392-89105

RN12#,8#,90,VZN120,85,9#

 1
86396 - NUT, ANTENNA
86396-16020

RN12#,8#,90,VZN120,85,9#

 1
86396 - NUT, ANTENNA
86396-16020

RN12#,8#,90,VZN120,85,9#

 1
Common parts
82711-14450
90119-06390

(8808- )JPP

Click highlighted areas on diagram

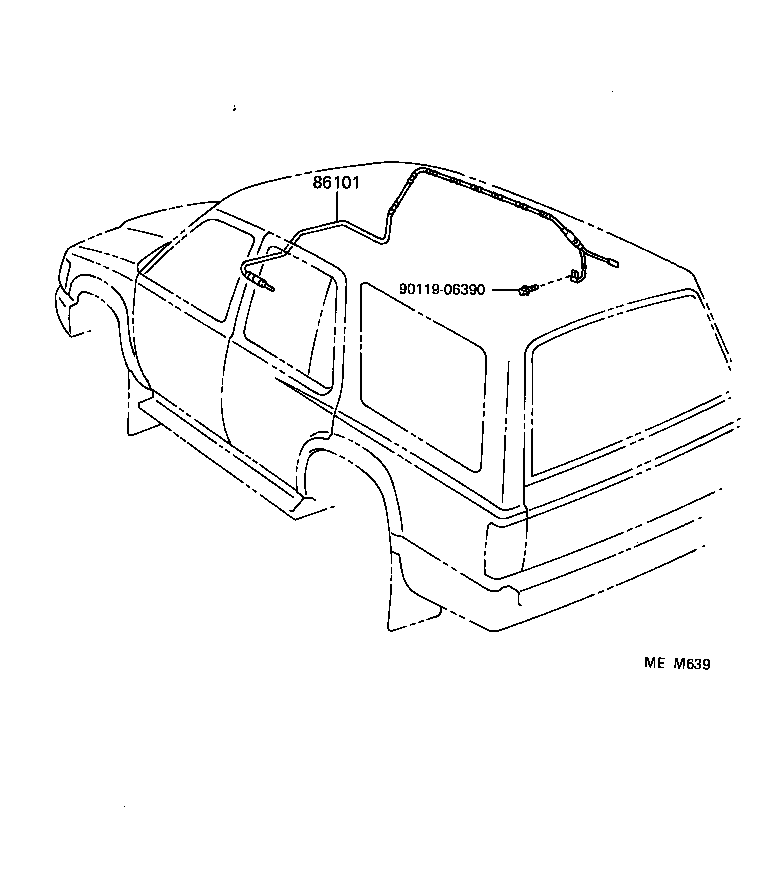

diagram 86101 9011906390
Part # Description Qty Price
Common parts
90119-06390
