VZN90L-CRSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8808-9511)JPP

Click highlighted areas on diagram

diagram 04477 31478D 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908744 9017910016 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160820 9411040800 9411040800 9411040800 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price

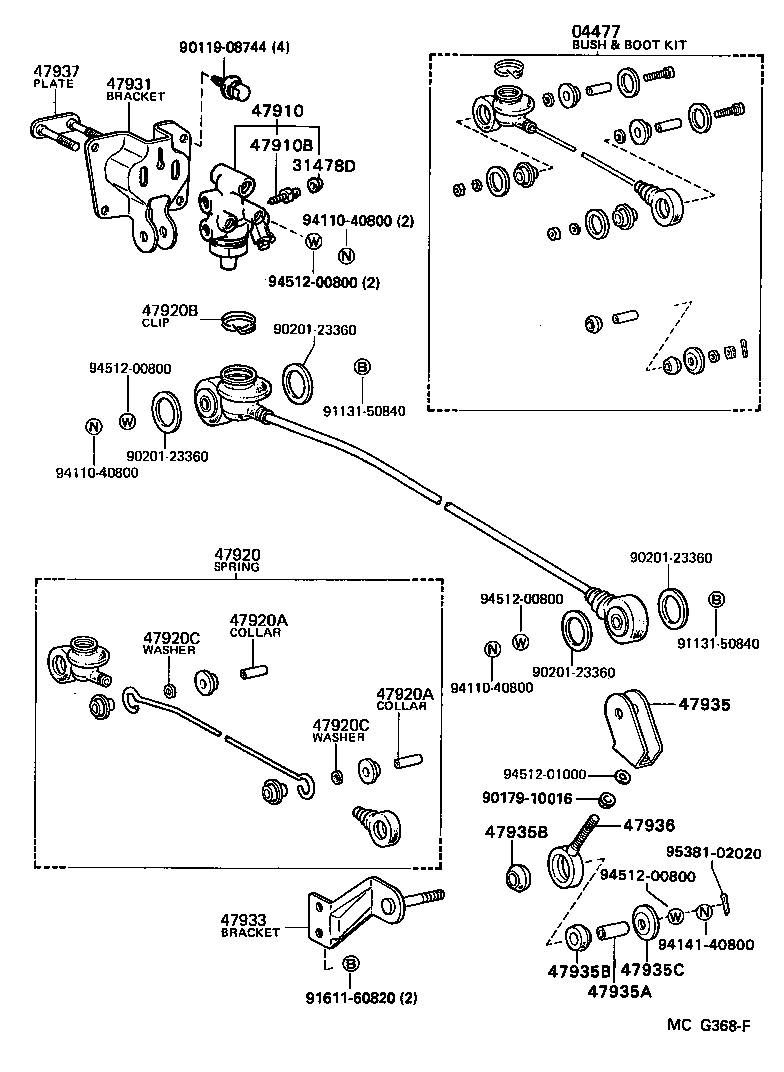

04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

RN12#,8#,90,VZN120,85,9#

 1
04477-60010

RN8#,90,VZN85,9#

 1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010

RN12#,8#,90,VZN120,85,9#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-35120

RN8#,90,VZN85,90..ST

 1
47910-35120

VZN90..DLX;RN8#,90,VZN85..ST

 1
47910-35230

RN8#,90,VZN90..DLX,STD

W(2WHEEL*66)

 1
47910-35120

RN8#,90,VZN90..DLX,STD

 1
47910-35121

RN8#,90,VZN90..DLX,STD

 1
47910-35231

RN8#,90,VZN90..DLX,STD

W(2WHEEL*66)

 1
47910-35270

RN8#,90,VZN90

 1
47920 - SPRING ASSY, LOAD SENSING
47920-35040

VZN85..WT;RN8#,90,VZN9#;VZN85..HLF..DLX

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

RN12#,8#,90,VZN120,85,9#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

RN12#,8#,90,VZN120,85,9#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

RN12#,8#,90,VZN120,85,9#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

RN12#,8#,90,VZN120,85,9#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

RN12#,8#,90,VZN120,85,9#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-35080

RN8#,90,VZN85,9#

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-35030

VZN85..WT;RN8#,90,VZN9#;VZN85..HLF..DLX

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35020

RN12#,8#,90,VZN120,85,9#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

RN12#,8#,90,VZN120,85,9#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

RN12#,8#,90,VZN120,85,9#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

RN12#,8#,90,VZN120,85,9#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062

RN12#,8#,90,VZN120,85,9#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35040

RN12#,8#,90,VZN120,85,9#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

RN8#,90,VZN85,9#

 1
Common parts
90119-08744
90179-10016
90201-23360
91131-50840
91611-60820
94110-40800
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 1 OF 3(8808-9511)RN8#,90,VZN85,9#..JPP

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47315 47316A 47321 47321D 47322 47323 47324 47325 47342 47344 47351 47352 47353 47353B 47353B 47371A 47371C 47371D 47372 47375 47393 9011908671 9011908744 9011908744 9011908744 9011908744 9011908744 9046808034 9046808034 9046808034 9046808034 9046808034 9094901457 9094901459 9094901477 9094901478 9161160614 9161160614 9161160814 91611F0812 91611F0812 9622134905
Part # Description Qty Price

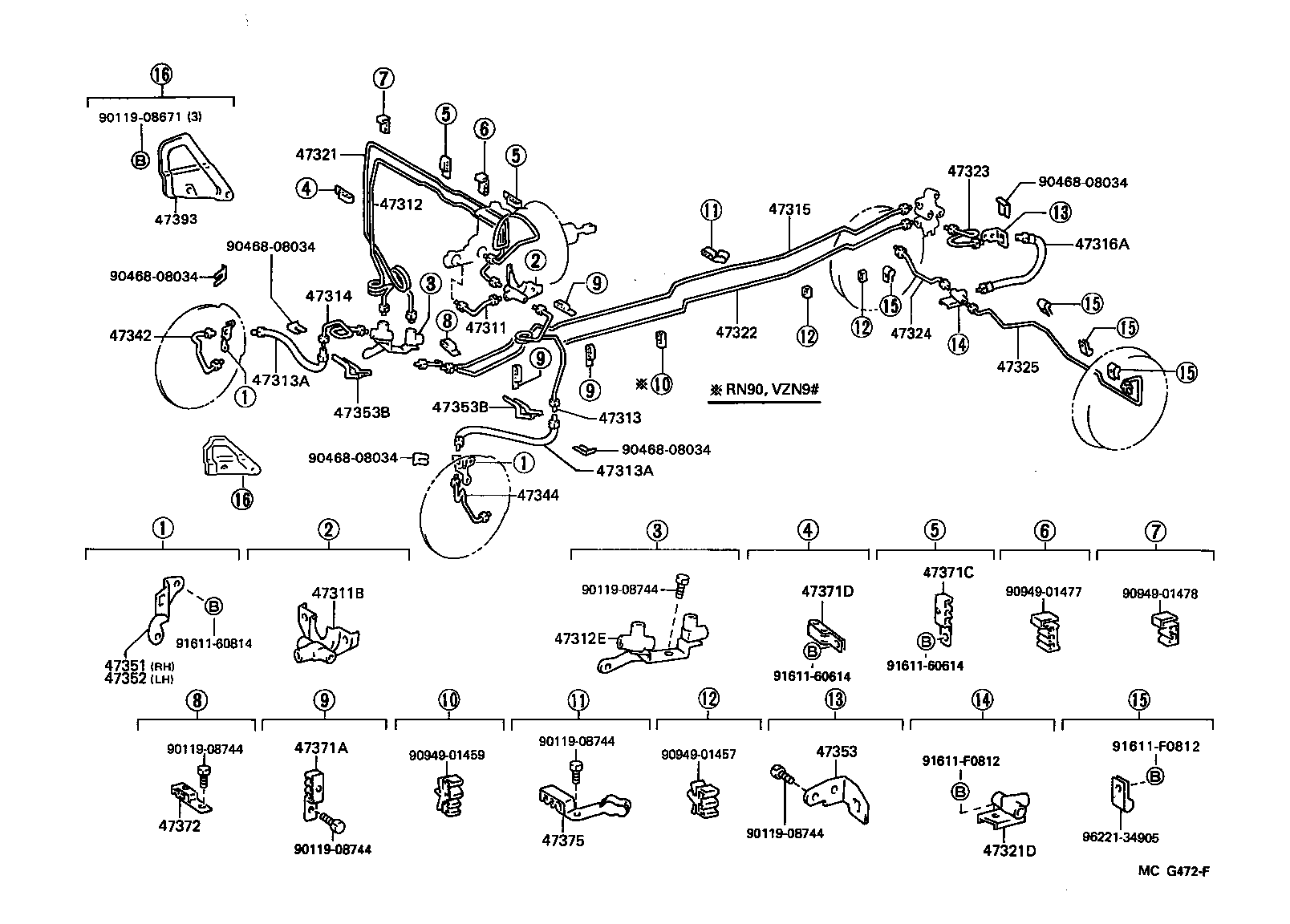

47311 - TUBE, FRONT BRAKE, NO.1
47311-35440

RN12#,8#,90,VZN120,85,9#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

RN12#,8#,90,VZN120,85,9#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D060

VZN85,9#

 1
47312-35880

RN8#,90..EFI

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90415-10006

RN8#,90,VZN85,9#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35610

RN85,90..EFI;RN80..4F,4HC;RN80..5F..EFI

 1
47313-35600

VZN85,9#;RN8#,90..5F..CBR

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02581

RN8#,90,VZN85,9#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02581

RN8#,90,VZN85,9#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35170

RN8#,90,VZN85,9#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35230

VZN90

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34206

RN8#,90,VZN85,9#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35570

VZN85,9#

 1
47321-35610

RN8#,90..EFI

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10198

RN8#,90,VZN85,9#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35580

VZN90

 1
47322-35580

VZN90..DLX

 1
47322-35590

VZN90..DLX

W(2WHEEL*66)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35100

RN8#,90,VZN85,9#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35180

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35190

RN8#,90,VZN85,90..HLF..(CBU,IV3)

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35110

RN8#,90,VZN85,9#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35110

RN8#,90,VZN85,9#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35160

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35180

RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3)

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47352-35200

RN8#,90,VZN85,9#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-35070

RN8#,90,VZN85,9#

LH

 1
47353-35060

RN8#,90,VZN85,9#

RH

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-35070

RN8#,90,VZN85,9#

LH

 1
47353-35060

RN8#,90,VZN85,9#

RH

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35080

RN8#,90,VZN85,9#..EFI

 3
47371C - CLAMP, BRAKE TUBE, NO.7
47371-35130

RN12#,8#,90,VZN120,85,9#

 2
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080

RN12#,8#,90,VZN120,85,9#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030

VZN90..DLX;RN12#,8#,90,VZN120,85,95

 1
47372-35030

RN8#,90,VZN9#..DLX,STD

W(2WHEEL*66)

 2
47372-35030

RN12#,8#,90,VZN120,85,9#

 1
47372-35030

RN8#,90,VZN85,9#..DLX,STD

W(2WHEEL*66)

 2
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35090

RN8#,90,VZN85,9#..EFI

 1
Common parts
90119-08671
90119-08744
90468-08034
90949-01457
90949-01459
90949-01477
90949-01478
91611-60614
91611-60814
91611-F0812
96221-34905

ILLUST NO. 2 OF 3(8808-9511)JPP

Click highlighted areas on diagram

W(ABS)

diagram 44510 44510 44545D 44545D 44545D 44546A 44546A 44546A 44551 44551A 44590 44591 44593 9011906547 9011908667 9017905003 9017906074 9017906074 9017906074 9161160812 9161160814 9331915008
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-35040

RN8#,90

 1
44510-35020

VZN85,9#

 1
44510 - ACTUATOR ASSY, BRAKE
44510-35040

RN8#,90

 1
44510-35020

VZN85,9#

 1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-35020

RN8#,90,VZN85,9#

 1
Common parts
90119-06547
90119-08667
90179-05003
90179-06074
91611-60812
91611-60814
93319-15008
