VZN90L-CRPGEA3 (1988)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 1 OF 2(8808- )VZN120,85,9#..JPP..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-22020 |
RN12#,8#,90..ATM |
1 | ||
| 35501-30010 |
VZN120,85,9#..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-30020 |
VZN120,85,9#..ATM |
1 | ||
| 35505-22040 |
RN12#,8#,90..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
RN12#,8#,90,VZN120,85,9#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
VZN120,85,9#..ATM |
2 | ||
| 90311-11001 |
RN12#,8#,90..ATM |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
VZN120,85,9#..ATM |
2 | ||
| 90311-11001 |
RN12#,8#,90..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
RN12#,8#,90..ATM |
1 | ||
| 90560-20006 |
VZN120,85,9#..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-30020 |
VZN120,85,9#..ATM |
1 | ||
| 35556-26010 |
RN12#,8#,90..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
RN12#,8#,90,VZN120,85,9#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-30020 |
VZN120,85,9#..ATM |
1 | ||
| 35557-26010 |
RN12#,8#,90..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21002 |
VZN120,85,9#..ATM |
1 | ||
| 90508-25001 |
RN12#,8#,90..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-30070 |
VZN120,90..4FC |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-35020 |
RN12#,VZN120,90..4FC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-30010 |
VZN120,85,9#..ATM |
1 | ||
| 35595-40010 |
RN12#,8#,90..ATM |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 2(8808- )VZN120,85,9#..JPP..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-22021 |
RN12#,85,90..ATM..SR5 W(*CRC) |
1 | ||
| 35520-35090 |
RN12#,8#,90..ATM |
1 | ||
| 35520-35050 |
VZN120,85,9#..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
RN90..EFI..CND;RN8#,VZN85,9#..ATM |
1 | ||
| 35523A - CLAMP, THROTTLE CABLE, NO.1 | ||||
| 35523-35070 |
VZN120,85,9#..ATM |
1 | ||
| 35523-14062 |
RN12#,8#,90..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-35060 |
VZN120,85,9#..ATM |
1 | ||
| 35523-35010 |
RN12#,8#,90..ATM |
1 | ||
| Common parts | ||||
| 91611-60616 | ||||
| 91611-61016 | ||||
| 91611-F0814 | ||||
ILLUST NO. 1 OF 2(8808- )RN12#,8#,90..JPP..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-22020 |
RN12#,8#,90..ATM |
1 | ||
| 35501-30010 |
VZN120,85,9#..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-30020 |
VZN120,85,9#..ATM |
1 | ||
| 35505-22040 |
RN12#,8#,90..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
RN12#,8#,90,VZN120,85,9#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
VZN120,85,9#..ATM |
2 | ||
| 90311-11001 |
RN12#,8#,90..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
RN12#,8#,90..ATM |
1 | ||
| 90560-20006 |
VZN120,85,9#..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-30020 |
VZN120,85,9#..ATM |
1 | ||
| 35556-26010 |
RN12#,8#,90..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
RN12#,8#,90,VZN120,85,9#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-30020 |
VZN120,85,9#..ATM |
1 | ||
| 35557-26010 |
RN12#,8#,90..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21002 |
VZN120,85,9#..ATM |
1 | ||
| 90508-25001 |
RN12#,8#,90..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-30070 |
VZN120,90..4FC |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-35020 |
RN12#,VZN120,90..4FC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-30010 |
VZN120,85,9#..ATM |
1 | ||
| 35595-40010 |
RN12#,8#,90..ATM |
1 | ||
| Common parts | ||||
| 90101-06024 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||

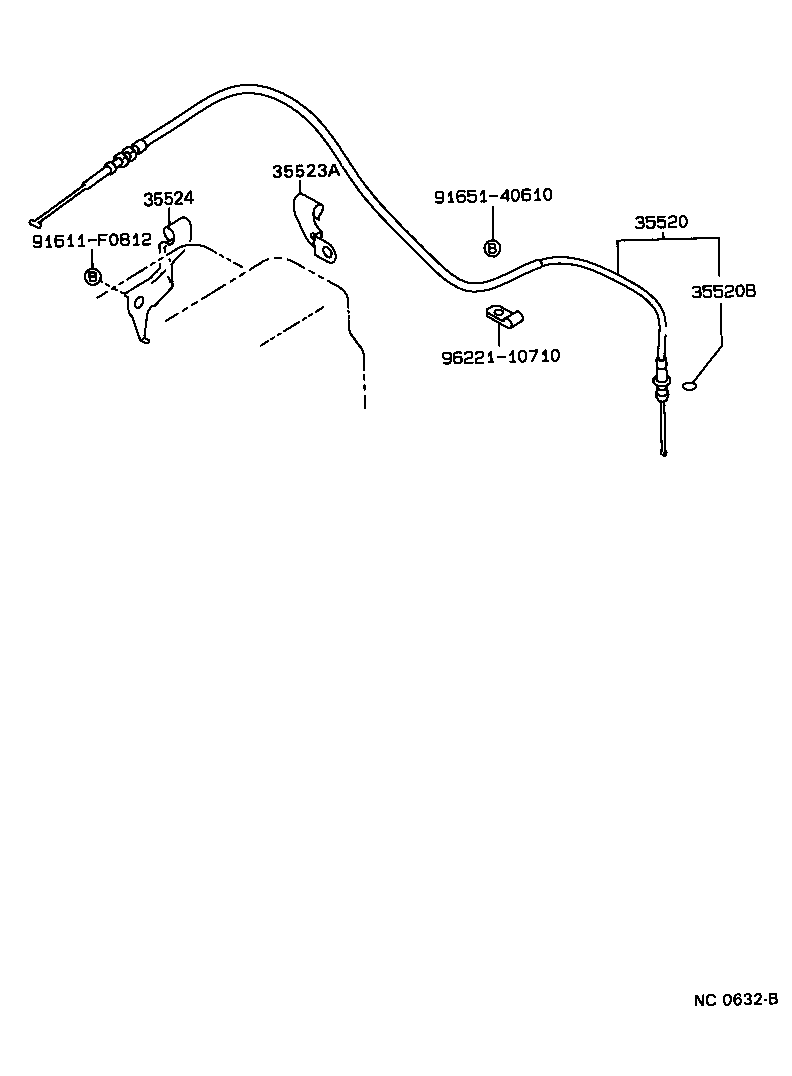

ILLUST NO. 2 OF 2(8808- )RN12#,8#,90..JPP..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-22021 |
RN12#,85,90..ATM..SR5 W(*CRC) |
1 | ||
| 35520-35090 |
RN12#,8#,90..ATM |
1 | ||
| 35520-35050 |
VZN120,85,9#..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
RN90..EFI..CND;RN8#,VZN85,9#..ATM |
1 | ||
| 35523A - CLAMP, THROTTLE CABLE, NO.1 | ||||
| 35523-35070 |
VZN120,85,9#..ATM |
1 | ||
| 35523-14062 |
RN12#,8#,90..ATM |
1 | ||
| 35524 - CLAMP, THROTTLE CABLE, NO.2 | ||||
| 35523-35060 |
VZN120,85,9#..ATM |
1 | ||
| 35523-35010 |
RN12#,8#,90..ATM |
1 | ||
| Common parts | ||||
| 91611-F0812 | ||||
| 91651-40610 | ||||
| 96221-10710 | ||||
