VZN90L-CRMDEK (1988)
Toyota 4-Runner Truck (Jpp)
Production
Aug 1988
-
Jan 1995
Engine
3VZE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )JPP..MTM

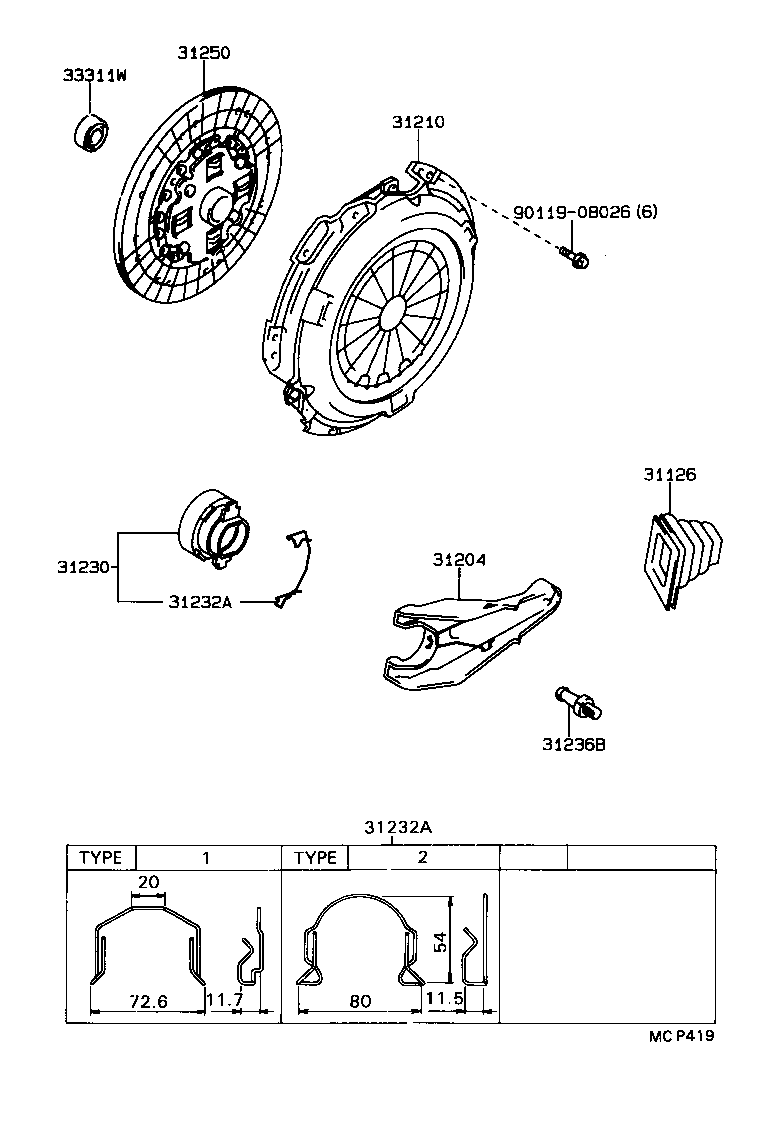

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-20060 |
RN121,8#,90,VZN85,9#..MTM |
1 | ||
| 31126-20060 |
RN8#,90,VZN85,9#..5F |
1 | ||
| 31126-34010 |
VZN90..R |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-35031 |
VZN85,9#..R |
1 | ||
| 31204-20071 |
RN121,8#,90..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35071 |
VZN85,9#..R |
1 | ||
| 31210-35110 |
RN121,8#,90..MTM |
1 | ||
| 31210-35071 |
VZN90..R |
1 | ||
| 31210-35070 |
VZN85,9#..R |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-35070 |
RN121,8#,90,VZN85,9#..MTM |
1 | ||
| 31230-35070 |
RN8#,90,VZN85,9#..5F |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-35030 |
RN8#,90,VZN85,9#..5F |
1 | ||
| 31232-35020 |
RN121,8#,90,VZN85,9#..MTM |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-35030 |
RN8#,90,VZN85,9#..5F |
1 | ||
| 31232-35020 |
RN121,8#,90,VZN85,9#..MTM |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-30060 |
RN121,8#,90..MTM |
1 | ||
| 31236-35030 |
VZN85,9#..R |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-35161 |
VZN85,9#..R |
1 | ||
| 31250-35160 |
VZN85,9#..R |
1 | ||
| 31250-35161 |
VZN90..R |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
RN8#,90,VZN90..5F |
1 | ||
| 90363-12002 |
RN121,8#,90,VZN85,9#..MTM |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
