VZN90L-CRMDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3VZE..VZN85,9#..JPP

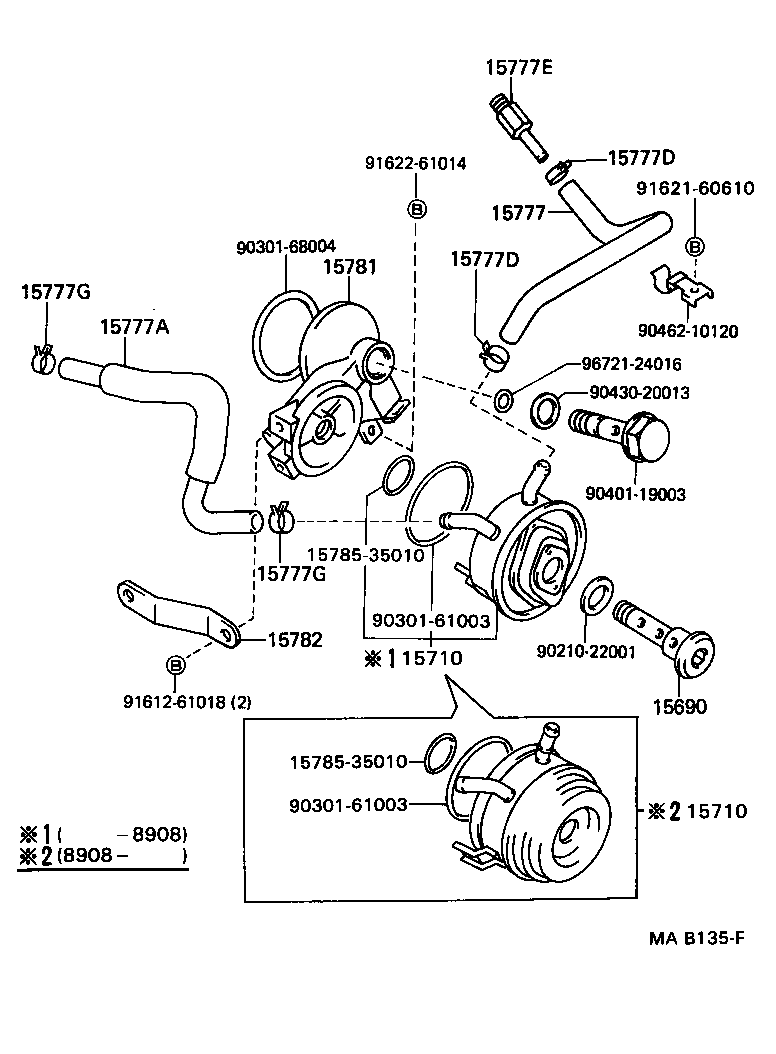

Click highlighted areas on diagram

diagram 15690 15710 15710 15777 15777A 15777D 15777D 15777E 15777G 15777G 15781 15782 1578535010 1578535010 9021022001 9030161003 9030161003 9030168004 9040119003 9043020013 9046210120 9161261018 9162160610 9162261014 9672124016
Part # Description Qty Price
15690 - VALVE ASSY, OIL COOLER RELIEF
15690-65020

3VZE..VZN120,85,9#

 1
15710 - COOLER ASSY, OIL
15710-65060

3VZE..VZN85,9#

 1
15710-65040

3VZE..VZN85,9#

 1
15710 - COOLER ASSY, OIL
15710-65060

3VZE..VZN85,9#

 1
15710-65040

3VZE..VZN85,9#

 1
15777 - HOSE, OIL COOLER
15777-65020

3VZE..VZN85,9#

 1
15777A - HOSE, OIL COOLER
15778-65020

3VZE..VZN85,9#

 1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-17005

3VZE..VZN120,85,9#

 2
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-17005

3VZE..VZN120,85,9#

 2
15777E - UNION
90404-53066

3VZE..VZN120,85,9#

 1
15777G - CLAMP OR CRIP, HOSE
90467-17005

3VZE..VZN120,85,9#

 2
15777G - CLAMP OR CRIP, HOSE
90467-17005

3VZE..VZN120,85,9#

 2
15781 - BRACKET, OIL COOLER, NO.1
15781-65010

3VZE..VZN85,9#

 1
15781-65011

3VZE..VZN85,9#

 1
15782 - BRACKET, OIL COOLER, NO.2
15782-65010

3VZE..VZN85,9#

 1
15782-65011

3VZE..VZN85,9#

 1
Common parts
15785-35010
90210-22001
90301-61003
90301-68004
90401-19003
90430-20013
90462-10120
91612-61018
91621-60610
91622-61014
96721-24016
