VZN85L-TRSREA6 (1988)
Toyota 4-Runner Truck (Jpp)
Production
Aug 1988
-
Aug 1990
Engine
3VZE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

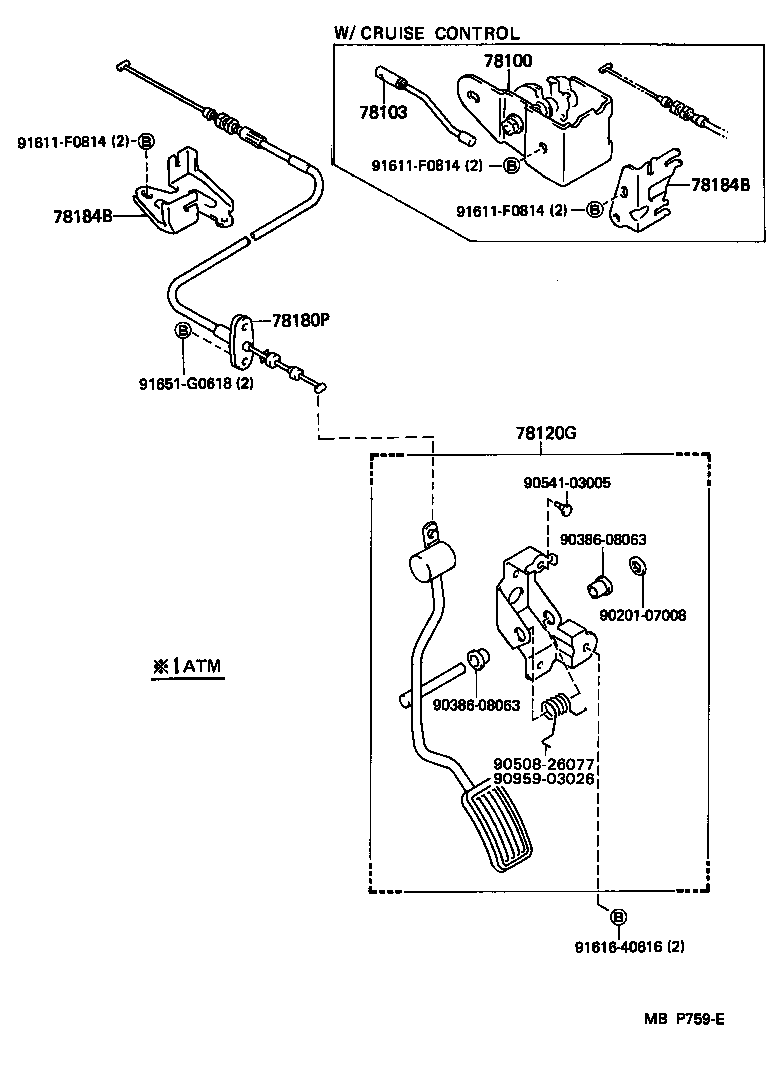

(8808- )RN12#,8#,90..JPP..EFI
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89144 |
RN12#,8#,90,VZN120,85,9#..ATM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-89160 |
VZN120,85,9# |
1 | ||
| 78180-89154 |
RN12#,8#,90..EFI |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-35040 |
RN12#,8#,90..EFI |
1 | ||
| 78184-35060 |
VZN120,85,9# |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-35040 |
RN12#,8#,90..EFI |
1 | ||
| 78184-35060 |
VZN120,85,9# |
1 | ||
| Common parts | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90508-26077 | ||||
| 90541-03005 | ||||
| 90959-03026 | ||||
| 91611-F0814 | ||||
| 91616-40616 | ||||
| 91651-G0618 | ||||

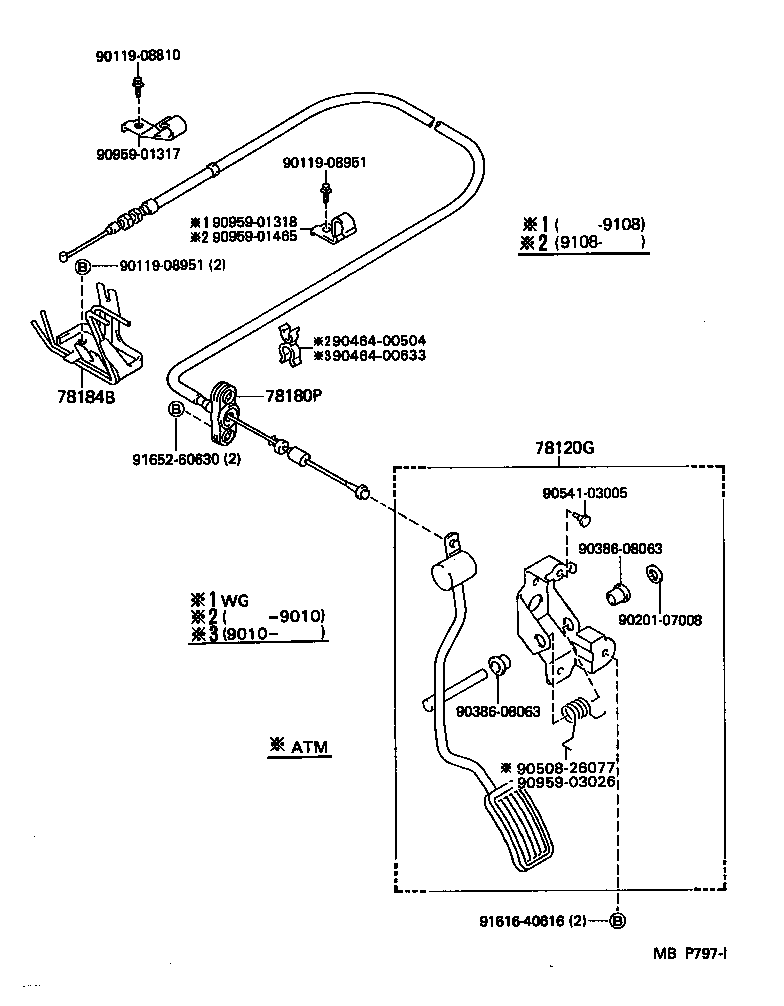

(8808- )VZN120,85,9#..JPP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-89144 |
RN12#,8#,90,VZN120,85,9#..ATM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-89160 |
VZN120,85,9# |
1 | ||
| 78180-89154 |
RN12#,8#,90..EFI |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-35040 |
RN12#,8#,90..EFI |
1 | ||
| 78184-35060 |
VZN120,85,9# |
1 | ||
| Common parts | ||||
| 90119-08810 | ||||
| 90119-08951 | ||||
| 90201-07008 | ||||
| 90386-08063 | ||||
| 90464-00504 | ||||
| 90464-00633 | ||||
| 90508-26077 | ||||
| 90541-03005 | ||||
| 90959-01317 | ||||
| 90959-01318 | ||||
| 90959-01465 | ||||
| 90959-03026 | ||||
| 91616-40616 | ||||
| 91652-60630 | ||||
