VZN85L-TRSREA6 (1988)
Toyota 4-Runner Truck (Jpp)
Production
Aug 1988
-
Aug 1990
Engine
3VZE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )JPP..R

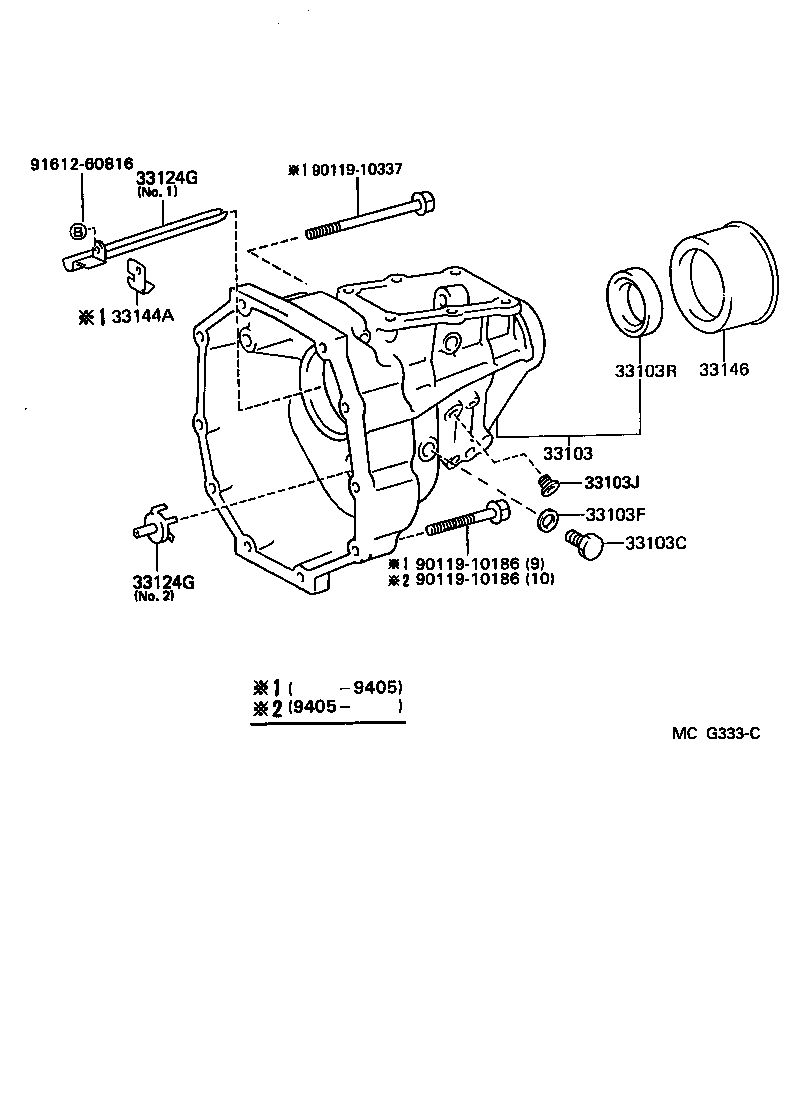

Click highlighted areas on diagram
R150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-14060 |
VZN85,9#..R |
1 | ||
| 33103C - PLUG, NO.1(FOR EXTENSION HOUSING) | ||||
| 90341-18006 |
VZN85,9#..R |
1 | ||
| 33103F - GASKET(FOR EXTENSION HOUSING PLUG NO.1) | ||||
| 90430-18008 |
VZN85,9#..R |
1 | ||
| 33103J - PLUG, TIGHT(FOR EXTENSION HOUSING) | ||||
| 96411-41800 |
VZN85,9#..R |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-40001 |
VZN85,9#..R |
1 | ||
| 33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING) | ||||
| 33124-36010 |
VZN85,9#..R NO.2 |
1 | ||
| 33124-35050 |
VZN85,9#..R NO.1 |
1 | ||
| 33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING) | ||||
| 33124-36010 |
VZN85,9#..R NO.2 |
1 | ||
| 33124-35050 |
VZN85,9#..R NO.1 |
1 | ||
| 33144A - DEFLECTOR, EXTENSION HOUSING OIL(MTM) | ||||
| 33144-14010 |
VZN85,9#..R |
1 | ||
| Common parts | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 91612-60816 | ||||
