VZN85L-TRSREA6 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3VZE..JPP

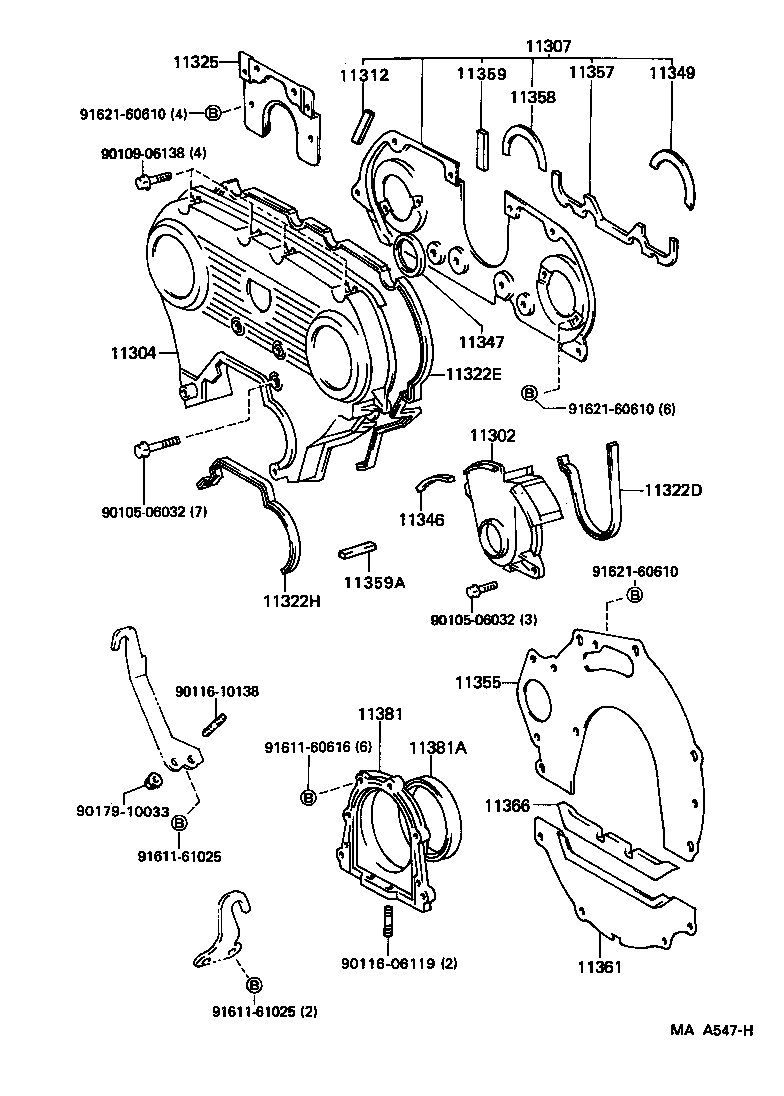

Click highlighted areas on diagram

diagram 11302 11304 11307 11312 11322D 11322E 11322H 11325 11346 11347 11349 11355 11357 11358 11359 11359A 11361 11366 11381 11381A 9010506032 9010506032 9010906138 9011606119 9011610138 9017910033 9161160616 9161161025 9161161025 9162160610 9162160610 9162160610
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-65010

3VZE..VZN120,85,9#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-65010

3VZE..VZN120,85,9#

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-65010

3VZE..VZN120,85,9#

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-65011

3VZE..VZN120,85,9#

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-65010

3VZE..VZN120,85,9#

 1
11322H - GASKET, TIMING BELT COVER, NO.3
11319-65010

3VZE..VZN120,85,9#

 1
11325 - COVER, TIMING BELT, NO.4
11325-65010

3VZE..VZN120,85,9#

 1
11346 - GASKET, TIMING BELT COVER, NO.4
11346-65010

3VZE..VZN120,85,9#

 1
11347 - GASKET, TIMING BELT COVER, NO.5
11347-65010

3VZE..VZN120,85,9#

 1
11349 - GASKET, TIMING BELT COVER, NO.9
11349-65020

3VZE..VZN120,85,9#

 1
11355 - PLATE, REAR END
11355-65010

3VZE..VZN120,85,9#

 1
11357 - GASKET, TIMING BELT COVER, NO.6
11357-65010

3VZE..VZN120,85,9#

 1
11358 - GASKET,TIMING BELT COVER, NO.7
11358-65010

3VZE..VZN120,85,9#

 1
11359 - GASKET, TIMING BELT COVER, NO.8
11359-65010

3VZE..VZN120,85,9#

 2
11359A - GASKET, TIMING BELT COVER, NO.8
11359-65010

3VZE..VZN120,85,9#

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-65010

3VZE..VZN120,85,9#

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
11366-65010

3VZE..VZN120,85,9#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-62010

3VZE..VZN120,85,9#

 1
11381A - SEAL, ENGINE REAR OIL
90311-92003

3VZE..VZN120,85,9#

 1
Common parts
90105-06032
90109-06138
90116-06119
90116-10138
90179-10033
91611-60616
91611-61025
91621-60610
