VZN85L-TRSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3VZE..JPP

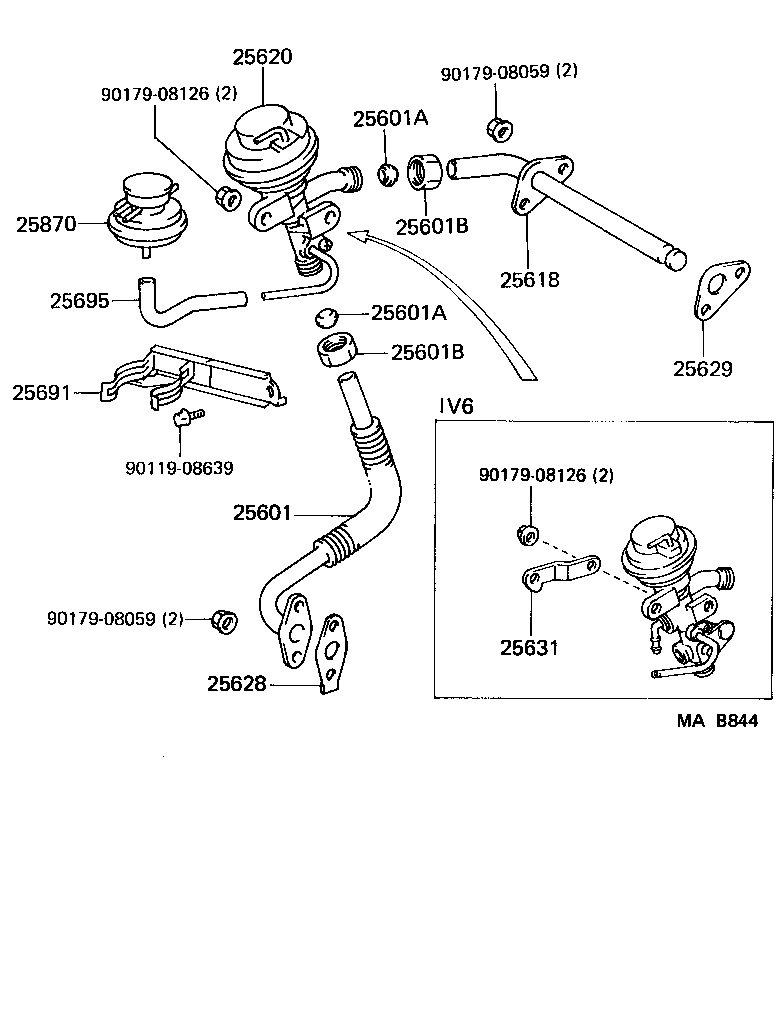

Click highlighted areas on diagram

diagram 25601 25601A 25601A 25601B 25601B 25618 25620 25628 25629 25631 25691 25695 25870 9011908639 9017908059 9017908059 9017908126 9017908126
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-65010

3VZE..VZN120,85,90..CBU,IV3

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16001

3VZE..VZN120,85,9#

 2
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16001

3VZE..VZN120,85,9#

 2
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22005

3VZE..VZN120,85,9#

 2
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22005

3VZE..VZN120,85,9#

 2
25618 - INLET, EGR
25618-65010

3VZE..VZN120,85,9#

 1
25620 - VALVE ASSY, EGR
25620-65030

3VZE..VZN85,90..CBU,IV3

 1
25628 - GASKET, EGR INLET
25628-65010

3VZE..VZN120,85,9#

 1
25629 - GASKET, EGR VALVE ADAPTER
25629-65010

3VZE..VZN120,85,9#

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-65010

3VZE..VZN120,85,9#

 1
25695 - HOSE, EGR VACUUM MODULATOR
25695-65010

3VZE..VZN120,85,9#

 1
25870 - VALVE ASSY, EGR VACUUM MODULATOR
25870-65010

3VZE..VZN120,85,9#

 1
Common parts
90119-08639
90179-08059
90179-08126
