VZN85L-TRSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9108)3VZE..JPP

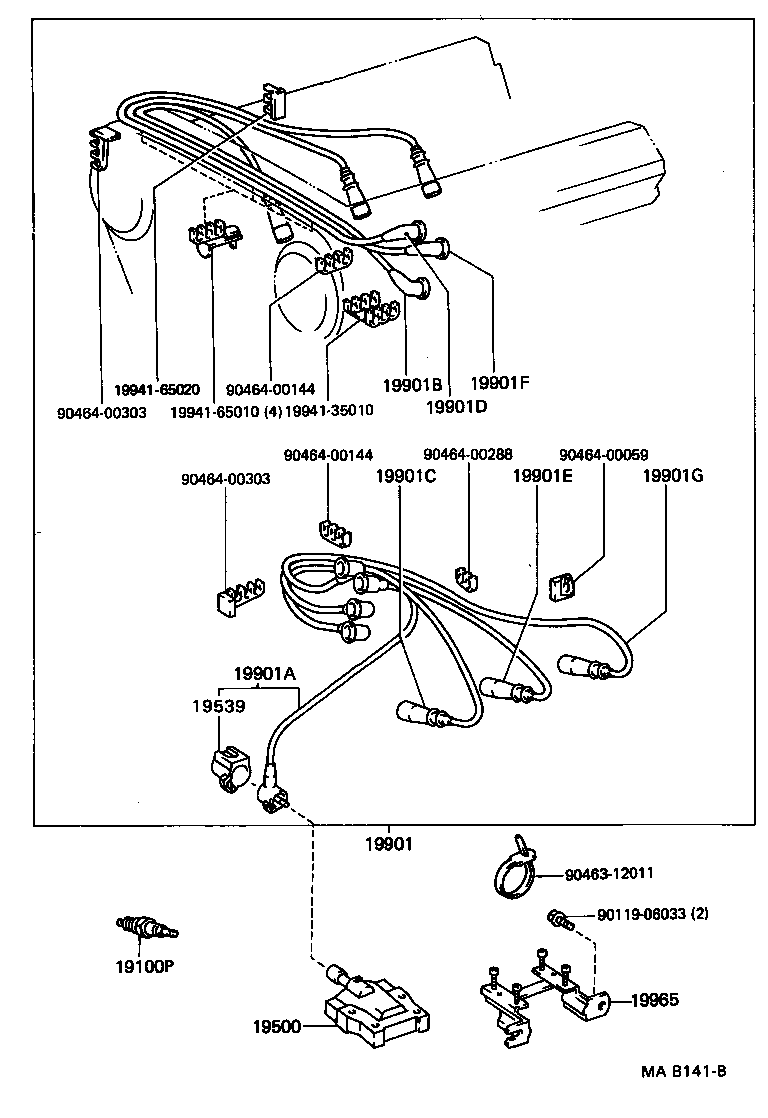

Click highlighted areas on diagram

diagram 19100P 19500 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 1994135010 1994165010 1994165020 19965 9011906033 9046312011 9046400059 9046400144 9046400144 9046400288 9046400303 9046400303
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01176

3VZE..VZN120,85,9#

K16R-U

 6
19500 - COIL ASSY, IGNITION
90919-02185

3VZE..VZN120,85,9#

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-65010

3VZE..VZN120,85,9#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21453

3VZE..VZN120,85,9#

 1
90919-21430

3VZE..VZN85,9#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12761

3VZE..VZN85,9#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12762

3VZE..VZN85,9#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12763

3VZE..VZN85,9#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12764

3VZE..VZN85,9#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12765

3VZE..VZN85,9#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12766

3VZE..VZN85,9#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03112

3VZE..VZN120,85,9#

 1
Common parts
19941-35010
19941-65010
19941-65020
90119-06033
90463-12011
90464-00059
90464-00144
90464-00288
90464-00303
