VZN85L-TRMDEA3 (1988)
Toyota 4-Runner Truck (Jpp)

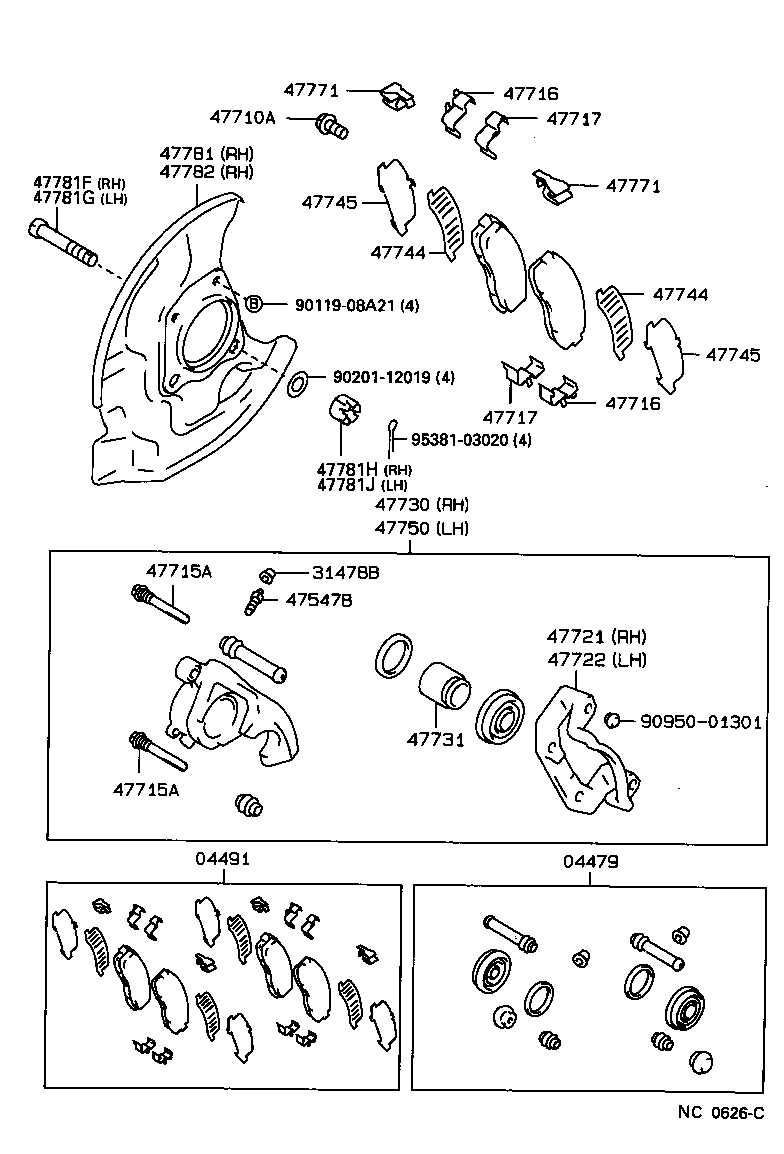

ILLUST NO. 2 OF 2(8808-9511)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-35020 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-35010 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
1 | ||
ILLUST NO. 1 OF 2(8808-9511)JPP..HLF..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-22020 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-22280 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
1 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-35020 |
RN8#,90,VZN85,90..HLF..(CBU,IV3) (J) |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12058 |
RN8#,90,VZN85,9# *12-1.25PX31-20 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22010 |
RN8#,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22010 |
RN8#,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-35010 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-35010 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-35010 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-35010 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-35020 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) (J) |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-35020 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) (J) |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-35050 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) (J) |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35020 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-35030 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-35030 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-35030 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-35030 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-35050 |
RN80..5F..CBR;RN80..DLX..EFI;RN80..EFI..CND;RN85,90,VZN85,90..HLF..(CBU,IV3) (J) |
1 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-22030 |
RN8#,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-22030 |
RN8#,90,VZN85,90..HLF..(CBU,IV3) |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-35030 |
RN8#,90,VZN85,90..HLF..(CBU,IV3) |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90102-12011 |
RN8#,90,VZN85,9# NO.2 |
1 | ||
| 90102-12006 |
RN8#,90,VZN85,9# NO.1 |
1 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90102-12011 |
RN8#,90,VZN85,9# NO.2 |
1 | ||
| 90102-12006 |
RN8#,90,VZN85,9# NO.1 |
1 | ||
| 47781H - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90171-12006 |
RN8#,90,VZN85,9# |
2 | ||
| 47781J - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90171-12006 |
RN8#,90,VZN85,9# |
2 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-35030 |
RN8#,90,VZN85,90..HLF..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90119-08A21 | ||||
| 90201-12019 | ||||
| 90950-01301 | ||||
| 95381-03020 | ||||
