VZN85L-TRMDEA (1988)
Toyota 4-Runner Truck (Jpp)

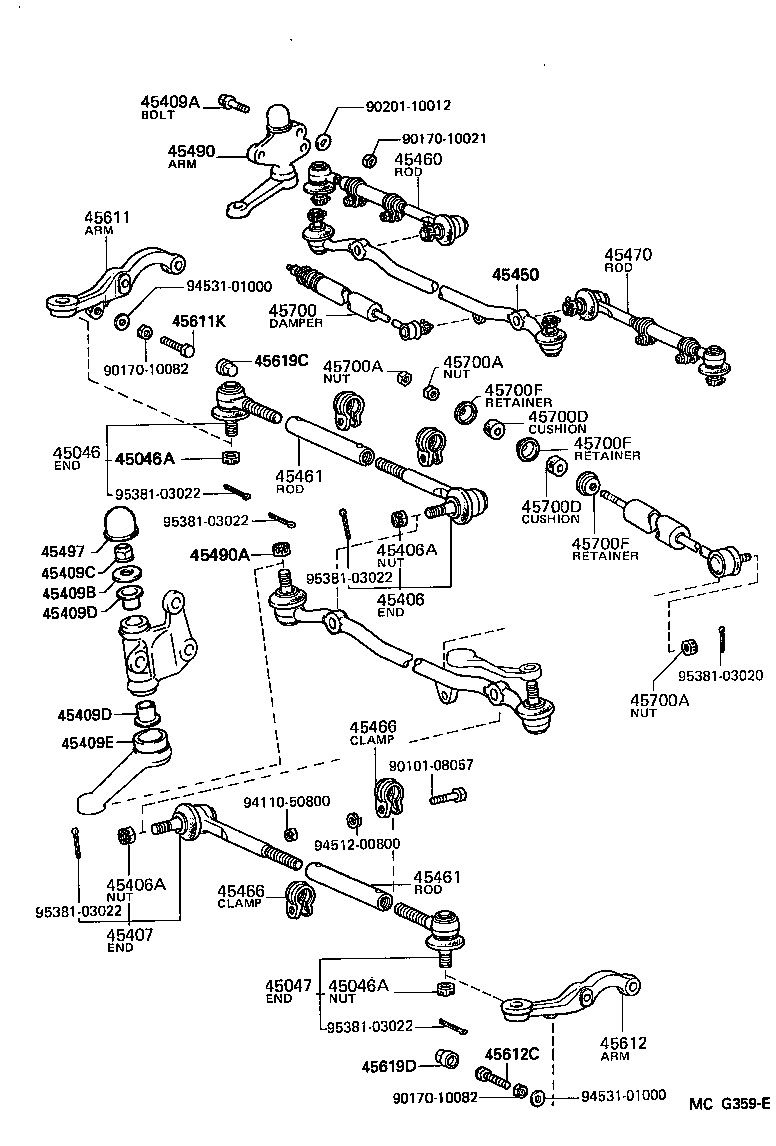

ILLUST NO. 1 OF 3(8808- )RN8#,90,VZN85,9#..JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39215 |
RN8#,90,VZN85,9# |
1 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39215 |
RN8#,90,VZN85,9# |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39155 |
RN8#,90,VZN85,9# |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
RN12#,8#,90,VZN120,85,9# |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
RN12#,8#,90,VZN120,85,9# |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39155 |
RN8#,90,VZN85,9# |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90101-12153 |
RN8#,90,VZN85,9# *12-1.25PX35-26 |
1 | ||
| 90101-12152 |
RN8#,90,VZN85,9# *12-1.25PX95-25 |
2 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14010 |
RN8#,90,VZN85,9# |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-39175 |
RN8#,90,VZN85,9# |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39305 |
RN8#,90,VZN85,9# |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35020 |
RN8#,90,VZN85,9# |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35020 |
RN8#,90,VZN85,9# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
RN12#,8#,90,VZN120,85,9# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
RN12#,8#,90,VZN120,85,9# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39085 |
RN8#,90,VZN85,9# |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39315 |
RN8#,90,VZN85,9# |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 45497 - CAP, IDLER ARM BRACKET | ||||
| 45497-28010 |
RN8#,90,VZN85,9# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-35170 |
RN8#,90,VZN85,90..HLF..(CBU,IV3) |
1 | ||
| 45611K - BOLT(FOR STEERING KNUCKLE STOPPER RH) | ||||
| 90106-10032 |
RN8#,90,VZN85,9# |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-35190 |
RN8#,90,VZN85,90..HLF..(CBU,IV3) |
1 | ||
| 45612C - BOLT(FOR STEERING KNUCKLE STOPPER LH) | ||||
| 90106-10032 |
RN8#,90,VZN85,9# |
1 | ||
| 45619C - COVER, STEERING KNUCKLE STOPPER, RH | ||||
| 45619-14020 |
RN8#,90,VZN85,9# |
1 | ||
| 45619D - COVER, STEERING KNUCKLE STOPPER, LH | ||||
| 45619-14020 |
RN8#,90,VZN85,9# |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39035 |
RN8#,90,VZN85,9# |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
RN12#,8#,90,VZN120,85,9# TIE ROD X DAMPER |
1 | ||
| 94182-10800 |
RN8#,90,VZN85,9# HOUSING X DAMPER |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
RN12#,8#,90,VZN120,85,9# TIE ROD X DAMPER |
1 | ||
| 94182-10800 |
RN8#,90,VZN85,9# HOUSING X DAMPER |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12028 |
RN12#,8#,90,VZN120,85,9# TIE ROD X DAMPER |
1 | ||
| 94182-10800 |
RN8#,90,VZN85,9# HOUSING X DAMPER |
1 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01001 |
RN8#,90,VZN85,9# |
2 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01001 |
RN8#,90,VZN85,9# |
2 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02003 |
RN8#,90,VZN85,9# OD=28 |
2 | ||
| 90948-02006 |
RN8#,90,VZN85,9# OD=26 |
1 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02003 |
RN8#,90,VZN85,9# OD=28 |
2 | ||
| 90948-02006 |
RN8#,90,VZN85,9# OD=26 |
1 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02003 |
RN8#,90,VZN85,9# OD=28 |
2 | ||
| 90948-02006 |
RN8#,90,VZN85,9# OD=26 |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90170-10021 | ||||
| 90170-10082 | ||||
| 90201-10012 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
| 95381-03022 | ||||
ILLUST NO. 3 OF 3(8808- )RN8#,90,VZN85,9#..JPP
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
VZN85,9# |
1 | ||
| 90410-06005 |
RN12#,8#,90,VZN120 |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
VZN85,9# |
1 | ||
| 90410-06005 |
RN12#,8#,90,VZN120 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-35090 |
VZN90..DLX;RN8#,90,VZN85,95 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
RN8#,90,VZN85,9# |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
RN8#,90,VZN85,9# |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
RN8#,90,VZN85,9# ID=33.7,OD=40.7 |
1 | ||
| 96711-19010 |
RN12#,8#,90,VZN120,85,9# ID=9.8,OD=13.6 |
2 | ||
| 90301-65145 |
RN12#,8#,90,VZN120,85,9# ID=65.0,OD=70.0 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
RN8#,90,VZN85,9# ID=33.7,OD=40.7 |
1 | ||
| 96711-19010 |
RN12#,8#,90,VZN120,85,9# ID=9.8,OD=13.6 |
2 | ||
| 90301-65145 |
RN12#,8#,90,VZN120,85,9# ID=65.0,OD=70.0 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
RN8#,90,VZN85,9# ID=33.7,OD=40.7 |
1 | ||
| 96711-19010 |
RN12#,8#,90,VZN120,85,9# ID=9.8,OD=13.6 |
2 | ||
| 90301-65145 |
RN12#,8#,90,VZN120,85,9# ID=65.0,OD=70.0 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
RN8#,90,VZN85,9# ID=33.7,OD=40.7 |
1 | ||
| 96711-19010 |
RN12#,8#,90,VZN120,85,9# ID=9.8,OD=13.6 |
2 | ||
| 90301-65145 |
RN12#,8#,90,VZN120,85,9# ID=65.0,OD=70.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
RN8#,90,VZN85,9# ID=31.7,OD=34.1,T=4 |
1 | ||
| 90562-32002 |
RN8#,90,VZN85,9# ID=32,OD=40 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
RN8#,90,VZN85,9# ID=31.7,OD=34.1,T=4 |
1 | ||
| 90562-32002 |
RN8#,90,VZN85,9# ID=32,OD=40 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
RN8#,90,VZN85,9# |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
RN8#,90,VZN85,9# |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-35020 |
RN8#,90,VZN85,9# |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-35030 |
RN8#,90,VZN85,9# |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67002 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-64005 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-35150 |
VZN85,9#..DLX,STD |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44157 - CAP, BLEEDER PLUG(FOR POWER STEERING HOUSING) | ||||
| 44157-30010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44257B - PLUG, BLEEDER(FOR POWER STEERING HOUSING) | ||||
| 47547-20010 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 44447B - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-35020 |
RN12#,8#,90,VZN120 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-22010 |
VZN120,85,9# |
1 | ||
| 45357-22010 |
RN12#,8#,90 W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90119-10582 | ||||
| 90170-10208 | ||||

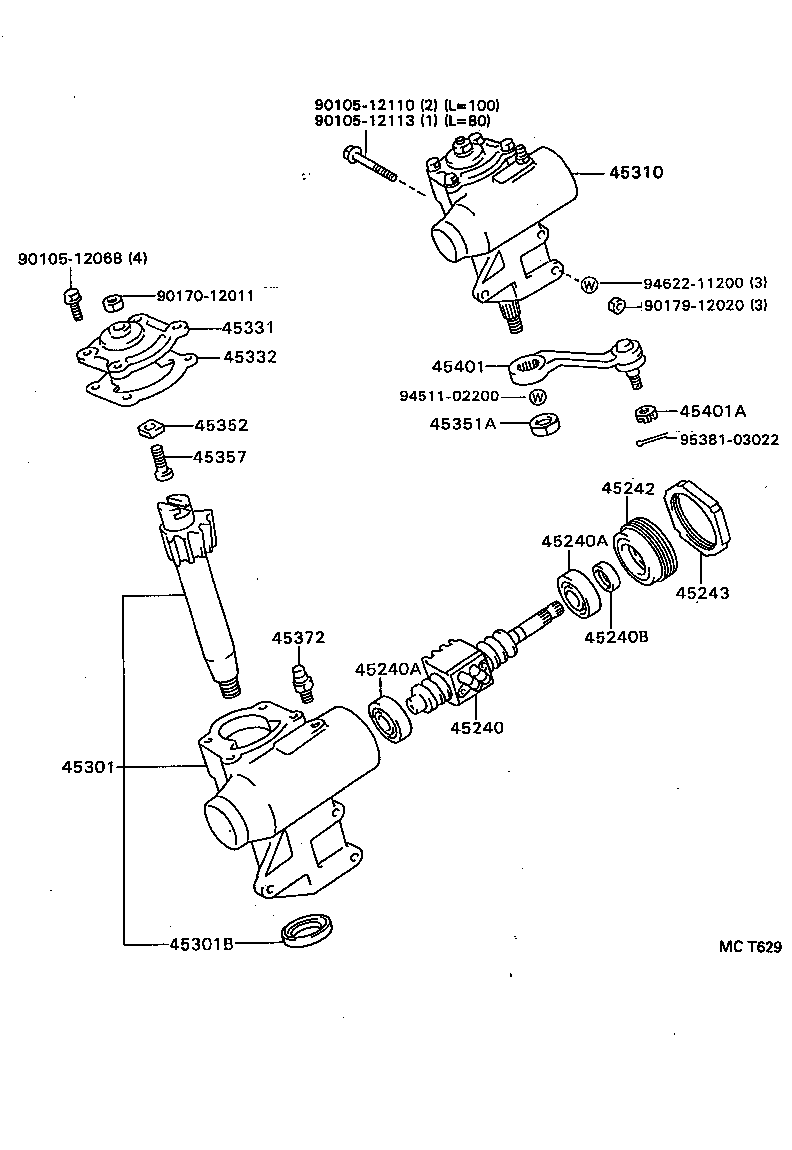

ILLUST NO. 2 OF 3(8808- )RN8#,90,VZN85,9#..JPP ; (8904- )RN12#,VZN120..JPP
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
RN12#,VZN120,85,9# |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-22010 |
VZN120,85,9# |
1 | ||
| 45357-22010 |
RN12#,8#,90 W(POWER STEERING) |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-35320 |
VZN85,9# |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
RN8#,90,VZN85,9# |
1 | ||
| Common parts | ||||
| 90105-12068 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90170-12011 | ||||
| 90179-12020 | ||||
| 94511-02200 | ||||
| 94622-11200 | ||||
| 95381-03022 | ||||
ILLUST NO. 2 OF 3(8808- )RN8#,90,VZN85,9#..JPP ; (8904- )RN12#,VZN120..JPP
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-35090 |
RN8#,90,VZN85,9# |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-35060 |
RN8#,90,VZN85,9# |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-35150 |
VZN85,9#..DLX,STD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
RN12#,VZN120,85,9# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-35320 |
VZN85,9# |
1 | ||
| Common parts | ||||
| 90101-12153 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90170-12027 | ||||
| 90179-12020 | ||||
| 94511-02200 | ||||
| 94622-11200 | ||||
