VZN85L-THSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1992
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN12#,8#,90..JPP..EFI

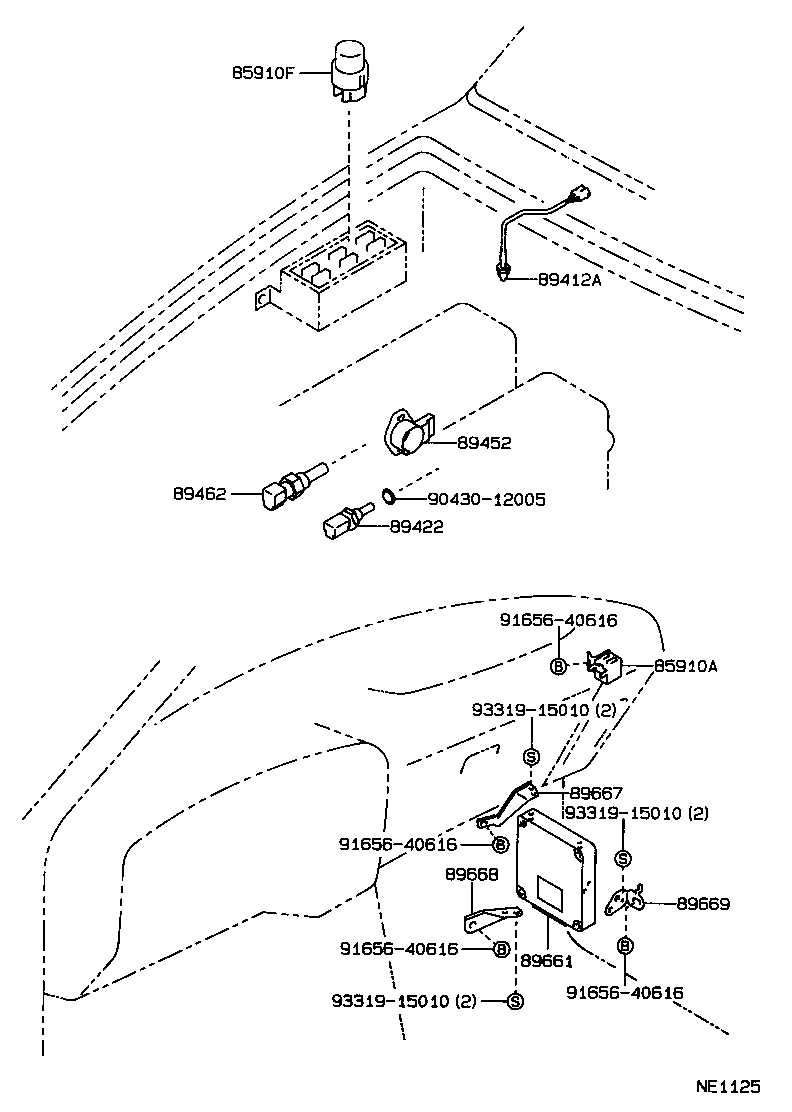

Click highlighted areas on diagram

diagram 85910A 85910F 89412A 89422 89452 89462 89661 89667 89668 89669 9043012005 9165640616 9165640616 9165640616 9165640616 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-35010

RN12#,8#,90,VZN120,85,9#..EFI

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

RN12#,8#,90,VZN120,85,9#..EFI

 1
89412A - SENSOR, E.G.R GAS TEMPERATURE
89412-12010

RN120,8#,90,VZN120,85,90..EFI..USA..(CBU,IV3)

 1
89412-12010

VZN95;RN120,8#,90,VZN120,85,90..USA

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

VZN120,85,9#

 1
89422-20010

RN12#,8#,90,VZN120,85,9#..EFI

 1
89422-20010

RN12#,8#,90

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-14050

RN12#,8#,90..EFI

 1
89452-28030

RN8#,90,VZN85,9#..EFI

 1
89452-12040

VZN120,85,9#

 1
89452-14050

RN12#,8#,90,VZN120,85,9#..EFI

 1
89462 - SWITCH, START INJECTOR TIME
89462-20040

RN12#,8#,90,VZN120,85,9#..EFI

 1
89661 - COMPUTER, ENGINE CONTROL
89661-35190

VZN85,90..R..(CBU,IV3)

 1
89661-35221

VZN85..10T..4HC

 1
89661-35220

VZN85..10T..4HC

 1
89661-35380

VZN85,90..R..USA..CBU

CALIFRONIA SPEC

 1
89661-35370

VZN85..10T..4HC

 1
89661-35350

VZN85,90..R..CBU

 1
89661-35150

RN12#,8#,90..(DLX,SR5)..EFI

 1
89661-35191

VZN85,90..R..(CBU,IV3)

 1
89661-35400

VZN85..10T..4HC

CALIFRONIA SPEC

 1
89661-35520

VZN120,85,90..ATM..CBU

 1
89661-35510

VZN85,90..R..CBU

 1
89661-35540

VZN85,90..ATM..USA..CBU

CALIFRONIA SPEC

 1
89661-35351

VZN85,90..R..CBU

 1
89661-35530

VZN85,90..R..USA..CBU

CALIFRONIA SPEC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-35030

RN12#,8#,90,VZN120,85,9#..EFI

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35040

VZN120,85,9#

 1
89668-35030

RN12#,8#,90..EFI

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35030

RN12#,8#,90,VZN120,85,9#..EFI

 1
Common parts
90430-12005
91656-40616
93319-15010

(8808- )VZN120,85,9#..JPP

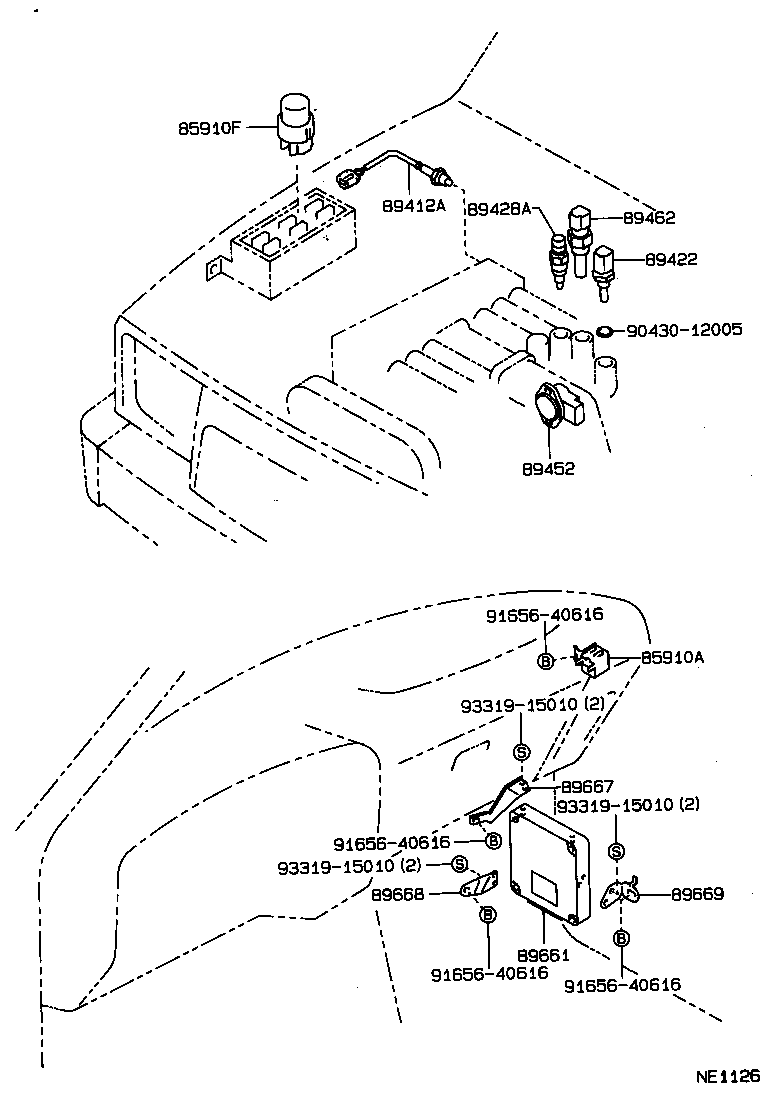

Click highlighted areas on diagram

diagram 85910A 85910F 89412A 89422 89428A 89452 89462 89661 89667 89668 89669 9043012005 9165640616 9165640616 9165640616 9165640616 9331915010 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-35010

RN12#,8#,90,VZN120,85,9#..EFI

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

RN12#,8#,90,VZN120,85,9#..EFI

 1
89412A - SENSOR, E.G.R GAS TEMPERATURE
89412-12010

RN120,8#,90,VZN120,85,90..EFI..USA..(CBU,IV3)

 1
89412-12010

VZN95;RN120,8#,90,VZN120,85,90..USA

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

VZN120,85,9#

 1
89422-20010

RN12#,8#,90,VZN120,85,9#..EFI

 1
89422-20010

RN12#,8#,90

 1
89428A - SWITCH, WATER TEMPERATURE (FOR E.F.I)
89428-14070

VZN120,85,9#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-14050

RN12#,8#,90..EFI

 1
89452-28030

RN8#,90,VZN85,9#..EFI

 1
89452-12040

VZN120,85,9#

 1
89452-14050

RN12#,8#,90,VZN120,85,9#..EFI

 1
89462 - SWITCH, START INJECTOR TIME
89462-20040

RN12#,8#,90,VZN120,85,9#..EFI

 1
89661 - COMPUTER, ENGINE CONTROL
89661-35190

VZN85,90..R..(CBU,IV3)

 1
89661-35221

VZN85..10T..4HC

 1
89661-35220

VZN85..10T..4HC

 1
89661-35380

VZN85,90..R..USA..CBU

CALIFRONIA SPEC

 1
89661-35370

VZN85..10T..4HC

 1
89661-35350

VZN85,90..R..CBU

 1
89661-35150

RN12#,8#,90..(DLX,SR5)..EFI

 1
89661-35191

VZN85,90..R..(CBU,IV3)

 1
89661-35400

VZN85..10T..4HC

CALIFRONIA SPEC

 1
89661-35520

VZN120,85,90..ATM..CBU

 1
89661-35510

VZN85,90..R..CBU

 1
89661-35540

VZN85,90..ATM..USA..CBU

CALIFRONIA SPEC

 1
89661-35351

VZN85,90..R..CBU

 1
89661-35530

VZN85,90..R..USA..CBU

CALIFRONIA SPEC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-35030

RN12#,8#,90,VZN120,85,9#..EFI

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35040

VZN120,85,9#

 1
89668-35030

RN12#,8#,90..EFI

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35030

RN12#,8#,90,VZN120,85,9#..EFI

 1
Common parts
90430-12005
91656-40616
93319-15010
