VZN85L-THSDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1992
Engine 3VZE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3VZE..VZN85,9#..JPP

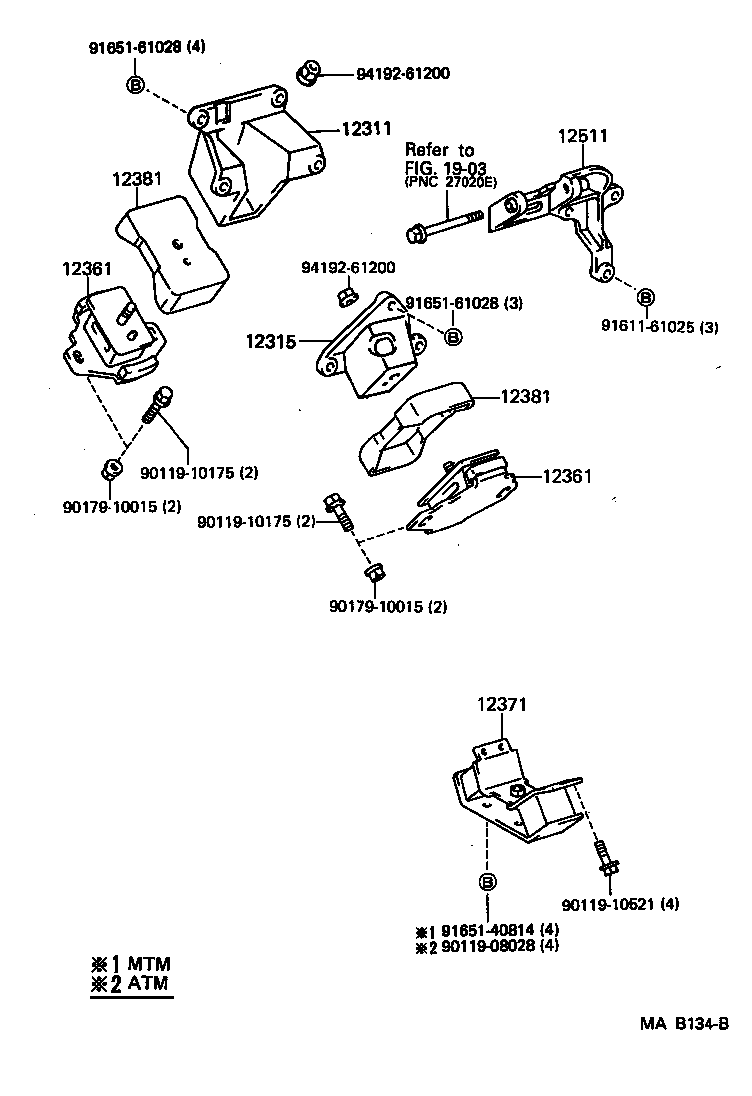

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 1903 9011908028 9011910175 9011910175 9011910521 9017910015 9017910015 9161161025 9165140814 9165161028 9165161028 9419261200 9419261200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-65030

3VZE..VZN85,9#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-65030

3VZE..VZN85,9#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-65020

3VZE..VZN85,9#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-65020

3VZE..VZN85,9#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-65030

3VZE..VZN85,9#..R

 1
12371-65040

3VZE..VZN120,85,9#..ATM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-65020

3VZE..VZN120,85,9#

 2
12381-65011

3VZE..VZN120,85,9#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-65020

3VZE..VZN120,85,9#

 2
12381-65011

3VZE..VZN120,85,9#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-65010

3VZE..VZN120,85,9#

 1
Common parts
90119-08028
90119-10175
90119-10521
90179-10015
91611-61025
91651-40814
91651-61028
94192-61200
Linked diagrams
1903
