VZN85L-THMDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3VZE..JPP

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

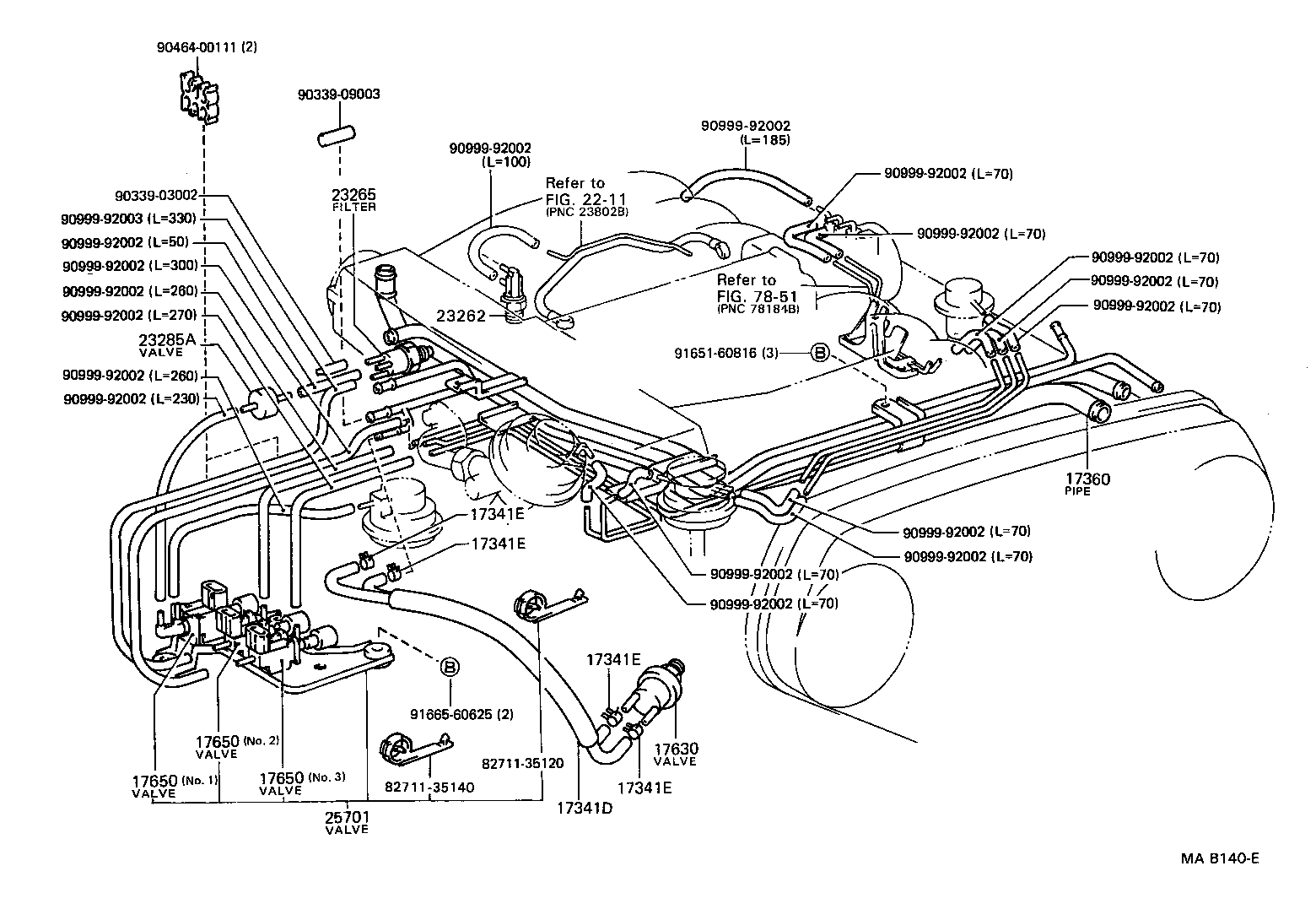

(8808-9108)3VZE..JPP

Click highlighted areas on diagram

diagram 17341D 17341E 17341E 17341E 17341E 17360 17630 17650 17650 17650 2211 23262 23265 23285A 25701 7851 8271135120 8271135140 9033903002 9033909003 9046400111 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9165160816 9166560625
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-65020

3VZE..VZN120,85,9#

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

3VZE..VZN120,85,9#

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

3VZE..VZN120,85,9#

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

3VZE..VZN120,85,9#

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
96132-30400

3VZE..VZN120,85,9#

 4
17360 - TUBE ASSY, AIR
17360-65021

3VZE..VZN120,85,9#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-16040

3VZE..VZN120,85,9#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12075

3VZE..VZN120,85,9#

NO.3

 1
90910-12074

3VZE..VZN120,85,9#

NO.2

 1
90910-12073

3VZE..VZN120,85,9#

NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12075

3VZE..VZN120,85,9#

NO.3

 1
90910-12074

3VZE..VZN120,85,9#

NO.2

 1
90910-12073

3VZE..VZN120,85,9#

NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12075

3VZE..VZN120,85,9#

NO.3

 1
90910-12074

3VZE..VZN120,85,9#

NO.2

 1
90910-12073

3VZE..VZN120,85,9#

NO.1

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05047

3VZE..VZN120,85,9#

 1
23265 - FILTER, GAS, NO.1
90917-11024

3VZE..VZN120,85,9#

 1
23285A - VALVE, CHECK, NO.1
90917-10049

3VZE..VZN120,85,9#

 1
25701 - VALVE SET, EMISSION CONTROL
25701-65020

3VZE..VZN90..R;3VZE..VZN120,85,95..4FC,5F

 1
Common parts
82711-35120
82711-35140
90339-03002
90339-09003
90464-00111
90999-92002
90999-92003
91651-60816
91665-60625
Linked diagrams
2211
7851
