VZN85L-THMDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1992
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3VZE..JPP

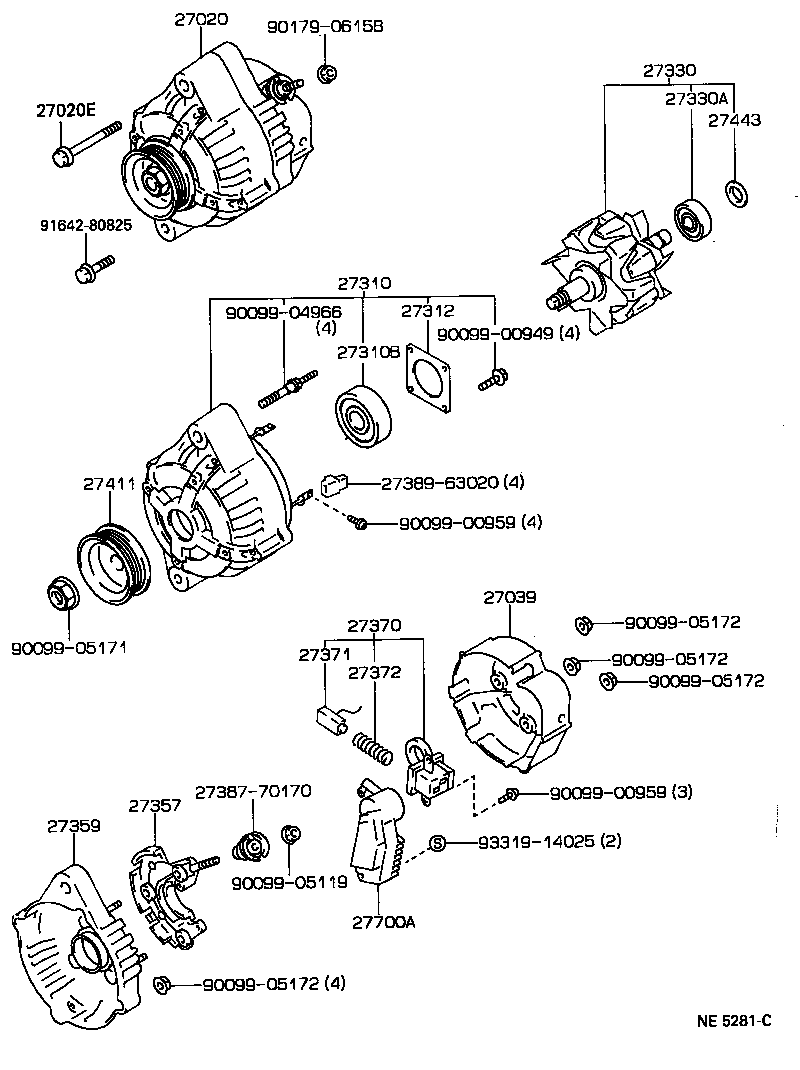

Click highlighted areas on diagram

12V 60A

diagram 27020 27020E 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 2738770170 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9017906158 9164280825 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-65020

3VZE..VZN120,85,9#

12V 60A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10101

3VZE..VZN120,85,9#

 1
27039 - COVER, ALTERNATOR REAR END
27039-15170

22RE,3VZE..RN8#,90,VZN120,85,9#

 1
27039-72010

22R..RN85,90..CND;22RE,3VZE..RN8#,90,VZN85,90;22R#,3VZE..RN12#,80,VZN120,95..(4FC,4HC,5F)..(SR5,STD)

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-65010

3VZE..VZN120,85,9#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

3VZE..VZN120,85,9#

 1
27312 - PLATE, RETAINER
27312-70200

3VZE..VZN120,85,9#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

22R..RN85,90..CND;22RE,3VZE..RN8#,90,VZN85,90;22R#,3VZE..RN12#,80,VZN120,95..(4FC,4HC,5F)..(SR5,STD)

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

22R#,3VZE..RN12#,8#,90,VZN120,85,9#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

22R..RN85,90..CND;22RE,3VZE..RN8#,90,VZN85,90;22R#,3VZE..RN12#,80,VZN120,95..(4FC,4HC,5F)..(SR5,STD)

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-65010

3VZE..VZN120,85,9#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

22R#,3VZE..RN12#,8#,90,VZN120,85,9#

 1
27371 - BRUSH, ALTERNATOR
27371-63020

22R#,3VZE..RN12#,8#,90,VZN120,85,9#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

22R#,3VZE..RN12#,8#,90,VZN120,85,9#

 2
27411 - PULLEY, ALTERNATOR
27411-65010

3VZE..VZN120,85,9#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

22R#,3VZE..RN12#,8#,90,VZN120,85,9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-16010

22RE,3VZE..RN8#,90,VZN120,85,9#

 1
27700-16010

3VZE..VZN120,85,9#

 1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90179-06158
91642-80825
93319-14025
