VZN131L-RKPGEK (1989)
Toyota 4-Runner Truck (Jpp)

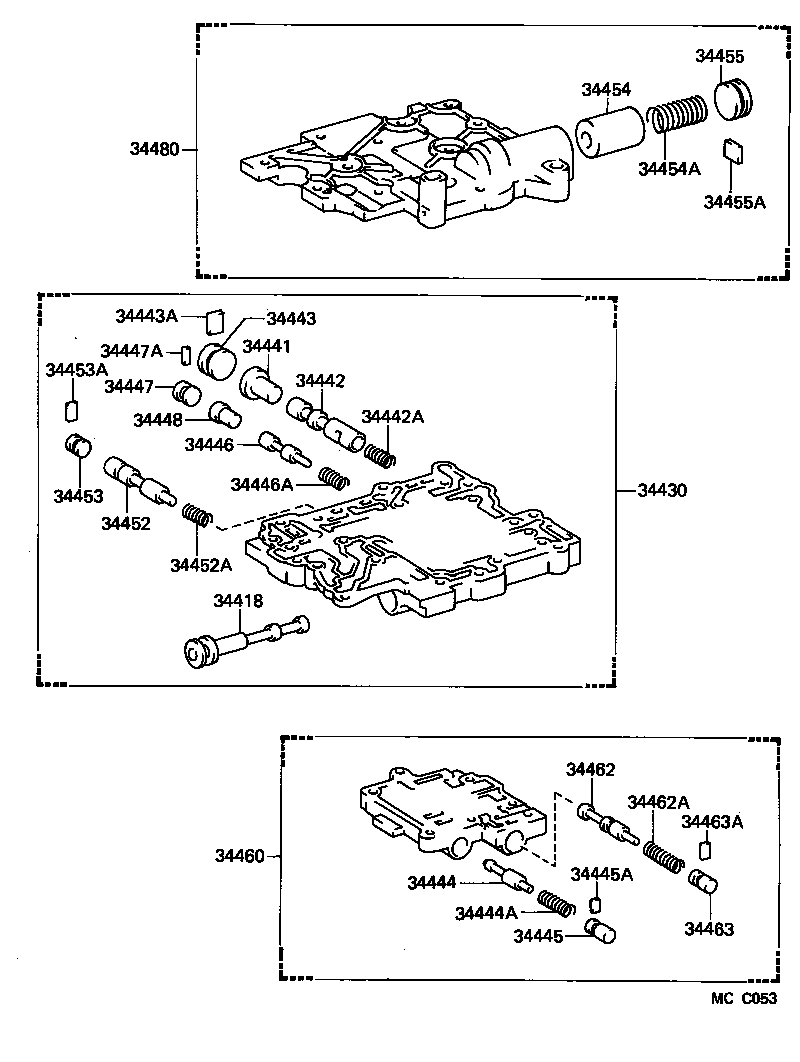

ILLUST NO. 2 OF 2(8808-8908)4FC ; (8908- )VZN105,110,13#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34418 - VALVE, TRANSFER MANUAL | ||||
| 34418-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34418-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34418-35010 |
VZN13#..4FC |
1 | ||
| 34430 - BODY ASSY, TRANSFER LOWER VALVE, NO.1 | ||||
| 34430-35020 |
VZN110,13#..4FC..SR5 |
1 | ||
| 34430-35010 |
VZN110..4FC..DLX;RN106,110,13#,VZN105..4FC |
1 | ||
| 34430-35020 |
RN110,13#..4FC..SR5 W(*ADD) |
1 | ||
| 34430-35020 |
VZN13#..4FC |
1 | ||
| 34441 - VALVE, LOW-HIGH SHIFT CONTROL | ||||
| 34441-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34441-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34441-35010 |
VZN13#..4FC |
1 | ||
| 34442 - VALVE, LOW-HIGH SHIFT | ||||
| 34442-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34442-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34442-35010 |
VZN13#..4FC |
1 | ||
| 34442A - SPRING, COMPRESSION(FOR LOW-HIGH SHIFT VALVE) | ||||
| 90501-09071 |
VZN105,110,13#..4FC |
1 | ||
| 90501-09071 |
VZN13#..4FC |
1 | ||
| 90501-09071 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34443 - PLUG, LOW-HIGH SHIFT VALVE | ||||
| 34443-35010 |
VZN13#..4FC |
1 | ||
| 34443-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34443-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34443A - KEY, STRAIGHT(FOR LOW-HIGH SHIFT VALVE PLUG) | ||||
| 90282-03008 |
VZN13#..4FC |
1 | ||
| 90282-03008 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90282-03008 |
VZN105,110,13#..4FC |
1 | ||
| 34444 - VALVE, LOW-HIGH SHIFT TIMING | ||||
| 34444-35010 |
VZN13#..4FC |
1 | ||
| 34444-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34444-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34444A - SPRING, COMPRESSION(FOR LOW-HIGH SHIFT TIMING VALVE) | ||||
| 90501-06046 |
RN106,110,13#..4FC |
1 | ||
| 90501-07053 |
VZN13#..4FC |
1 | ||
| 90501-07053 |
VZN105,110,13#..4FC |
1 | ||
| 34445 - PLUG, LOW-HIGH SHIFT TIMING VALVE | ||||
| 34463-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34463-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34463-35010 |
VZN13#..4FC |
1 | ||
| 34445A - SEAT(FOR LOW-HIGH SHIFT TIMING VALVE PLUG) | ||||
| 35493-30040 |
VZN105,110,13#..4FC |
1 | ||
| 35493-30040 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35493-30040 |
VZN13#..4FC |
1 | ||
| 34446 - VALVE, LOW-HIGH SIGNAL | ||||
| 34446-35010 |
VZN13#..4FC |
1 | ||
| 34446-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34446-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34446A - SPRING, COMPRESSION(FOR LOW-HIGH SIGNAL VALVE) | ||||
| 90501-08072 |
VZN105,110,13#..4FC |
1 | ||
| 90501-08072 |
VZN13#..4FC |
1 | ||
| 90501-08072 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34447 - PLUG, LOW-HIGH SIGNAL VALVE | ||||
| 90339-05014 |
VZN105,110,13#..4FC |
1 | ||
| 90339-05014 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90339-05014 |
VZN13#..4FC |
1 | ||
| 34447A - SEAT(FOR LOW-HIGH SIGNAL VALVE PLUG) | ||||
| 35493-30040 |
VZN105,110,13#..4FC |
1 | ||
| 35493-30040 |
VZN13#..4FC |
1 | ||
| 35493-30040 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34448 - VALVE, LOW-HIGH SIGNAL CONTROL | ||||
| 34448-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34448-35010 |
VZN13#..4FC |
1 | ||
| 34448-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34452 - VALVE, TRANSFER DIRECT CLUTCH MODULATOR | ||||
| 34452-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34452-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34452-35010 |
VZN13#..4FC |
1 | ||
| 34452A - SPRING (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE) | ||||
| 90501-06041 |
VZN13#..4FC |
1 | ||
| 90501-06041 |
VZN105,110,13#..4FC |
1 | ||
| 90501-06041 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34453 - PLUG, DIRECT CLUTCH MODULATOR VALVE | ||||
| 34453-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34453-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34453-35010 |
VZN13#..4FC |
1 | ||
| 34453A - SEAT (FOR DIRECT CLUTCH MODULATOR VALVE PLUG) | ||||
| 35438-22020 |
VZN105,110,13#..4FC |
1 | ||
| 35438-22020 |
VZN13#..4FC |
1 | ||
| 35438-22020 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34454 - VALVE, TRANSFER DIRECT CLUTCH ACCUMULATOR | ||||
| 34454-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34454-35010 |
VZN13#..4FC |
1 | ||
| 34454-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34454A - SPRING (FOR TRANSFER CLUTCH ACCUMULATOR VALVE) | ||||
| 90501-25016 |
VZN105,110,13#..4FC |
1 | ||
| 90501-25016 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90501-25016 |
VZN13#..4FC |
1 | ||
| 34455 - PLUG, TRANSFER DIRECT CLUTCH ACCUMULATOR | ||||
| 34455-35010 |
VZN13#..4FC |
1 | ||
| 34455-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34455-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34455A - KEY (FOR TRANSFER DIRECT CLUTCH ACCUMULATOR PLUG | ||||
| 90282-03008 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90282-03008 |
VZN105,110,13#..4FC |
1 | ||
| 90282-03008 |
VZN13#..4FC |
1 | ||
| 34460 - BODY ASSY, TRANSFER LOWER VALVE, NO.2 | ||||
| 34460-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34460-35020 |
RN106,110,13#..4FC |
1 | ||
| 34460-35010 |
VZN13#..4FC |
1 | ||
| 34462 - VALVE, HIGH-LOW ORIFICE CONTROL | ||||
| 34462-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34462-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34462-35010 |
VZN13#..4FC |
1 | ||
| 34462A - SPRING, COMPRESSION(FOR HIGH-LOW ORIFICE CONTROL VALVE) | ||||
| 90501-10115 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90501-10115 |
VZN105,110,13#..4FC |
1 | ||
| 90501-10115 |
VZN13#..4FC |
1 | ||
| 34463 - PLUG, HIGH-LOW ORIFICE CONTROL VALVE | ||||
| 34463-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34463-35010 |
VZN13#..4FC |
1 | ||
| 34463-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34463A - SEAT(FOR HIGH-LOW ORIFICE CONTROL VALVE PLUG) | ||||
| 35493-30040 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35493-30040 |
VZN105,110,13#..4FC |
1 | ||
| 35493-30040 |
VZN13#..4FC |
1 | ||
| 34480 - BODY ASSY, TRANSFER UPPER VALVE | ||||
| 34480-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34480-35010 |
VZN13#..4FC |
1 | ||
| 34480-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||

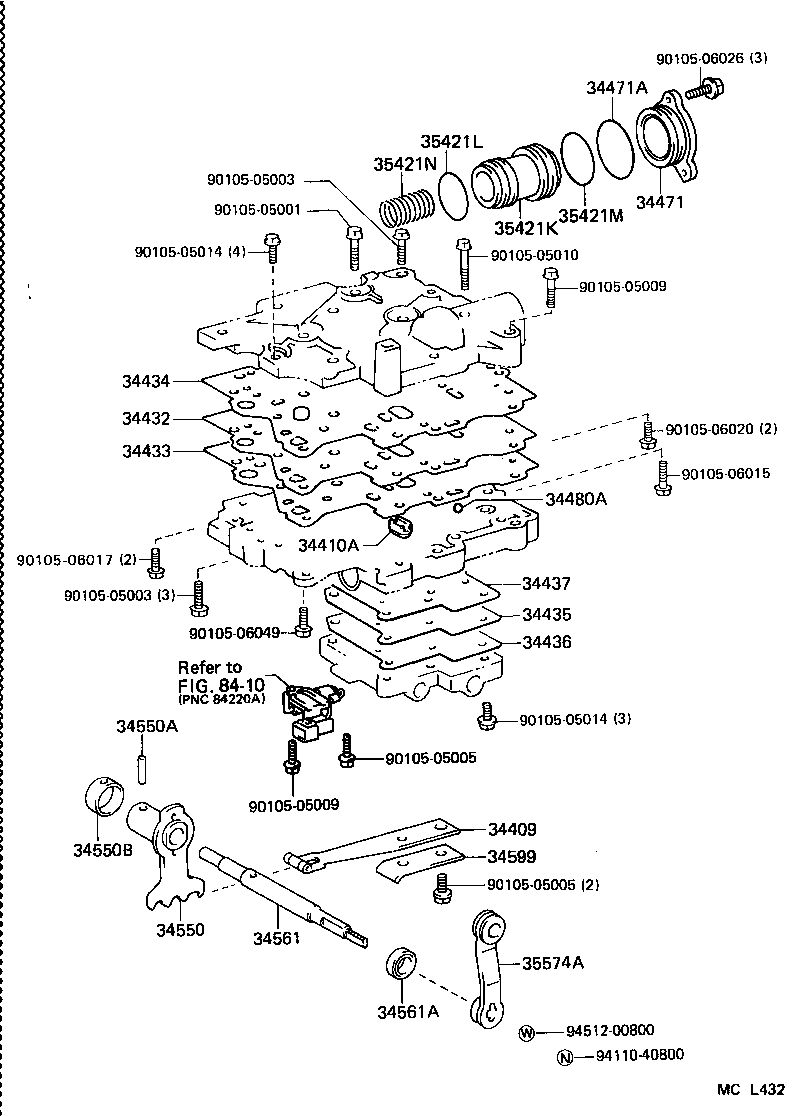

ILLUST NO. 1 OF 2(8808-8908)4FC ; (8908- )VZN105,110,13#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34409 - SPRING SUB-ASSY, TRANSFER MANUAL DETENT | ||||
| 34409-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34409-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34409-35010 |
VZN13#..4FC |
1 | ||
| 34410A - STRAINER, OIL (FOR TRANSFER VALVE BODY) | ||||
| 35441-35010 |
VZN105,110,13#..4FC |
2 | ||
| 35441-35010 |
VZN13#..4FC |
2 | ||
| 35441-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 34432 - PLATE, TRANSFER VALVE BODY, UPPER | ||||
| 34432-35010 |
VZN13#..4FC |
1 | ||
| 34432-35020 |
RN106,110,13#..4FC |
1 | ||
| 34432-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34433 - GASKET, TRANSFER UPPER VALVE BODY, NO.1 | ||||
| 34433-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34433-35010 |
VZN13#..4FC |
1 | ||
| 34433-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34434 - GASKET, TRANSFER UPPER VALVE BODY, NO.2 | ||||
| 34434-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34434-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34434-35010 |
VZN13#..4FC |
1 | ||
| 34435 - PLATE, TRANSFER VALVE BODY, LOWER | ||||
| 34435-35020 |
VZN105,110,13#..4FC |
1 | ||
| 34435-35030 |
RN106,110,13#..4FC |
1 | ||
| 34435-35020 |
VZN13#..4FC |
1 | ||
| 34436 - GASKET, TRANSFER LOWER VALVE BODY, NO.1 | ||||
| 34436-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34436-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34436-35010 |
VZN13#..4FC |
1 | ||
| 34437 - GASKET, TRANSFER LOWER VALVE BODY, NO.2 | ||||
| 34437-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34437-35010 |
VZN13#..4FC |
1 | ||
| 34437-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34471 - COVER, LOW SPEED BRAKE ACCUMULATOR | ||||
| 34471-35020 |
VZN13#..4FC |
1 | ||
| 34471-35020 |
VZN105,110,13#..4FC |
1 | ||
| 34471-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34471A - RING, O (FOR LOW SPEED BRAKE ACCUMULATOR COVER) | ||||
| 90301-31002 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90301-31002 |
VZN13#..4FC |
1 | ||
| 90301-31002 |
VZN105,110,13#..4FC |
1 | ||
| 34480A - BALL (FOR TRANSFER UPPER VALVE BODY) | ||||
| 35495-22020 |
RN106,110,13#,VZN105,110,13#..4FC |
4 | ||
| 35495-22020 |
VZN13#..4FC |
4 | ||
| 35495-22020 |
VZN105,110,13#..4FC |
4 | ||
| 34550 - LEVER ASSY, TRANSFER MANUAL VALVE | ||||
| 34550-35010 |
VZN13#..4FC |
1 | ||
| 34550-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34550-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34550A - PIN, SLOTTED SPRING (FOR TRANSFER MANUAL VALVE LEVER) | ||||
| 90254-04011 |
VZN13#..4FC |
1 | ||
| 90254-04011 |
VZN105,110,13#..4FC |
1 | ||
| 90254-04011 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34550B - SPACER (FOR TRANSFER MANUAL VALVE LEVER) | ||||
| 90560-20003 |
VZN13#..4FC |
1 | ||
| 90560-20003 |
VZN105,110,13#..4FC |
1 | ||
| 90560-20003 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34561 - SHAFT, TRANSFER MANUAL VALVE LEVER | ||||
| 34561-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34561-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34561-35010 |
VZN13#..4FC |
1 | ||
| 34561A - SEAL, OIL (FOR TRANSFER MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90311-12002 |
VZN105,110,13#..4FC |
1 | ||
| 90311-12002 |
VZN13#..4FC |
1 | ||
| 34599 - COVER, TRANSFER MANUAL DETENT SPRING | ||||
| 34599-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34599-35010 |
VZN13#..4FC |
1 | ||
| 34599-35010 |
VZN105,110,13#..4FC |
1 | ||
| 35421K - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35421-35010 |
VZN105,110,13#..4FC |
1 | ||
| 35421-35010 |
VZN13#..4FC |
1 | ||
| 35421L - RING, O (FOR ACCUMULATOR, NO.1 PISTON INNER) | ||||
| 90301-23194 |
VZN13#..4FC |
1 | ||
| 90301-23194 |
VZN105,110,13#..4FC |
1 | ||
| 90301-23194 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35421M - RING, O (F0R ACCUMULATOR, NO.1 PISTON OUTER) | ||||
| 90301-29187 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90301-29187 |
VZN105,110,13#..4FC |
1 | ||
| 90301-29187 |
VZN13#..4FC |
1 | ||
| 35421N - SPRING, COMPRESSION (FOR ACCUMULATOR, NO.1 PISTON) | ||||
| 90501-29011 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90501-29011 |
VZN105,110,13#..4FC |
1 | ||
| 90501-29011 |
VZN13#..4FC |
1 | ||
| 35574A - LEVER, TRANSFER CONTROL SHAFT | ||||
| 35574-35020 |
VZN105,110,13#..4FC |
1 | ||
| 35574-35020 |
VZN13#..4FC |
1 | ||
| 35574-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||
| 90105-05010 | ||||
| 90105-05014 | ||||
| 90105-06015 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 90105-06026 | ||||
| 90105-06049 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
