VZN131L-RJPGEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1993
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8904-9108)RN13#,VZN13#

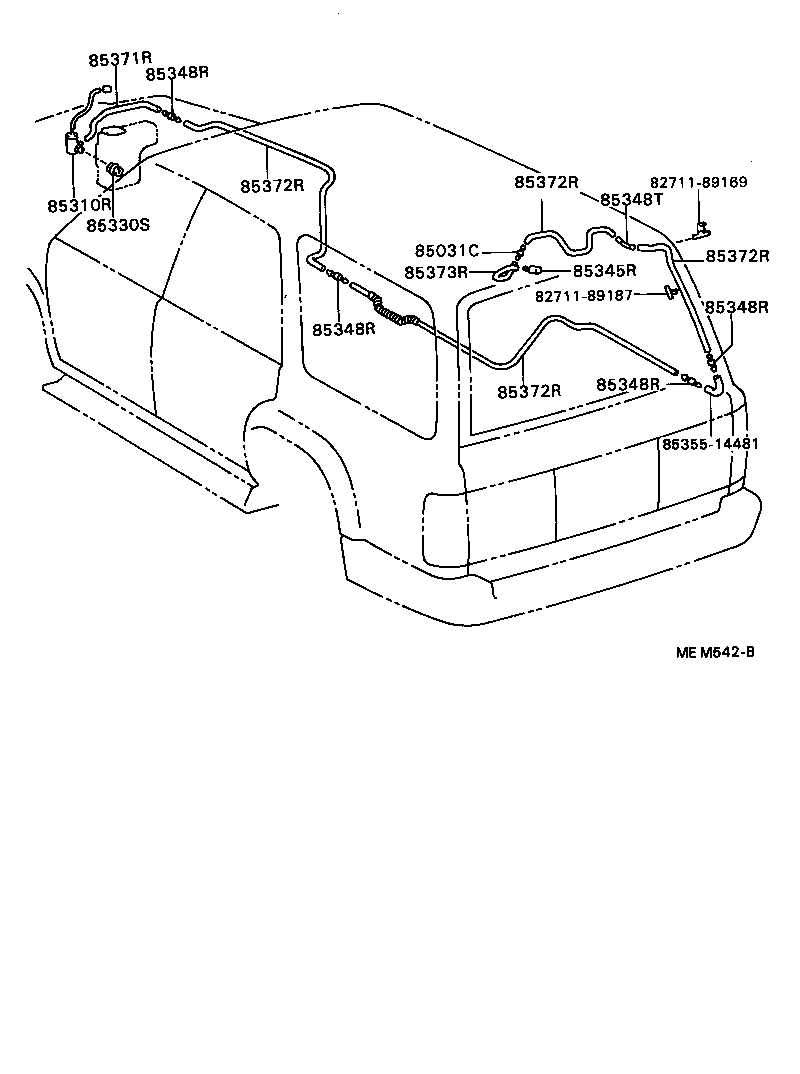

Click highlighted areas on diagram

diagram 8271189169 8271189187 85031C 85310R 85330S 85345R 85348R 85348R 85348R 85348R 85348T 8535514481 85371R 85372R 85372R 85372R 85372R 85373R
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-12250

RN13#,VZN13#

 1
85031-12250

RN13#,VZN13#

 1
85310R - MOTOR ASSY, REAR WASHER
85310-89114

RN131,VZN131

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

RN131,VZN131

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85355-32020

RN13#,VZN13#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

RN131,VZN131

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
90099-33822

RN13#,VZN13#

L=3100

 1
90446-07001

RN13#,VZN13#

 1
90099-33691

RN13#,VZN13#

*H,L=30

 1
90099-33814

RN13#,VZN13#

L=3115

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
90099-33822

RN13#,VZN13#

L=3100

 1
90446-07001

RN13#,VZN13#

 1
90099-33691

RN13#,VZN13#

*H,L=30

 1
90099-33814

RN13#,VZN13#

L=3115

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
90099-33822

RN13#,VZN13#

L=3100

 1
90446-07001

RN13#,VZN13#

 1
90099-33691

RN13#,VZN13#

*H,L=30

 1
90099-33814

RN13#,VZN13#

L=3115

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
90099-33822

RN13#,VZN13#

L=3100

 1
90446-07001

RN13#,VZN13#

 1
90099-33691

RN13#,VZN13#

*H,L=30

 1
90099-33814

RN13#,VZN13#

L=3115

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
Common parts
82711-89169
82711-89187
85355-14481

(9108- )RN13#,VZN13#

Click highlighted areas on diagram

diagram 8271189187 85031C 85031C 85310R 85330S 85345R 85348R 85348R 85348R 85348R 85348T 85371R 85372R 85372R 85372R 85372R 85372R 85373R 8538735080
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85031-12250

RN13#,VZN13#

 1
85031-12250

RN13#,VZN13#

 1
85031C - VALVE SUB-ASSY, WASHER
85031-12250

RN13#,VZN13#

 1
85031-12250

RN13#,VZN13#

 1
85310R - MOTOR ASSY, REAR WASHER
85310-89114

RN131,VZN131

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

RN131,VZN131

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85355-32020

RN13#,VZN13#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

RN131,VZN131

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
90099-33822

RN13#,VZN13#

L=3100

 1
90446-07001

RN13#,VZN13#

 1
90099-33691

RN13#,VZN13#

*H,L=30

 1
90099-33814

RN13#,VZN13#

L=3115

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
90099-33822

RN13#,VZN13#

L=3100

 1
90446-07001

RN13#,VZN13#

 1
90099-33691

RN13#,VZN13#

*H,L=30

 1
90099-33814

RN13#,VZN13#

L=3115

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
90099-33822

RN13#,VZN13#

L=3100

 1
90446-07001

RN13#,VZN13#

 1
90099-33691

RN13#,VZN13#

*H,L=30

 1
90099-33814

RN13#,VZN13#

L=3115

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
90099-33822

RN13#,VZN13#

L=3100

 1
90446-07001

RN13#,VZN13#

 1
90099-33691

RN13#,VZN13#

*H,L=30

 1
90099-33814

RN13#,VZN13#

L=3115

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
90099-33822

RN13#,VZN13#

L=3100

 1
90446-07001

RN13#,VZN13#

 1
90099-33691

RN13#,VZN13#

*H,L=30

 1
90099-33814

RN13#,VZN13#

L=3115

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33241

RN13#,VZN13#

*H,L=3100

 1
Common parts
82711-89187
85387-35080
