VZN131L-RJPGEK (1989)
Toyota 4-Runner Truck (Jpp)

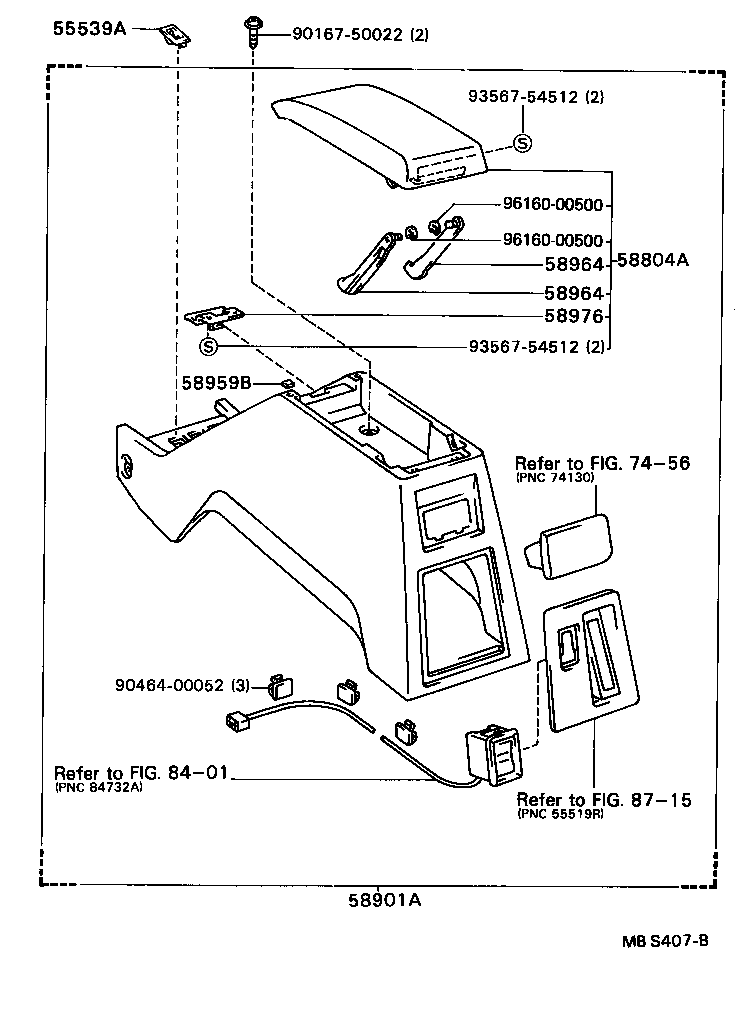

ILLUST NO. 2 OF 2(8904- )RN13#,VZN13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-2002012 |
RN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5 RED,TRIM3# |
1 | ||
| 55539-2002024 |
RN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5 BLUE,TRIM8# |
1 | ||
| 55539-20020B0 |
RN110,VZN110..5F..SR5;RN101,13#,VZN100,13#..SR5 MEDIUM GRAY,TRIM1# |
1 | ||
| 55539-20020E1 |
RN13#,VZN13#..4FC TAN,TRIM4# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-8910103 |
RN13#,VZN100,110,13#..SR5 GRAY,TRIM1# |
1 | ||
| 58804-8910102 |
RN13#,VZN100,110,13#..SR5 RED,TRIM3# |
1 | ||
| 58804-8910106 |
RN13#,VZN100,110,13#..SR5 BROWN,TRIM4# |
1 | ||
| 58804-35010E1 |
RN13#,VZN13# TAN,TRIM4# |
1 | ||
| 58804-35010E0 |
RN13#,VZN110,13#..SR5 BROWN,TRIM4# |
1 | ||
| 58804-35010D0 |
RN13#,VZN110,13#..SR5 RED,TRIM3# |
1 | ||
| 58804-8910104 |
RN13#,VZN100,110,13#..SR5 BLUE,TRIM8# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-8913106 |
RN131,VZN131 BROWN,TRIM4# |
1 | ||
| 58901-8913102 |
RN131,VZN131 RED,TRIM3# |
1 | ||
| 58901-89131E0 |
RN131,VZN131 TAN,TRIM4# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-89101 |
RN101,110,13#,VZN131..SR5 |
2 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-90K00 |
RN13#,VZN100,110,13#..SR5 RH |
1 | ||
| 58964-30040 |
RN13#,VZN100,110,13#..SR5 LH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-90K00 |
RN13#,VZN100,110,13#..SR5 RH |
1 | ||
| 58964-30040 |
RN13#,VZN100,110,13#..SR5 LH |
1 | ||
| 58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-22020 |
RN101,110,13#,VZN131..SR5 |
1 | ||
| Common parts | ||||
| 90167-50022 | ||||
| 90464-00052 | ||||
| 93567-54512 | ||||
| 96160-00500 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8401 | ||||
| 8715 | ||||

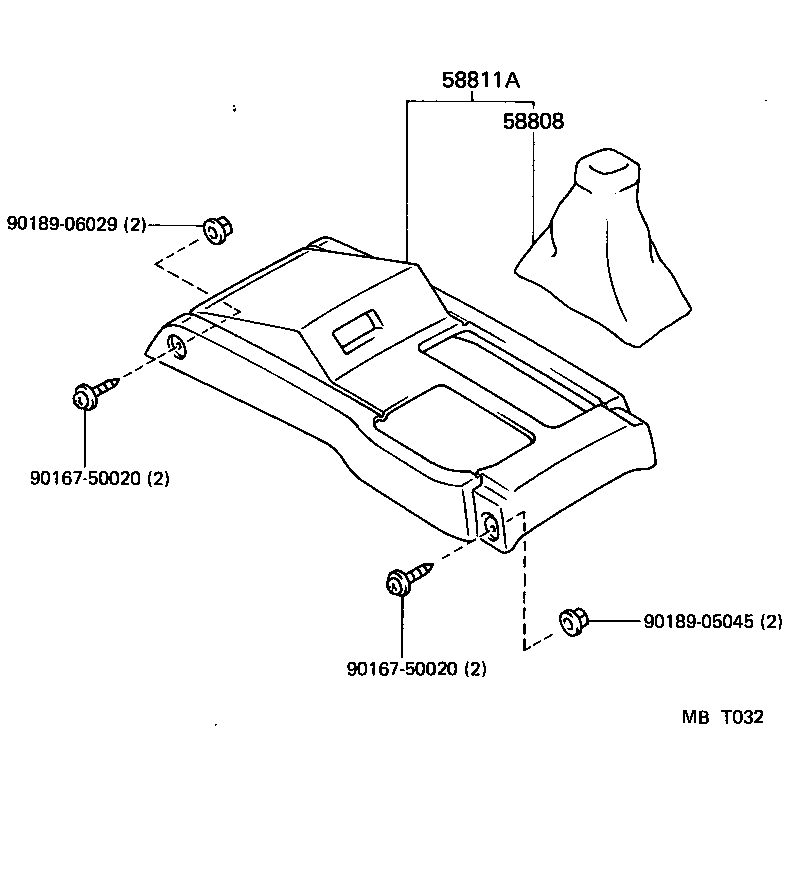

ILLUST NO. 1 OF 2(8908- )RN10#,110,13#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-8911806 |
RN10#,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 58808-8911803 |
RN10#,110,13#..4FC GRAY,TRIM1# |
1 | ||
| 58808-8911802 |
RN10#,110,13#..4FC RED,TRIM3# |
1 | ||
| 58808-8911804 |
RN10#,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 58808-89118J0 |
RN101,110,13#..4FC MEDIUM BLUE,TRIM8# |
1 | ||
| 58808-89118B0 |
RN101,110,13#..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58802-8911806 |
RN10#,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 58811-8912102 |
VZN105,110,13#..4FC RED,TRIM3# |
1 | ||
| 58811-8912102 |
RN106,110,13#,VZN105,110,13#..4FC RED,TRIM3# |
1 | ||
| 58811-8912106 |
VZN105,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 58811-8912103 |
RN106,110,13#,VZN105,110,13#..4FC GRAY,TRIM1# |
1 | ||
| 58811-8912104 |
RN106,110,13#,VZN105,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 58802-8911803 |
RN10#,110,13#..4FC GRAY,TRIM1# |
1 | ||
| 58811-8912106 |
RN106,110,13#,VZN105,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 58802-8911802 |
RN10#,110,13#..4FC RED,TRIM3# |
1 | ||
| 58802-8911804 |
RN10#,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 58811-89121E0 |
VZN13#..4FC TAN,TRIM4# |
1 | ||
| 58811-8912104 |
VZN105,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 58811-8912103 |
VZN105,110,13#..4FC GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90167-50020 | ||||
| 90189-05045 | ||||
| 90189-06029 | ||||
ILLUST NO. 1 OF 2(8808-8908)4FC ; (8908- )VZN105,110,13#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58811A - BOX, CONSOLE, FRONT | ||||
| 58802-8911806 |
RN10#,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 58811-8912102 |
VZN105,110,13#..4FC RED,TRIM3# |
1 | ||
| 58811-8912102 |
RN106,110,13#,VZN105,110,13#..4FC RED,TRIM3# |
1 | ||
| 58811-8912106 |
VZN105,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 58811-8912103 |
RN106,110,13#,VZN105,110,13#..4FC GRAY,TRIM1# |
1 | ||
| 58811-8912104 |
RN106,110,13#,VZN105,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 58802-8911803 |
RN10#,110,13#..4FC GRAY,TRIM1# |
1 | ||
| 58811-8912106 |
RN106,110,13#,VZN105,110,13#..4FC BROWN,TRIM4# |
1 | ||
| 58802-8911802 |
RN10#,110,13#..4FC RED,TRIM3# |
1 | ||
| 58802-8911804 |
RN10#,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 58811-89121E0 |
VZN13#..4FC TAN,TRIM4# |
1 | ||
| 58811-8912104 |
VZN105,110,13#..4FC BLUE,TRIM8# |
1 | ||
| 58811-8912103 |
VZN105,110,13#..4FC GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90167-50020 | ||||
| 90168-50041 | ||||
| 90189-05045 | ||||
| 90189-06029 | ||||
