VZN131L-RJMGEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1993
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8904-9308)VZN13#

Click highlighted areas on diagram

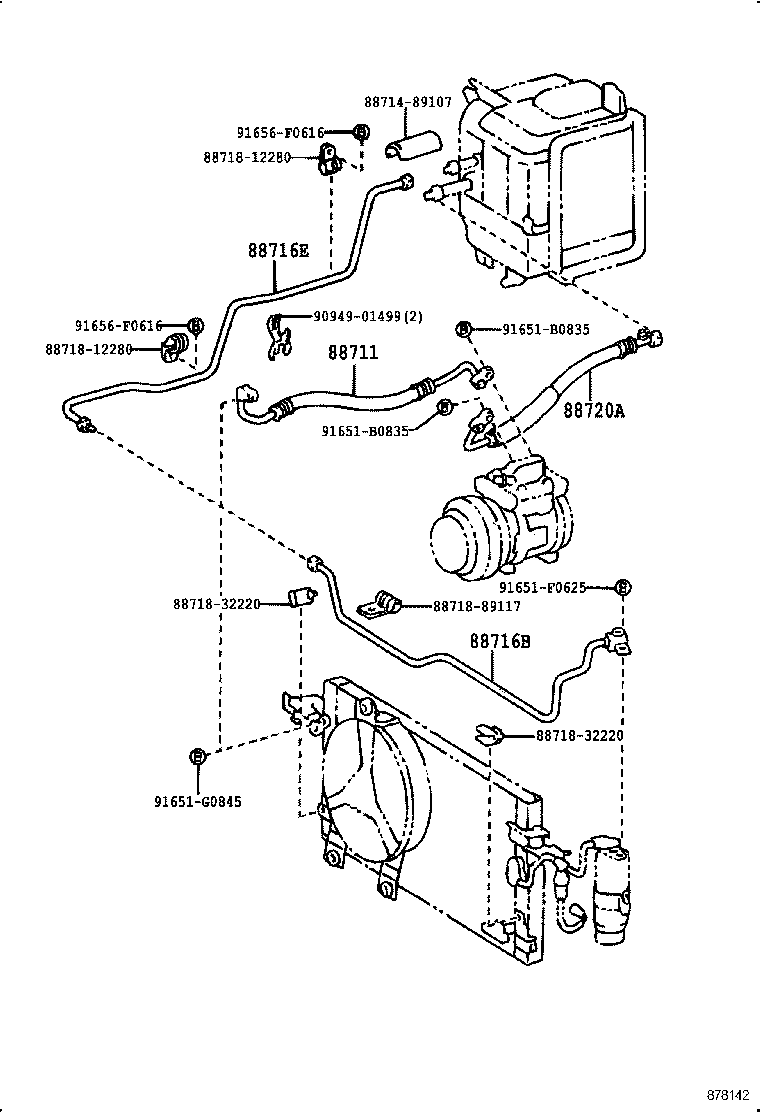

diagram 88711 8871489107 88716B 88716E 8871812280 8871812280 8871832220 8871832220 8871889117 88720A 9094901499 91651B0835 91651B0835 91651F0625 91651G0845 91656F0616 91656F0616
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35070

VZN131

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-35061

RN130,VZN13#

 1
88716-89172

RN13#,VZN13#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89181

VZN10#,110,130;RN10#,110,VZN131..CND

 1
88716-35041

RN131,VZN131

 1
88716-89181

RN10#,110,VZN10#,110,13#

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-35170

VZN10#,110,131..CND

 1
88720-35170

VZN10#,110,13#

 1
Common parts
88714-89107
88718-12280
88718-32220
88718-89117
90949-01499
91651-B0835
91651-F0625
91651-G0845
91656-F0616

ILLUST NO. 1 OF 2(8904-9108)RN13#,VZN13#

Click highlighted areas on diagram

DEALER OPTION

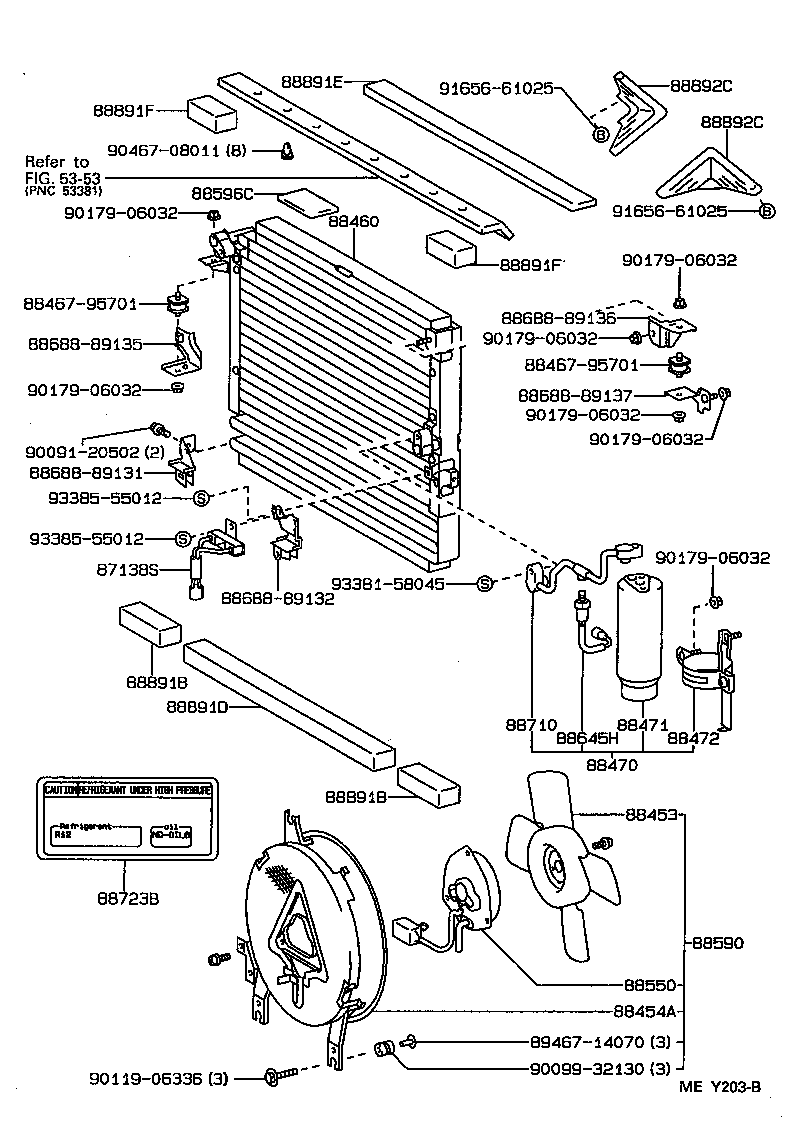

diagram 5353 87138S 88453 88454A 88460 8846795701 8846795701 88470 88471 88472 88550 88590 88596C 88645H 8868889131 8868889132 8868889135 8868889136 8868889137 88710 88723B 88891B 88891B 88891D 88891E 88891F 88891F 88892C 88892C 8946714070 9009120502 9009932130 9011906336 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9046708011 9165661025 9165661025 9338158045 9338555012 9338555012
Part # Description Qty Price
87138S - RESISTOR, BLOWER
88635-89107

RN13#,VZN13#

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010

RN131,VZN131

 1
88460 - CONDENSER ASSY, COOLER
88460-35060

RN131,VZN131

 1
88460-89117

RN13#,VZN13#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

RN130,VZN130;RN10#,110,131,VZN100,110,131..CND

 1
88471-16040

RN10#,110,13#,VZN10#,110,13#

 1
88471-16040

RN10#,110,13#,VZN10#,110,130

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89110

RN10#,110,13#,VZN10#,110,130

 1
88472-89110

RN10#,110,13#,VZN10#,110,13#

 1
88645H - SWITCH, PRESSURE NO.1
88645-89103

RN131,VZN131

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35010

RN13#,VZN13#

 1
88710-89121

RN13#,VZN13#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-17030

RN13#,VZN13#

 1
88891D - PACKING D (FOR COOLER)
88578-89125

RN10#,110,131..CND

 1
88891E - PACKING E (FOR COOLER)
88578-89112

RN10#,110,13#,VZN10#,110,130

 1
88892C - PLATE, CONDENSER, NO.1
88892-89116

VZN10#,110..USA;RN10#,110,13#,VZN130

RH

 1
88892-89117

RN10#,110,13#,VZN130

LH

 1
88892-89117

RN10#,110,13#,VZN10#,110,13#

LH

 1
88892-89116

RN10#,110,13#,VZN10#,110,13#

RH

 1
88892C - PLATE, CONDENSER, NO.1
88892-89116

VZN10#,110..USA;RN10#,110,13#,VZN130

RH

 1
88892-89117

RN10#,110,13#,VZN130

LH

 1
88892-89117

RN10#,110,13#,VZN10#,110,13#

LH

 1
88892-89116

RN10#,110,13#,VZN10#,110,13#

RH

 1
Common parts
88467-95701
88688-89131
88688-89132
88688-89135
88688-89136
88688-89137
89467-14070
90091-20502
90099-32130
90119-06336
90179-06032
90467-08011
91656-61025
93381-58045
93385-55012
Linked diagrams
5353

ILLUST NO. 1 OF 2(9108- )RN13#,VZN13#

Click highlighted areas on diagram

DEALER OPTION

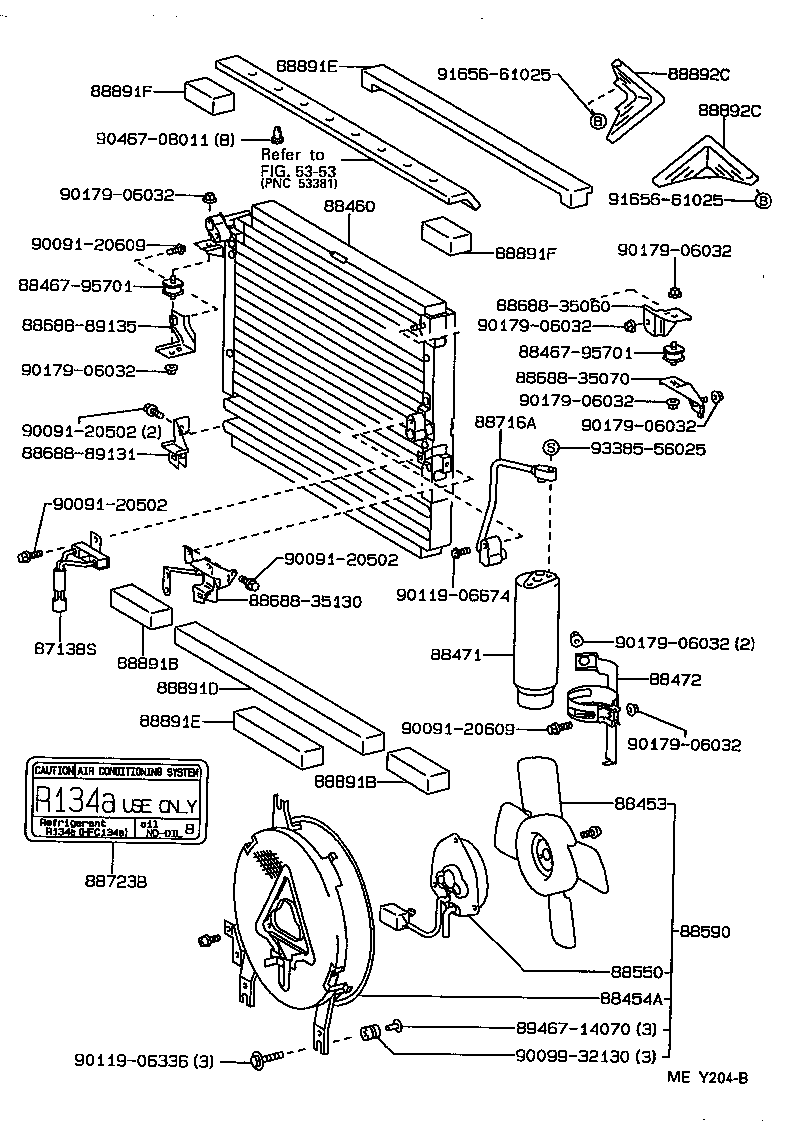

diagram 5353 87138S 88453 88454A 88460 8846795701 8846795701 88471 88472 88550 88590 8868835060 8868835070 8868835130 8868889131 8868889135 88716A 88723B 88891B 88891B 88891D 88891E 88891E 88891F 88891F 88892C 88892C 8946714070 9009120502 9009120502 9009120502 9009120609 9009120609 9009932130 9011906336 9011906674 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9046708011 9165661025 9165661025 9338556025
Part # Description Qty Price
87138S - RESISTOR, BLOWER
88635-89107

RN13#,VZN13#

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010

RN131,VZN131

 1
88460 - CONDENSER ASSY, COOLER
88460-35060

RN131,VZN131

 1
88460-89117

RN13#,VZN13#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

RN130,VZN130;RN10#,110,131,VZN100,110,131..CND

 1
88471-16040

RN10#,110,13#,VZN10#,110,13#

 1
88471-16040

RN10#,110,13#,VZN10#,110,130

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89110

RN10#,110,13#,VZN10#,110,130

 1
88472-89110

RN10#,110,13#,VZN10#,110,13#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-17030

RN13#,VZN13#

 1
88891D - PACKING D (FOR COOLER)
88578-89125

RN10#,110,131..CND

 1
88891E - PACKING E (FOR COOLER)
88578-89112

RN10#,110,13#,VZN10#,110,130

 1
88891E - PACKING E (FOR COOLER)
88578-89112

RN10#,110,13#,VZN10#,110,130

 1
88892C - PLATE, CONDENSER, NO.1
88892-89116

VZN10#,110..USA;RN10#,110,13#,VZN130

RH

 1
88892-89117

RN10#,110,13#,VZN130

LH

 1
88892-89117

RN10#,110,13#,VZN10#,110,13#

LH

 1
88892-89116

RN10#,110,13#,VZN10#,110,13#

RH

 1
88892C - PLATE, CONDENSER, NO.1
88892-89116

VZN10#,110..USA;RN10#,110,13#,VZN130

RH

 1
88892-89117

RN10#,110,13#,VZN130

LH

 1
88892-89117

RN10#,110,13#,VZN10#,110,13#

LH

 1
88892-89116

RN10#,110,13#,VZN10#,110,13#

RH

 1
Common parts
88467-95701
88688-35060
88688-35070
88688-35130
88688-89131
88688-89135
89467-14070
90091-20502
90091-20609
90099-32130
90119-06336
90119-06674
90179-06032
90467-08011
91656-61025
93385-56025
Linked diagrams
5353

ILLUST NO. 1 OF 2(8904-9108)RN13#,VZN13#

Click highlighted areas on diagram

MAKER OPTION

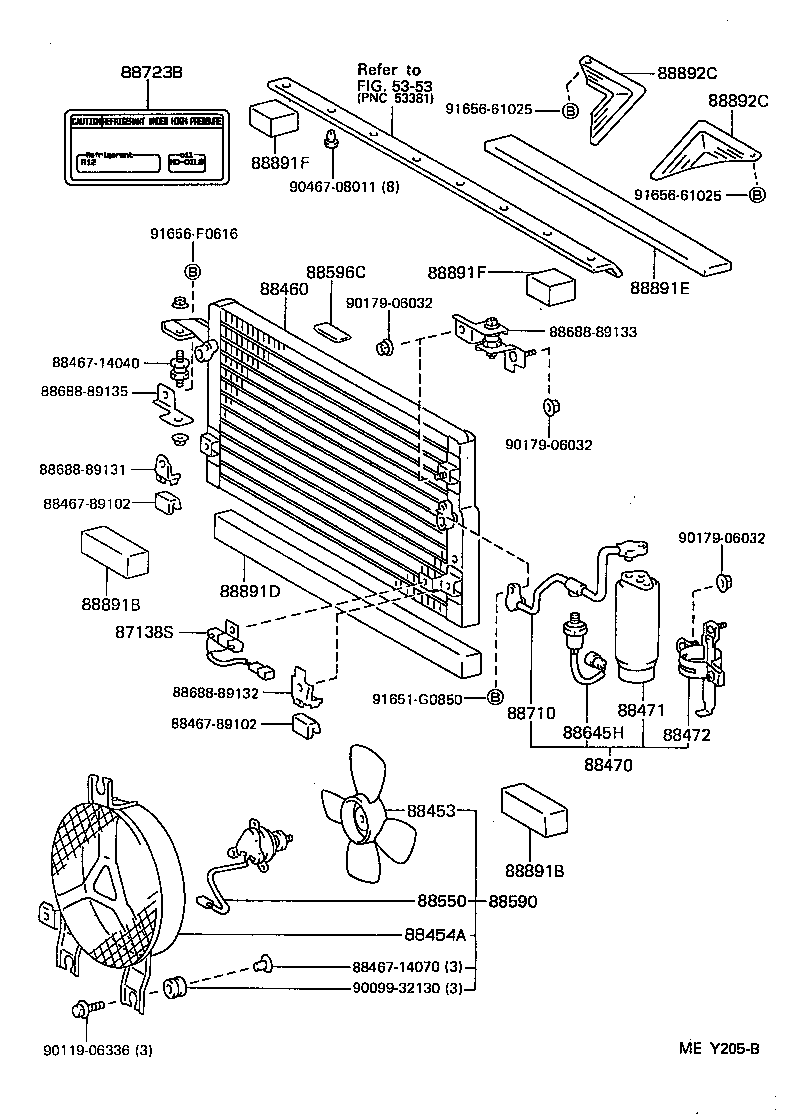

diagram 5353 87138S 88453 88454A 88460 8846714040 8846714070 8846789102 8846789102 88470 88471 88472 88550 88590 88596C 88645H 8868889131 8868889132 8868889133 8868889135 88710 88723B 88891B 88891B 88891D 88891E 88891F 88891F 88892C 88892C 9009932130 9011906336 9017906032 9017906032 9017906032 9046708011 91651G0850 9165661025 9165661025 91656F0616
Part # Description Qty Price
87138S - RESISTOR, BLOWER
88635-89107

RN13#,VZN13#

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010

RN131,VZN131

 1
88460 - CONDENSER ASSY, COOLER
88460-35060

RN131,VZN131

 1
88460-89117

RN13#,VZN13#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

RN130,VZN130;RN10#,110,131,VZN100,110,131..CND

 1
88471-16040

RN10#,110,13#,VZN10#,110,13#

 1
88471-16040

RN10#,110,13#,VZN10#,110,130

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89110

RN10#,110,13#,VZN10#,110,130

 1
88472-89110

RN10#,110,13#,VZN10#,110,13#

 1
88645H - SWITCH, PRESSURE NO.1
88645-89103

RN131,VZN131

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35010

RN13#,VZN13#

 1
88710-89121

RN13#,VZN13#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-17030

RN13#,VZN13#

 1
88891D - PACKING D (FOR COOLER)
88578-89125

RN10#,110,131..CND

 1
88891E - PACKING E (FOR COOLER)
88578-89112

RN10#,110,13#,VZN10#,110,130

 1
88892C - PLATE, CONDENSER, NO.1
88892-89116

VZN10#,110..USA;RN10#,110,13#,VZN130

RH

 1
88892-89117

RN10#,110,13#,VZN130

LH

 1
88892-89117

RN10#,110,13#,VZN10#,110,13#

LH

 1
88892-89116

RN10#,110,13#,VZN10#,110,13#

RH

 1
88892C - PLATE, CONDENSER, NO.1
88892-89116

VZN10#,110..USA;RN10#,110,13#,VZN130

RH

 1
88892-89117

RN10#,110,13#,VZN130

LH

 1
88892-89117

RN10#,110,13#,VZN10#,110,13#

LH

 1
88892-89116

RN10#,110,13#,VZN10#,110,13#

RH

 1
Common parts
88467-14040
88467-14070
88467-89102
88688-89131
88688-89132
88688-89133
88688-89135
90099-32130
90119-06336
90179-06032
90467-08011
91651-G0850
91656-61025
91656-F0616
Linked diagrams
5353

ILLUST NO. 1 OF 2(9108- )RN13#,VZN13#

Click highlighted areas on diagram

MAKER OPTION

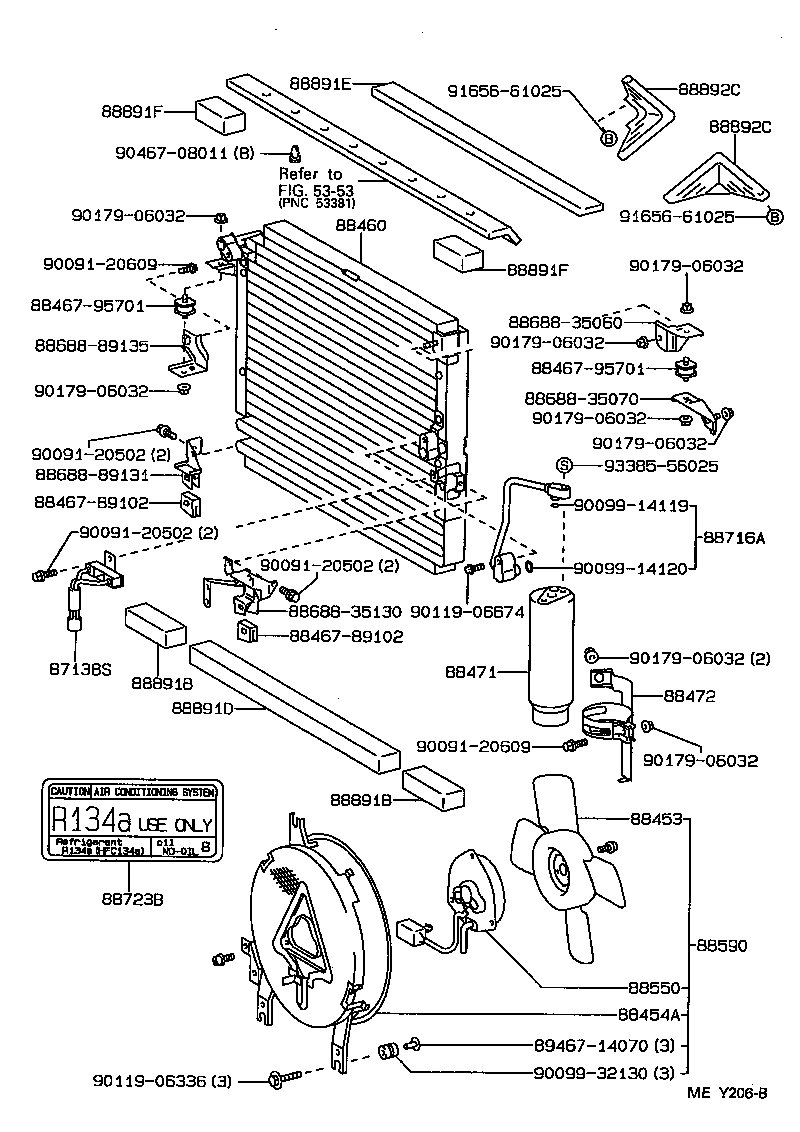

diagram 5353 87138S 88453 88454A 88460 8846789102 8846789102 8846795701 8846795701 88471 88472 88550 88590 8868835060 8868835070 8868835130 8868889131 8868889135 88716A 88723B 88891B 88891B 88891D 88891E 88891F 88891F 88892C 88892C 8946714070 9009120502 9009120502 9009120502 9009120609 9009120609 9009914119 9009914120 9009932130 9011906336 9011906674 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9046708011 9165661025 9165661025 9338556025
Part # Description Qty Price
87138S - RESISTOR, BLOWER
88635-89107

RN13#,VZN13#

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010

RN131,VZN131

 1
88460 - CONDENSER ASSY, COOLER
88460-35060

RN131,VZN131

 1
88460-89117

RN13#,VZN13#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040

RN130,VZN130;RN10#,110,131,VZN100,110,131..CND

 1
88471-16040

RN10#,110,13#,VZN10#,110,13#

 1
88471-16040

RN10#,110,13#,VZN10#,110,130

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-89110

RN10#,110,13#,VZN10#,110,130

 1
88472-89110

RN10#,110,13#,VZN10#,110,13#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-17030

RN13#,VZN13#

 1
88891D - PACKING D (FOR COOLER)
88578-89125

RN10#,110,131..CND

 1
88891E - PACKING E (FOR COOLER)
88578-89112

RN10#,110,13#,VZN10#,110,130

 1
88892C - PLATE, CONDENSER, NO.1
88892-89116

VZN10#,110..USA;RN10#,110,13#,VZN130

RH

 1
88892-89117

RN10#,110,13#,VZN130

LH

 1
88892-89117

RN10#,110,13#,VZN10#,110,13#

LH

 1
88892-89116

RN10#,110,13#,VZN10#,110,13#

RH

 1
88892C - PLATE, CONDENSER, NO.1
88892-89116

VZN10#,110..USA;RN10#,110,13#,VZN130

RH

 1
88892-89117

RN10#,110,13#,VZN130

LH

 1
88892-89117

RN10#,110,13#,VZN10#,110,13#

LH

 1
88892-89116

RN10#,110,13#,VZN10#,110,13#

RH

 1
Common parts
88467-89102
88467-95701
88688-35060
88688-35070
88688-35130
88688-89131
88688-89135
89467-14070
90091-20502
90091-20609
90099-14119
90099-14120
90099-32130
90119-06336
90119-06674
90179-06032
90467-08011
91656-61025
93385-56025
Linked diagrams
5353
