VZN131L-RJMGEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1993
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )RN13#,VZN13#

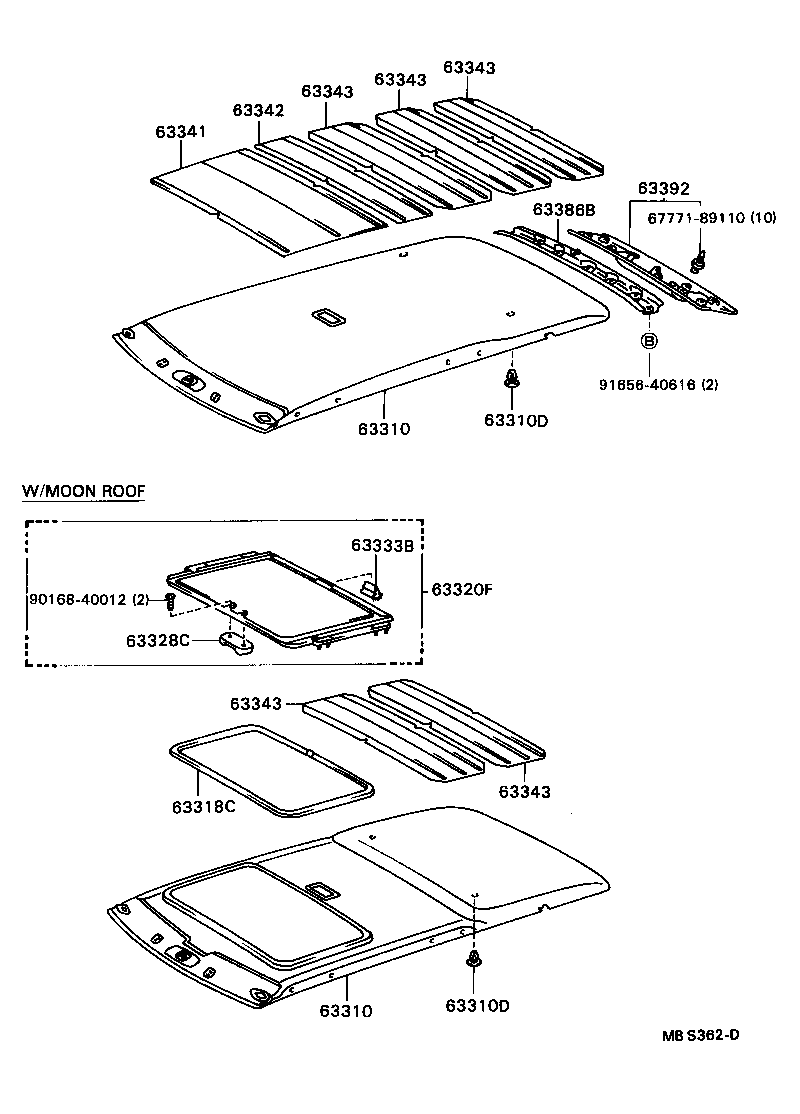

Click highlighted areas on diagram

diagram 63310 63310 63310D 63310D 63318C 63320F 63328C 63333B 63341 63342 63343 63343 63343 63343 63343 63386B 63392 6777189110 9016840012 9165640616
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63311-8913502

VZN13#

W(MOON ROOF),RED,TRIM3#

 1
63311-8913306

VZN13#

BROWN,TRIM4#

 1
63311-8913304

VZN13#

BLUE,TRIM8#

 1
63311-8913302

VZN13#

RED,TRIM3#

 1
63311-8913504

VZN13#

W(MOON ROOF),BLUE,TRIM8#

 1
63311-8913506

VZN13#

W(MOON ROOF),BROWN,TRIM4#

 1
63311-89133E0

VZN13#

TAN,TRIM4#

 1
63311-89135E0

VZN13#

W(MOON ROOF),TAN,TRIM4#

 1
63310 - HEADLINING ASSY, ROOF
63311-8913502

VZN13#

W(MOON ROOF),RED,TRIM3#

 1
63311-8913306

VZN13#

BROWN,TRIM4#

 1
63311-8913304

VZN13#

BLUE,TRIM8#

 1
63311-8913302

VZN13#

RED,TRIM3#

 1
63311-8913504

VZN13#

W(MOON ROOF),BLUE,TRIM8#

 1
63311-8913506

VZN13#

W(MOON ROOF),BROWN,TRIM4#

 1
63311-89133E0

VZN13#

TAN,TRIM4#

 1
63311-89135E0

VZN13#

W(MOON ROOF),TAN,TRIM4#

 1
63310D - CLIP, ROOF HEADLINING
90467-0911006

RN13#,VZN13#

BROWN,TRIM4#

 4
90467-09110E0

RN13#,VZN13#

TAN,TRIM4#

 4
90467-0911002

RN13#,VZN13#

RED,TRIM3#

 4
90467-0911004

RN13#,VZN13#

BLUE,TRIM8#

 4
63310D - CLIP, ROOF HEADLINING
90467-0911006

RN13#,VZN13#

BROWN,TRIM4#

 4
90467-09110E0

RN13#,VZN13#

TAN,TRIM4#

 4
90467-0911002

RN13#,VZN13#

RED,TRIM3#

 4
90467-0911004

RN13#,VZN13#

BLUE,TRIM8#

 4
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-8910104

RN13#,VZN13#

BLUE,TRIM8#

 1
63318-89101E1

RN13#,VZN13#

TAN,TRIM4#

 1
63318-8910102

RN13#,VZN13#

RED,TRIM3#

 1
63318-8910106

RN13#,VZN13#

BROWN,TRIM4#

 1
63320F - HEADLINING ASSY, SUN ROOF
63320-8910103

RN13#,VZN13#

GRAY,TRIM1#

 1
63320-3501004

RN13#,VZN13#

BLUE,TRIM8#

 1
63320-3501006

RN13#,VZN13#

BROWN,TRIM4#

 1
63320-3501002

RN13#,VZN13#

RED,TRIM3#

 1
63320-35010E0

RN13#,VZN13#

TAN,TRIM4#

 1
63320-8910106

RN13#,VZN13#

BROWN,TRIM4#

 1
63320-8910104

RN13#,VZN13#

BLUE,TRIM8#

 1
63320-8910102

RN13#,VZN13#

RED,TRIM3#

 1
63328C - KNOB, SUNSHADE TRIM
63328-8910102

RN13#,VZN13#

RED,TRIM3#

 1
63328-8910104

RN13#,VZN13#

BLUE,TRIM8#

 1
63328-89101E0

RN13#,VZN13#

TAN,TRIM4#

 1
63328-8910106

RN13#,VZN13#

BROWN,TRIM4#

 1
63328-8910104

VZN13#;RN13#..4D

BLUE,TRIM8#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-8910302

RN13#,VZN13#

RED,TRIM3#

 1
63392-8910306

RN13#,VZN13#

BROWN,TRIM4#

 1
63392-8910406

RN13#,VZN13#

W(REAR WIPER),BROWN,TRIM4#

 1
63392-35010E0

RN13#,VZN13#

TAN,TRIM4#

 1
63392-8910403

RN13#,VZN13#

W(REAR WIPER),GRAY,TRIM1#

 1
63392-35010B0

RN13#,VZN13#

GRAY,TRIM1#

 1
63392-8910402

RN13#,VZN13#

W(REAR WIPER),RED,TRIM3#

 1
63392-8910404

RN13#,VZN13#

W(REAR WIPER),BLUE,TRIM8#

 1
63392-8910304

RN13#,VZN13#

BLUE,TRIM8#

 1
63392-8910303

RN13#,VZN13#

GRAY,TRIM1#

 1
Common parts
67771-89110
90168-40012
91656-40616
