VZN131L-RJMGEK (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1993
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )RN13#,VZN13#

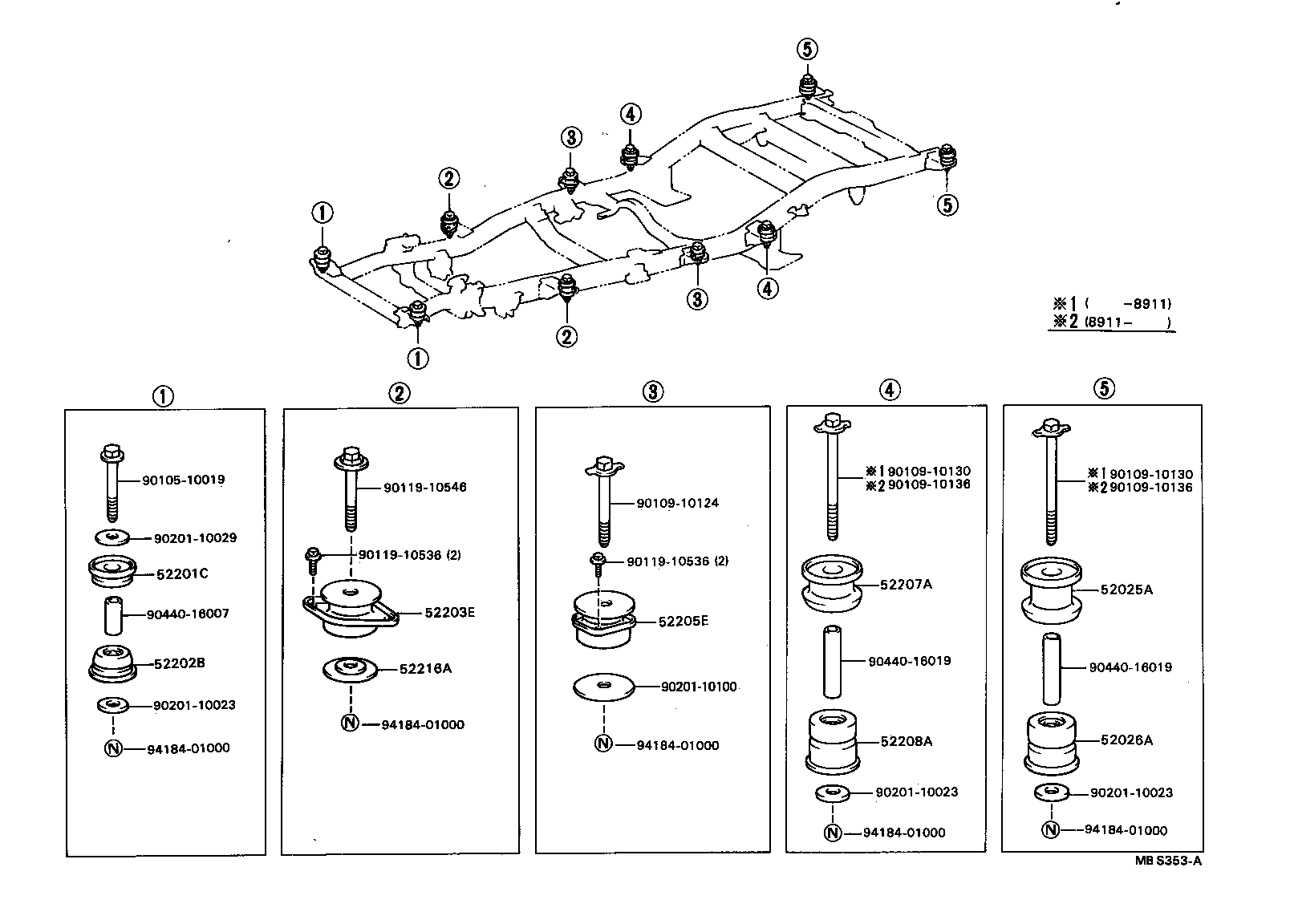

Click highlighted areas on diagram

diagram 52025A 52026A 52201C 52202B 52203E 52205E 52207A 52208A 52216A 9010510019 9010910124 9010910130 9010910130 9010910136 9010910136 9011910536 9011910536 9011910546 9020110023 9020110023 9020110023 9020110029 9020110100 9044016007 9044016019 9044016019 9418401000 9418401000 9418401000 9418401000 9418401000
Part # Description Qty Price
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-35150

RN13#,VZN13#

 2
52216A - STOPPER, CAB MOUNTING CUSHION
52216-35010

RN10#,110,13#,VZN10#,110,13#

 2
Common parts
90105-10019
90109-10124
90109-10130
90109-10136
90119-10536
90119-10546
90201-10023
90201-10029
90201-10100
90440-16007
90440-16019
94184-01000
