VZN130L-GKPGEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Nov 1995
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )RN13#,VZN13#

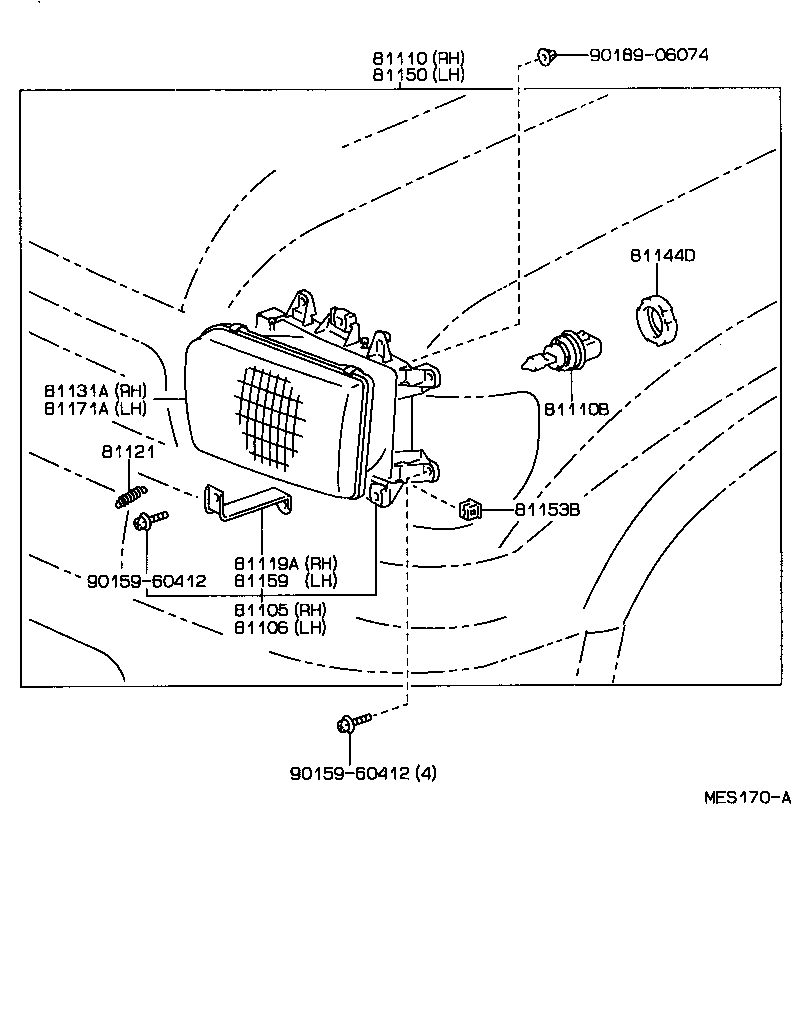

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81119A 81121 81131A 81144D 81150 81153B 81159 81171A 9015960412 9015960412 9018906074
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-35100

RN13#,VZN13#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-35100

RN13#,VZN13#

 1
81110 - HEADLAMP ASSY, RH
81110-89162

VZN100,110..DLX;RN10#,110,13#,VZN105

 1
81110-35170

VZN110,13#..SR5

 1
81110-89150

VZN100,110..DLX;RN10#,110,13#,VZN105

SEALD BEAM HEADLAMP

 1
81110-89155

VZN100,110,13#..SR5

 1
81110-35100

RN13#,VZN13#

 1
81110-89155

VZN100,110..DLX;RN10#,110,13#,VZN105

HALOGEN SEALD BEAM HEADLAMP

 1
81110-35170

VZN110..DLX;RN10#,110,13#,VZN10#

HALOGEN SEALD BEAM HEADLAMP

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13032

RN13#,VZN13#

12V 65/45W,*HAL,*WH,PLANT NO.P11

 2
90981-13068

RN13#,VZN13#

12V 65/45W,*HAL,*WH,PLANT NO.A51-A54

 2
81119A - BRACKET ASSY, HEAD LAMP, RH
81119-35100

RN13#,VZN13#

 1
81121 - SPRING, HEADLAMP TENSION
81121-14670

RN10#,110,13#,VZN10#,110,13#

 2
90075-25502

RN13#,VZN13#

 1
81131A - UNIT, HEADLAMP, RH
81130-35100

RN13#,VZN13#

 1
81144D - CAP, HEADLAMP LOCKING
90075-99010

RN13#,VZN13#

 2
81150 - HEADLAMP ASSY, LH
81150-89155

VZN100,110..DLX;RN10#,110,13#,VZN105

HALOGEN SEALD BEAM HEADLAMP

 1
81150-35150

VZN110..DLX;RN10#,110,13#,VZN10#

HALOGEN SEALD BEAM HEADLAMP

 1
81150-89155

VZN100,110,13#..SR5

 1
81150-35150

VZN110,13#..SR5

 1
81150-89162

VZN100,110..DLX;RN10#,110,13#,VZN105

 1
81150-35100

RN13#,VZN13#

 1
81150-89150

VZN100,110..DLX;RN10#,110,13#,VZN105

SEALD BEAM HEADLAMP

 1
81153B - BEARING, HEADLAMP
81128-22630

RN13#,VZN13#

 3
81159 - BRACKET ASSY, HEAD LAMP, LH
81119-35100

RN13#,VZN13#

 1
81171A - UNIT, HEADLAMP, LH
81170-35100

RN13#,VZN13#

 1
Common parts
90159-60412
90189-06074

(8808-9108) ; (9108- )RN10#,110,VZN10#,110

Click highlighted areas on diagram

diagram 81110 81110S 81111A 81113 81121 81126 8113612571 81150 81151A 81153 81195
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-89162

VZN100,110..DLX;RN10#,110,13#,VZN105

 1
81110-35170

VZN110,13#..SR5

 1
81110-89150

VZN100,110..DLX;RN10#,110,13#,VZN105

SEALD BEAM HEADLAMP

 1
81110-89155

VZN100,110,13#..SR5

 1
81110-35100

RN13#,VZN13#

 1
81110-89155

VZN100,110..DLX;RN10#,110,13#,VZN105

HALOGEN SEALD BEAM HEADLAMP

 1
81110-35170

VZN110..DLX;RN10#,110,13#,VZN10#

HALOGEN SEALD BEAM HEADLAMP

 1
81110S - SEALED BEAM UNIT, NO.1
90981-04004

VZN100,110..DLX;RN10#,110,13#,VZN105

12V 65/55W,*WB

 2
90981-04020

RN13#,VZN110,13#..SR5

12V 65/35W,*HAL,*WB

 2
90981-04020

VZN100,110..DLX;RN10#,110,13#,VZN105

12V 65/35W,*HAL,*WB

 2
90981-04043

RN13#,VZN110,13#..SR5

12V 65/55W,*HAL,*WB

 2
90981-04020

VZN100,110,13#..SR5

12V 65/35W,*HAL,*WB

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-16020

RN10#,110,13#,VZN10#,110,13#

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-89149

RN10#,110,13#,VZN10#,110,13#

 1
81121 - SPRING, HEADLAMP TENSION
81121-14670

RN10#,110,13#,VZN10#,110,13#

 2
90075-25502

RN13#,VZN13#

 1
81126 - PLATE, HEADLAMP
81124-89101

RN10#,110,13#,VZN10#,110,13#

 8
81150 - HEADLAMP ASSY, LH
81150-89155

VZN100,110..DLX;RN10#,110,13#,VZN105

HALOGEN SEALD BEAM HEADLAMP

 1
81150-35150

VZN110..DLX;RN10#,110,13#,VZN10#

HALOGEN SEALD BEAM HEADLAMP

 1
81150-89155

VZN100,110,13#..SR5

 1
81150-35150

VZN110,13#..SR5

 1
81150-89162

VZN100,110..DLX;RN10#,110,13#,VZN105

 1
81150-35100

RN13#,VZN13#

 1
81150-89150

VZN100,110..DLX;RN10#,110,13#,VZN105

SEALD BEAM HEADLAMP

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-16020

RN10#,110,13#,VZN10#,110,13#

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-89149

RN10#,110,13#,VZN10#,110,13#

 1
81195 - SCREW, HEADLAMP
81195-89102

RN10#,110,13#,VZN10#,110,13#

 4
81195-89101

RN10#,110,13#,VZN10#,110,13#

 4
Common parts
81136-12571
