VZN130L-GKPGEA (1989)
Toyota 4-Runner Truck (Jpp)

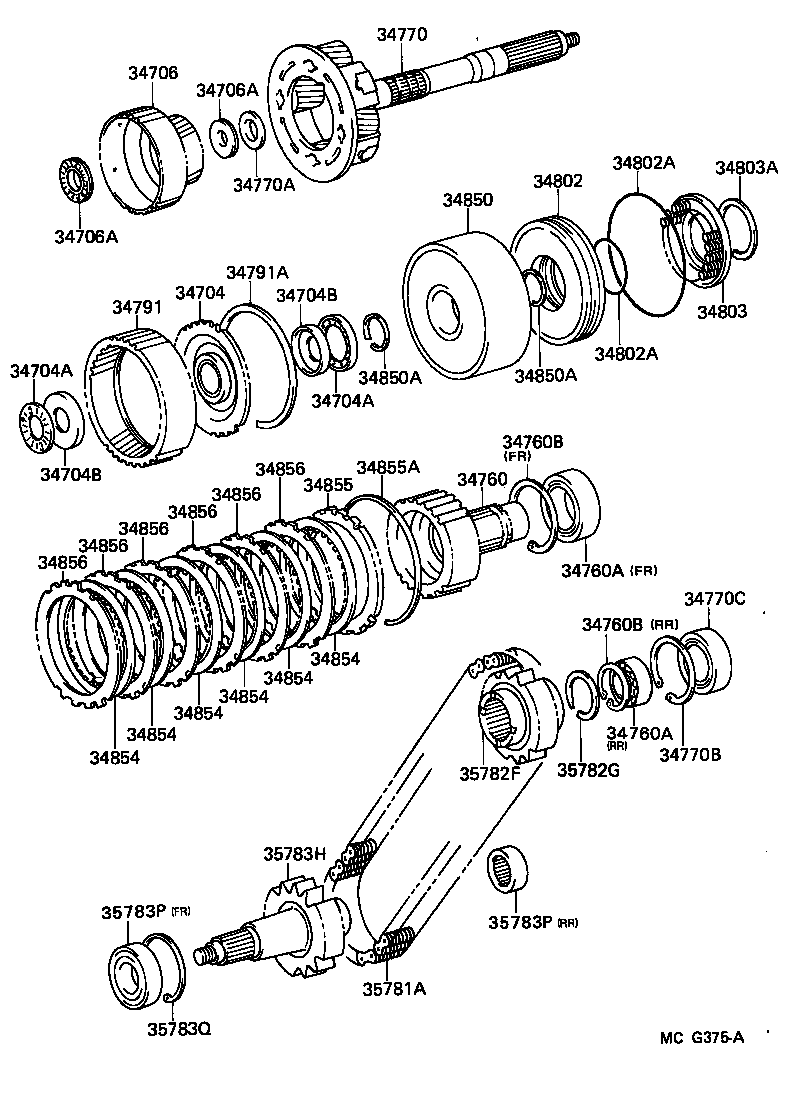

(8808-8908)4FC ; (8908- )VZN105,110,13#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34704 - FLANGE SUB-ASSY, TRANSFER PLANETARY RING GEAR | ||||
| 34704-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34704-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34704-35010 |
VZN13#..4FC |
1 | ||
| 34704A - BEARING, THRUST (FOR TRANSFER PLANETARY RING GEAR FLANG | ||||
| 90374-35002 |
VZN13#..4FC FR |
1 | ||
| 90374-35002 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90374-38001 |
VZN13#..4FC RR |
1 | ||
| 90374-38001 |
VZN105,110,13#..4FC RR |
1 | ||
| 90374-38001 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 90374-35002 |
VZN105,110,13#..4FC FR |
1 | ||
| 34704A - BEARING, THRUST (FOR TRANSFER PLANETARY RING GEAR FLANG | ||||
| 90374-35002 |
VZN13#..4FC FR |
1 | ||
| 90374-35002 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90374-38001 |
VZN13#..4FC RR |
1 | ||
| 90374-38001 |
VZN105,110,13#..4FC RR |
1 | ||
| 90374-38001 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 90374-35002 |
VZN105,110,13#..4FC FR |
1 | ||
| 34704B - RACE, THRUST BEARING (FOR PLANETARY RING GEAR FLANGE) | ||||
| 35789-35040 |
VZN105,110,13#..4FC |
2 | ||
| 35789-35040 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 35789-35040 |
VZN13#..4FC |
2 | ||
| 34704B - RACE, THRUST BEARING (FOR PLANETARY RING GEAR FLANGE) | ||||
| 35789-35040 |
VZN105,110,13#..4FC |
2 | ||
| 35789-35040 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 35789-35040 |
VZN13#..4FC |
2 | ||
| 34706 - GEAR SUB-ASSY, TRANSFER PLANETARY SUN | ||||
| 34706-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34706-35010 |
VZN13#..4FC |
1 | ||
| 34706-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34706A - BEARING, THRUST (FOR TRANSFER PLANETARY SUN GEAR) | ||||
| 90374-30007 |
VZN13#..4FC FR |
1 | ||
| 90374-19001 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 90374-19001 |
VZN105,110,13#..4FC RR |
1 | ||
| 90374-19001 |
VZN13#..4FC RR |
1 | ||
| 90374-30007 |
VZN105,110,13#..4FC FR |
1 | ||
| 90374-30007 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 34706A - BEARING, THRUST (FOR TRANSFER PLANETARY SUN GEAR) | ||||
| 90374-30007 |
VZN13#..4FC FR |
1 | ||
| 90374-19001 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 90374-19001 |
VZN105,110,13#..4FC RR |
1 | ||
| 90374-19001 |
VZN13#..4FC RR |
1 | ||
| 90374-30007 |
VZN105,110,13#..4FC FR |
1 | ||
| 90374-30007 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 34760 - SHAFT ASSY, TRANSFER FRONT OUTPUT | ||||
| 34760-35020 |
VZN105,110,13#..4FC |
1 | ||
| 34760-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34760-35020 |
VZN13#..4FC |
1 | ||
| 34760A - BEARING (FOR TRANSFER FRONT OUTPUT SHAFT) | ||||
| 90365-45001 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 90365-45001 |
VZN105,110,13#..4FC RR |
1 | ||
| 90363-51002 |
VZN13#..4FC FR |
1 | ||
| 90363-51002 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90365-45001 |
VZN13#..4FC RR |
1 | ||
| 90363-51002 |
VZN105,110,13#..4FC FR |
1 | ||
| 34760A - BEARING (FOR TRANSFER FRONT OUTPUT SHAFT) | ||||
| 90365-45001 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 90365-45001 |
VZN105,110,13#..4FC RR |
1 | ||
| 90363-51002 |
VZN13#..4FC FR |
1 | ||
| 90363-51002 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90365-45001 |
VZN13#..4FC RR |
1 | ||
| 90363-51002 |
VZN105,110,13#..4FC FR |
1 | ||
| 34760B - RING, HOLE SNAP (FOR TRANSFER FRONT OUTPUT SHAFT BEARIN | ||||
| 90521-84001 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90521-80002 |
VZN13#..4FC RR |
1 | ||
| 90521-80002 |
VZN105,110,13#..4FC RR |
1 | ||
| 90521-84001 |
VZN13#..4FC FR |
1 | ||
| 90521-84001 |
VZN105,110,13#..4FC FR |
1 | ||
| 90521-80002 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 34760B - RING, HOLE SNAP (FOR TRANSFER FRONT OUTPUT SHAFT BEARIN | ||||
| 90521-84001 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90521-80002 |
VZN13#..4FC RR |
1 | ||
| 90521-80002 |
VZN105,110,13#..4FC RR |
1 | ||
| 90521-84001 |
VZN13#..4FC FR |
1 | ||
| 90521-84001 |
VZN105,110,13#..4FC FR |
1 | ||
| 90521-80002 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 34770 - SHAFT ASSY, TRANSFER REAR OUTPUT | ||||
| 34770-35012 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34770-35012 |
VZN105,110,13#..4FC |
1 | ||
| 34770-35012 |
VZN13#..4FC |
1 | ||
| 34770A - RACE, THRUST BEARING (FOR TRANSFER REAR OUTPUT SHAFT) | ||||
| 35789-35030 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35789-35030 |
VZN105,110,13#..4FC |
1 | ||
| 35789-35030 |
VZN13#..4FC |
1 | ||
| 34770B - RING, SNAP (FOR TRANSFER REAR OUTPUT SHAFT) | ||||
| 90521-74001 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90521-74001 |
VZN105,110,13#..4FC |
1 | ||
| 90521-74001 |
VZN13#..4FC |
1 | ||
| 34770C - BEARING (FOR TRANSFER REAR OUTPUT SHAFT) | ||||
| 90363-30046 |
VZN105,110,13#..4FC |
1 | ||
| 90363-30046 |
VZN13#..4FC |
1 | ||
| 90363-30046 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34791 - GEAR, TRANSFER PLANETARY RING | ||||
| 34791-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34791-35010 |
VZN13#..4FC |
1 | ||
| 34791-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34791A - RING, HOLE SNAP (FOR TRANSFER PLANETARY RING GEAR) | ||||
| 90521-99039 |
VZN13#..4FC |
1 | ||
| 90521-99039 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90521-99039 |
VZN105,110,13#..4FC |
1 | ||
| 34802 - PISTON SUB-ASSY, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34802-35011 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34802-35011 |
VZN105,110,13#..4FC |
1 | ||
| 34802-35011 |
VZN13#..4FC |
1 | ||
| 34802A - RING, O (FOR TRANSFER FRONT DRIVE CLUTCH PISTON) | ||||
| 90301-99041 |
RN106,110,13#,VZN105,110,13#..4FC OUTER |
1 | ||
| 90301-60003 |
VZN13#..4FC INNER |
1 | ||
| 90301-99041 |
VZN13#..4FC OUTER |
1 | ||
| 90301-60003 |
RN106,110,13#,VZN105,110,13#..4FC INNER |
1 | ||
| 90301-99041 |
VZN105,110,13#..4FC OUTER |
1 | ||
| 90301-60003 |
VZN105,110,13#..4FC INNER |
1 | ||
| 34802A - RING, O (FOR TRANSFER FRONT DRIVE CLUTCH PISTON) | ||||
| 90301-99041 |
RN106,110,13#,VZN105,110,13#..4FC OUTER |
1 | ||
| 90301-60003 |
VZN13#..4FC INNER |
1 | ||
| 90301-99041 |
VZN13#..4FC OUTER |
1 | ||
| 90301-60003 |
RN106,110,13#,VZN105,110,13#..4FC INNER |
1 | ||
| 90301-99041 |
VZN105,110,13#..4FC OUTER |
1 | ||
| 90301-60003 |
VZN105,110,13#..4FC INNER |
1 | ||
| 34803 - SPRING SUB-ASSY, FRONT DRIVE CLUTCH RETURN | ||||
| 34803-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34803-35010 |
VZN13#..4FC |
1 | ||
| 34803-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34803A - RING, SHAFT SNAP (FOR FRONT DRIVE CLUTCH RETURN SPRING) | ||||
| 90520-56001 |
VZN105,110,13#..4FC |
1 | ||
| 90520-56001 |
VZN13#..4FC |
1 | ||
| 90520-56001 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34850 - DRUM ASSY, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34850-35011 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34850-35011 |
VZN105,110,13#..4FC |
1 | ||
| 34850-35011 |
VZN13#..4FC |
1 | ||
| 34850A - RING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE (CLUTCH DRUM | ||||
| 90520-32003 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 90520-32003 |
VZN13#..4FC |
2 | ||
| 90520-32003 |
VZN105,110,13#..4FC |
2 | ||
| 34850A - RING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE (CLUTCH DRUM | ||||
| 90520-32003 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 90520-32003 |
VZN13#..4FC |
2 | ||
| 90520-32003 |
VZN105,110,13#..4FC |
2 | ||
| 34854 - DISC, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34653-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34653-35020 |
VZN13#..4FC |
6 | ||
| 34653-35020 |
VZN105,110,13#..4FC |
6 | ||
| 34854 - DISC, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34653-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34653-35020 |
VZN13#..4FC |
6 | ||
| 34653-35020 |
VZN105,110,13#..4FC |
6 | ||
| 34854 - DISC, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34653-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34653-35020 |
VZN13#..4FC |
6 | ||
| 34653-35020 |
VZN105,110,13#..4FC |
6 | ||
| 34854 - DISC, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34653-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34653-35020 |
VZN13#..4FC |
6 | ||
| 34653-35020 |
VZN105,110,13#..4FC |
6 | ||
| 34854 - DISC, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34653-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34653-35020 |
VZN13#..4FC |
6 | ||
| 34653-35020 |
VZN105,110,13#..4FC |
6 | ||
| 34854 - DISC, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34653-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34653-35020 |
VZN13#..4FC |
6 | ||
| 34653-35020 |
VZN105,110,13#..4FC |
6 | ||
| 34855 - FLANGE, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34655-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34655-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34655-35010 |
VZN13#..4FC |
1 | ||
| 34855A - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE CLUTCH FLANGE | ||||
| 90521-99036 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90521-99036 |
VZN13#..4FC |
1 | ||
| 90521-99036 |
VZN105,110,13#..4FC |
1 | ||
| 34856 - PLATE, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34656-35010 |
VZN105,110,13#..4FC |
6 | ||
| 34656-35010 |
VZN13#..4FC |
6 | ||
| 34656-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34856 - PLATE, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34656-35010 |
VZN105,110,13#..4FC |
6 | ||
| 34656-35010 |
VZN13#..4FC |
6 | ||
| 34656-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34856 - PLATE, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34656-35010 |
VZN105,110,13#..4FC |
6 | ||
| 34656-35010 |
VZN13#..4FC |
6 | ||
| 34656-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34856 - PLATE, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34656-35010 |
VZN105,110,13#..4FC |
6 | ||
| 34656-35010 |
VZN13#..4FC |
6 | ||
| 34656-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34856 - PLATE, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34656-35010 |
VZN105,110,13#..4FC |
6 | ||
| 34656-35010 |
VZN13#..4FC |
6 | ||
| 34656-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 34856 - PLATE, TRANSFER FRONT DRIVE CLUTCH | ||||
| 34656-35010 |
VZN105,110,13#..4FC |
6 | ||
| 34656-35010 |
VZN13#..4FC |
6 | ||
| 34656-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
6 | ||
| 35781A - CHAIN, FRONT DRIVE | ||||
| 35781-35010 |
VZN13#..4FC |
1 | ||
| 35781-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35781-35010 |
VZN105,110,13#..4FC |
1 | ||
| 35782F - SPROCKET, DRIVE | ||||
| 35782-35020 |
VZN105,110,13#..4FC |
1 | ||
| 35782-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35782-35020 |
VZN13#..4FC |
1 | ||
| 35782G - RING, SHAFT SNAP(FOR DRIVE SPROCKET) | ||||
| 90520-45002 |
VZN105,110,13#..4FC |
1 | ||
| 90520-45002 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90520-45002 |
VZN13#..4FC |
1 | ||
| 35783H - SPROKET, DRIVEN | ||||
| 35783-35020 |
VZN13#..4FC |
1 | ||
| 35783-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35783-35020 |
VZN105,110,13#..4FC |
1 | ||
| 35783P - BEARING(FOR TRANSFER DRIVEN SPROKET) | ||||
| 90363-30046 |
VZN13#..4FC FR |
1 | ||
| 90364-35006 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 90363-30046 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90364-35006 |
VZN13#..4FC RR |
1 | ||
| 90364-35006 |
VZN105,110,13#..4FC RR |
1 | ||
| 90363-30046 |
VZN105,110,13#..4FC FR |
1 | ||
| 35783P - BEARING(FOR TRANSFER DRIVEN SPROKET) | ||||
| 90363-30046 |
VZN13#..4FC FR |
1 | ||
| 90364-35006 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 90363-30046 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90364-35006 |
VZN13#..4FC RR |
1 | ||
| 90364-35006 |
VZN105,110,13#..4FC RR |
1 | ||
| 90363-30046 |
VZN105,110,13#..4FC FR |
1 | ||
| 35783Q - RING, HOLE SNAP(FOR TRANSFER DRIVEN SPROKET BEARING) | ||||
| 90521-74001 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90521-74001 |
VZN105,110,13#..4FC |
1 | ||
| 90521-74001 |
VZN13#..4FC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
