VZN130L-GKMGEA (1989)
Toyota 4-Runner Truck (Jpp)

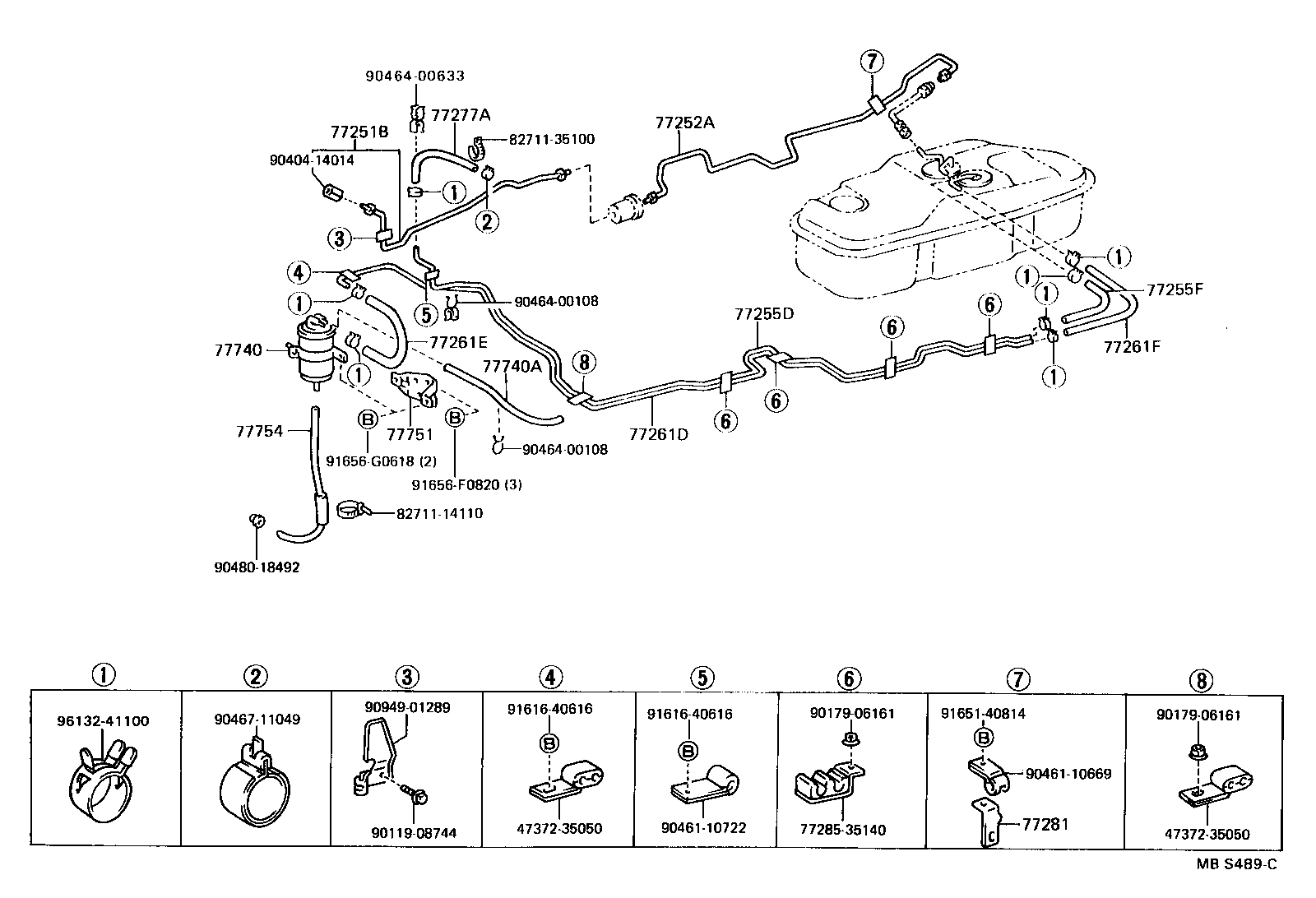

ILLUST NO. 2 OF 2(8904- )VZN13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-35090 |
VZN10#,110,13# |
1 | ||
| 77251-35660 |
VZN10#,110,13# |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-35250 |
VZN13# |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-35440 |
RN13#,VZN13# |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 90445-12231 |
RN13#,VZN13# L=290 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-35350 |
RN13#,VZN13# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-35130 |
VZN10#,110,13# L=260 |
1 | ||
| 95333-06030 |
RN10#,110,13# *H,L=300 |
1 | ||
| 95333-06030 |
RN10#,110,13# *H,L=300 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77209-35310 |
RN13#,VZN13# L=285 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-35100 |
RN10#,110,13# *H,L=600 |
1 | ||
| 23271-35040 |
RN10#,110,13# *H,L=600 |
1 | ||
| 90447-12075 |
VZN10#,110,13# L=400 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-35020 |
RN13#,VZN13# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35260 |
RN13#,VZN13# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
VZN10#,110,13# L=600 |
1 | ||
| 90999-92003 |
VZN10#,110,13# L=600 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-35040 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35180 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 47372-35050 | ||||
| 77285-35140 | ||||
| 82711-14110 | ||||
| 82711-35100 | ||||
| 90119-08744 | ||||
| 90179-06161 | ||||
| 90404-14014 | ||||
| 90461-10669 | ||||
| 90461-10722 | ||||
| 90464-00108 | ||||
| 90464-00633 | ||||
| 90467-11049 | ||||
| 90480-18492 | ||||
| 90949-01289 | ||||
| 91616-40616 | ||||
| 91651-40814 | ||||
| 91656-F0820 | ||||
| 91656-G0618 | ||||
| 96132-41100 | ||||

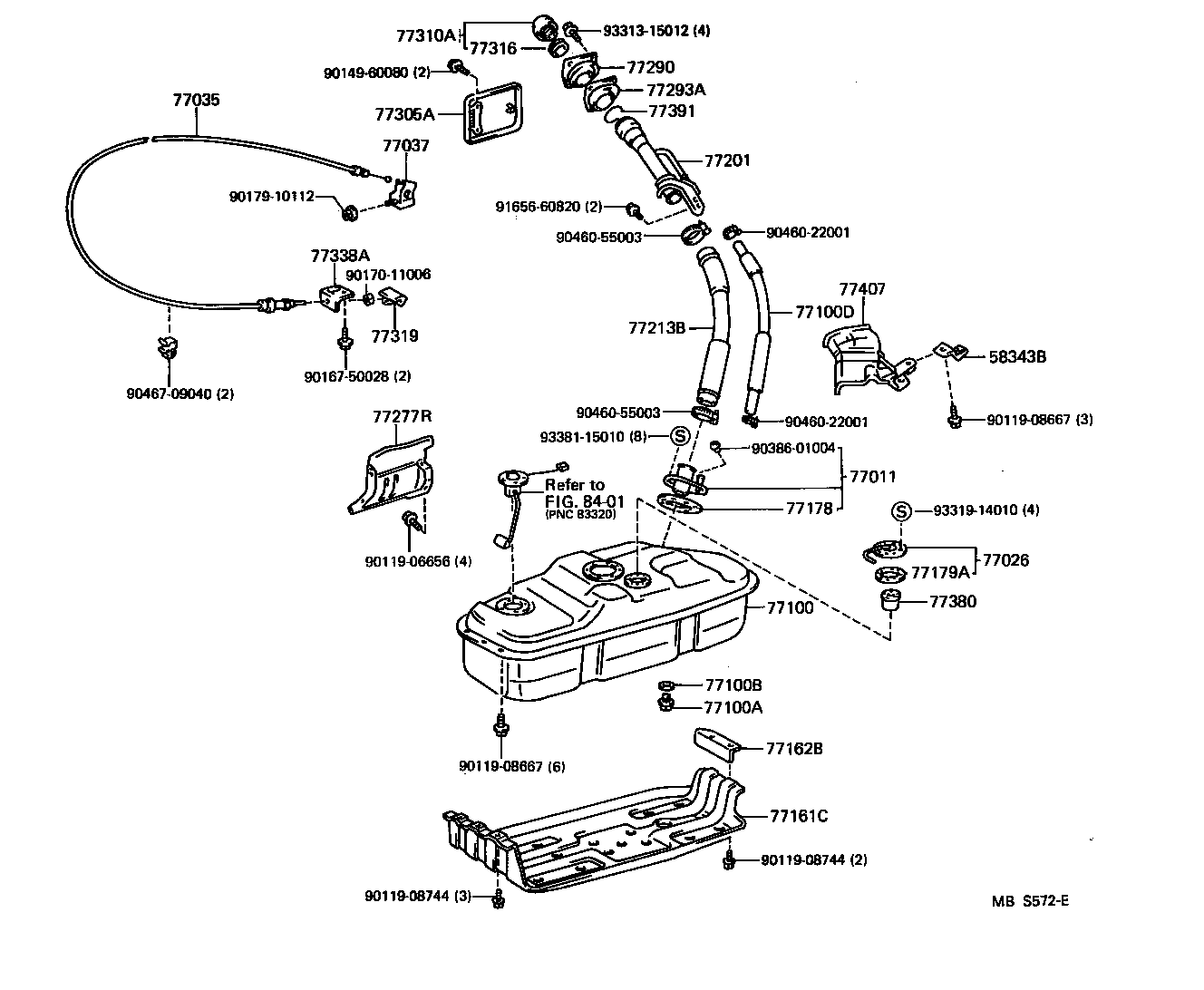

ILLUST NO. 1 OF 2(8904- )RN13#,VZN13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58343B - BRACKET, FUEL HOSE PROTECTOR, FRONT | ||||
| 77778-35020 |
RN13#,VZN13# |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-35140 |
RN13#,VZN13# |
1 | ||
| 77011-35150 |
RN13#,VZN13# |
1 | ||
| 77026 - COVER SUB-ASSY, FUEL SENDER GAGE | ||||
| 77026-35060 |
RN13#,VZN13# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-89116 |
RN13#,VZN13# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-89103 |
RN13#,VZN13# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-35981 |
RN13#,VZN13# |
1 | ||
| 77001-35998 |
VZN130 W(10.5R15 7JJ TIRE) |
1 | ||
| 77001-35999 |
VZN130 W(COLD SPEC & 10.5R15 7JJ TIRE) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77408-35040 |
RN13#,VZN13# L=507 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35120 |
VZN13# W(10.5R15 7JJ TIRE) |
1 | ||
| 77161-35110 |
RN13#,VZN13# |
1 | ||
| 77162B - BRACKET, FUEL TANK REAR PROTECTOR | ||||
| 77162-35060 |
RN13#,VZN13# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-35030 |
RN13#,VZN13# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
RN13#,VZN13# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35370 |
RN13#,VZN13# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-35230 |
RN13#,VZN13# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-89101 |
RN13#,VZN13# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-89102 |
RN13#,VZN13# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-89103 |
RN13#,VZN13# |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77350-35020 |
RN13#,VZN13# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 77310-35080 |
RN10#..W;RN10#..4FC;RN110..USA;RN10#..G..USA;RN110..W..CND;RN13#,VZN10#,110,13# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 77316-16010 |
RN10#..W;RN10#..4FC;RN110..USA;RN10#..G..USA;RN110..W..CND;RN13#,VZN10#,110,13# |
1 | ||
| 77319 - KNOB, FUEL TANK CAP | ||||
| 77319-8910303 |
RN13#,VZN13# GRAY,TRIM1# |
1 | ||
| 77319-8910302 |
RN13#,VZN13# RED,TRIM3# |
1 | ||
| 77319-89103S4 |
RN13#,VZN13# GRAY,TRIM1# |
1 | ||
| 77319-89103E0 |
RN13#,VZN13# TAN,TRIM4# |
1 | ||
| 77319-89103R9 |
RN13#,VZN13# BLUE,TRIM8# |
1 | ||
| 77319-89103E2 |
RN13#,VZN13# OAK,TRIM4# |
1 | ||
| 77319-8910304 |
RN13#,VZN13# BLUE,TRIM8# |
1 | ||
| 77319-8910306 |
RN13#,VZN13# BROWN,TRIM4# |
1 | ||
| 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD | ||||
| 77338-89105 |
RN13#,VZN13# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
RN13#,VZN13# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
RN13#,VZN13# |
1 | ||
| 77407 - PROTECTOR SUB-ASSY, FUEL HOSE | ||||
| 77407-35010 |
RN13#,VZN13# |
1 | ||
| Common parts | ||||
| 90119-06656 | ||||
| 90119-08667 | ||||
| 90119-08744 | ||||
| 90149-60080 | ||||
| 90167-50028 | ||||
| 90170-11006 | ||||
| 90179-10112 | ||||
| 90386-01004 | ||||
| 90460-22001 | ||||
| 90460-55003 | ||||
| 90467-09040 | ||||
| 91656-60820 | ||||
| 93313-15012 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
