VZN120L-GKPGEA (1989)
Toyota 4-Runner Truck (Jpp)
Production
Apr 1989
-
Nov 1995
Engine
3VZE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8904- )RN12#,VZN120..JPP

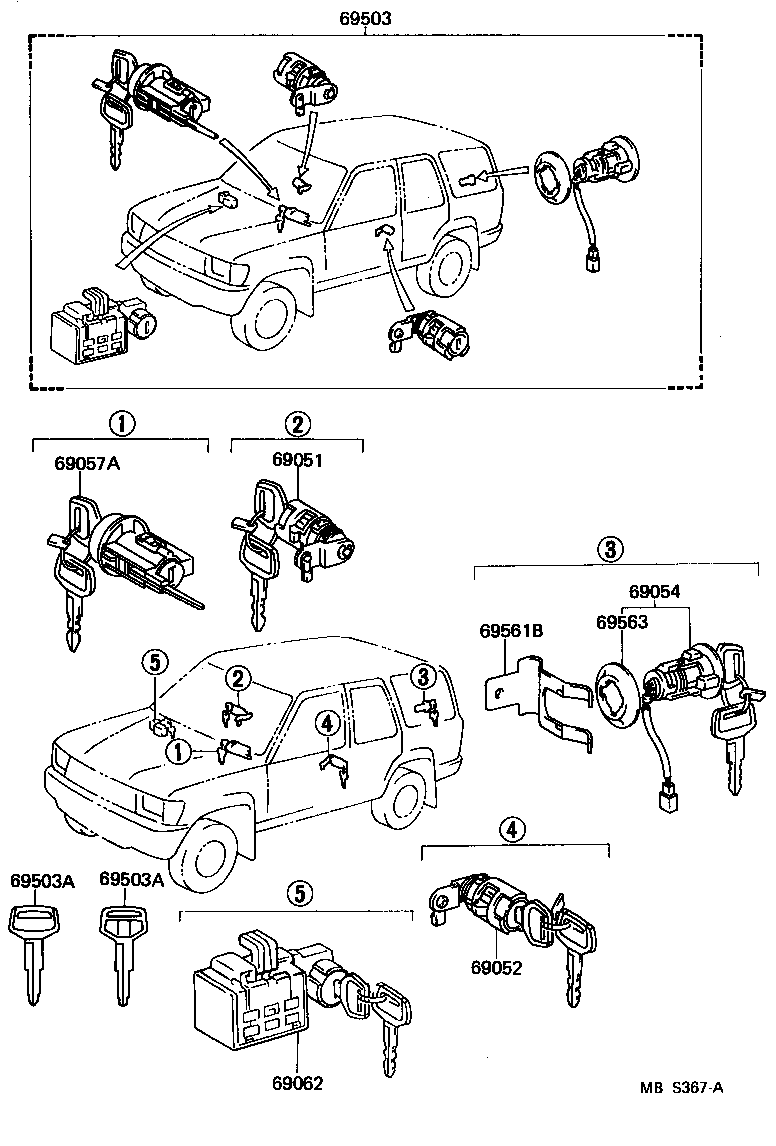

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-35040 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-35040 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-89104 |
RN12#,VZN120 |
1 | ||
| 69055-35040 |
VZN120 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-89118 |
RN12#,8#,90,VZN120,85,9# |
1 | ||
| 69057-35040 |
RN8#,90,VZN120,85,9# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-35010 |
VZN120 |
1 | ||
| 69056-35010 |
VZN120 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-35100 |
VZN120 W(GLOVE BOX W/KEY) |
1 | ||
| 69005-35100 |
VZN120 |
1 | ||
| 69005-35370 |
VZN120 |
1 | ||
| 69005-89231 |
RN12#,VZN120 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00132 |
RN12#,8#,90,VZN120,85,9# MASTER KEY,W(*68) |
1 | ||
| 90999-00149 |
VZN120 MASTER KEY,W(*68) |
3 | ||
| 90999-00130 |
VZN120 MASTER KEY |
1 | ||
| 90999-00130 |
RN12#,8#,90,VZN120,85,9# MASTER KEY |
1 | ||
| 90999-00137 |
VZN120 SUB KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00132 |
RN12#,8#,90,VZN120,85,9# MASTER KEY,W(*68) |
1 | ||
| 90999-00149 |
VZN120 MASTER KEY,W(*68) |
3 | ||
| 90999-00130 |
VZN120 MASTER KEY |
1 | ||
| 90999-00130 |
RN12#,8#,90,VZN120,85,9# MASTER KEY |
1 | ||
| 90999-00137 |
VZN120 SUB KEY |
1 | ||
| 69561B - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-89101 |
RN12#,VZN120 |
1 | ||
| 69563 - PAD, BACK DOOR LOCK CYLINDER | ||||
| 69563-20010 |
RN12#,VZN120 |
1 | ||
| 69563-32020 |
RN12#,VZN120 |
1 | ||
