VZN110L-CRPGEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

FRONT HEATER BLOWER

diagram 87103 87105 87126 87130 87138 87211L 9011906446 9017906026 9017906069
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-89101

RN10#,110,VZN10#,110

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32020

RN10#,110,VZN10#,110

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

RN10#,110,13#,VZN10#,110,13#

NO.1

 2
87126-89101

RN10#,110,13#,VZN10#,110,13#

NO.2

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-89115

RN10#,110,VZN10#,110

 1
87138 - RESISTOR, HEATER BLOWER
87138-89105

RN10#,110,VZN10#,110

 1
Common parts
90119-06446
90179-06026
90179-06069

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

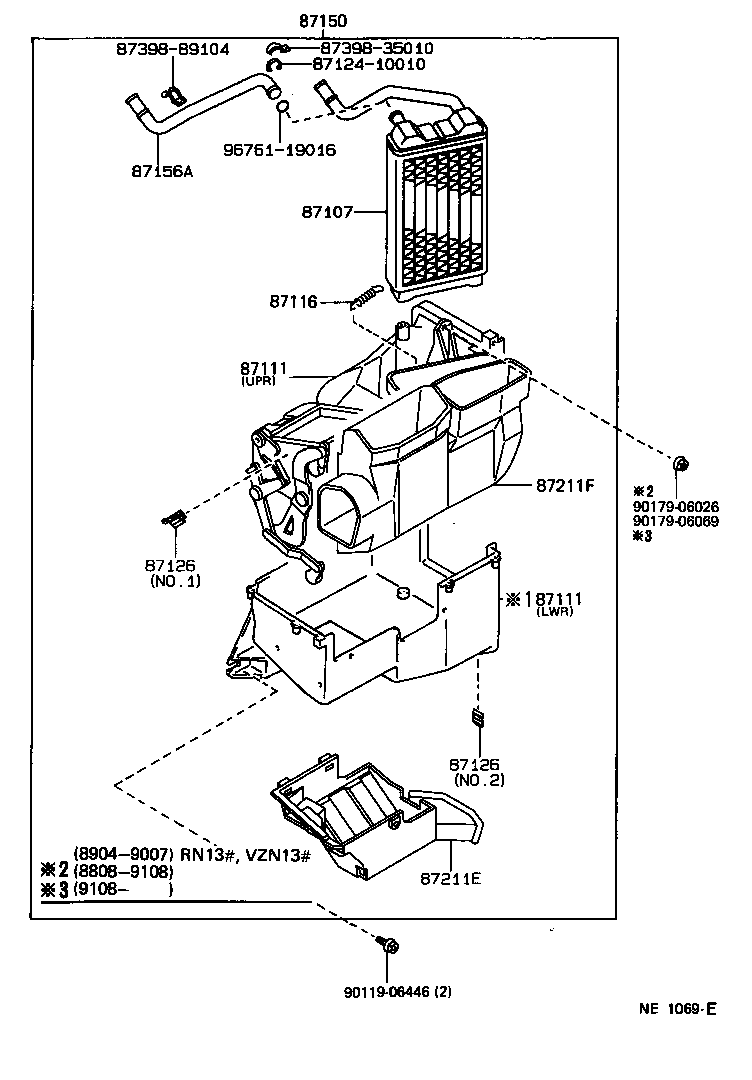

FRONT HEATER RADIATOR

diagram 87107 87111 87111 87116 8712410010 87126 87126 87150 87156A 87211E 87211F 8739835010 8739889104 9011906446 9017906026 9017906069 9676119016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-89116

RN10#,110,VZN10#,110..USA

W(STANDARD HEATER)

 1
87107-89118

RN10#,110,VZN10#,110

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

RN10#,110,13#,VZN10#,110,13#

NO.1

 2
87126-89101

RN10#,110,13#,VZN10#,110,13#

NO.2

 1
87126 - CLAMP, HEATER CONTROL
87126-12050

RN10#,110,13#,VZN10#,110,13#

NO.1

 2
87126-89101

RN10#,110,13#,VZN10#,110,13#

NO.2

 1
87150 - RADIATOR ASSY, HEATER
87150-89114

RN10#,110,VZN10#,110..USA

STANDARD HEATER

 1
87150-89116

RN10#,110,VZN10#,110

 1
87211E - DUCT, AIR
87211-89116

RN10#,110,VZN10#,110

 1
Common parts
87124-10010
87398-35010
87398-89104
90119-06446
90179-06026
90179-06069
96761-19016
