VZN110L-CRPGEA3 (1988)
Toyota 4-Runner Truck (Jpp)

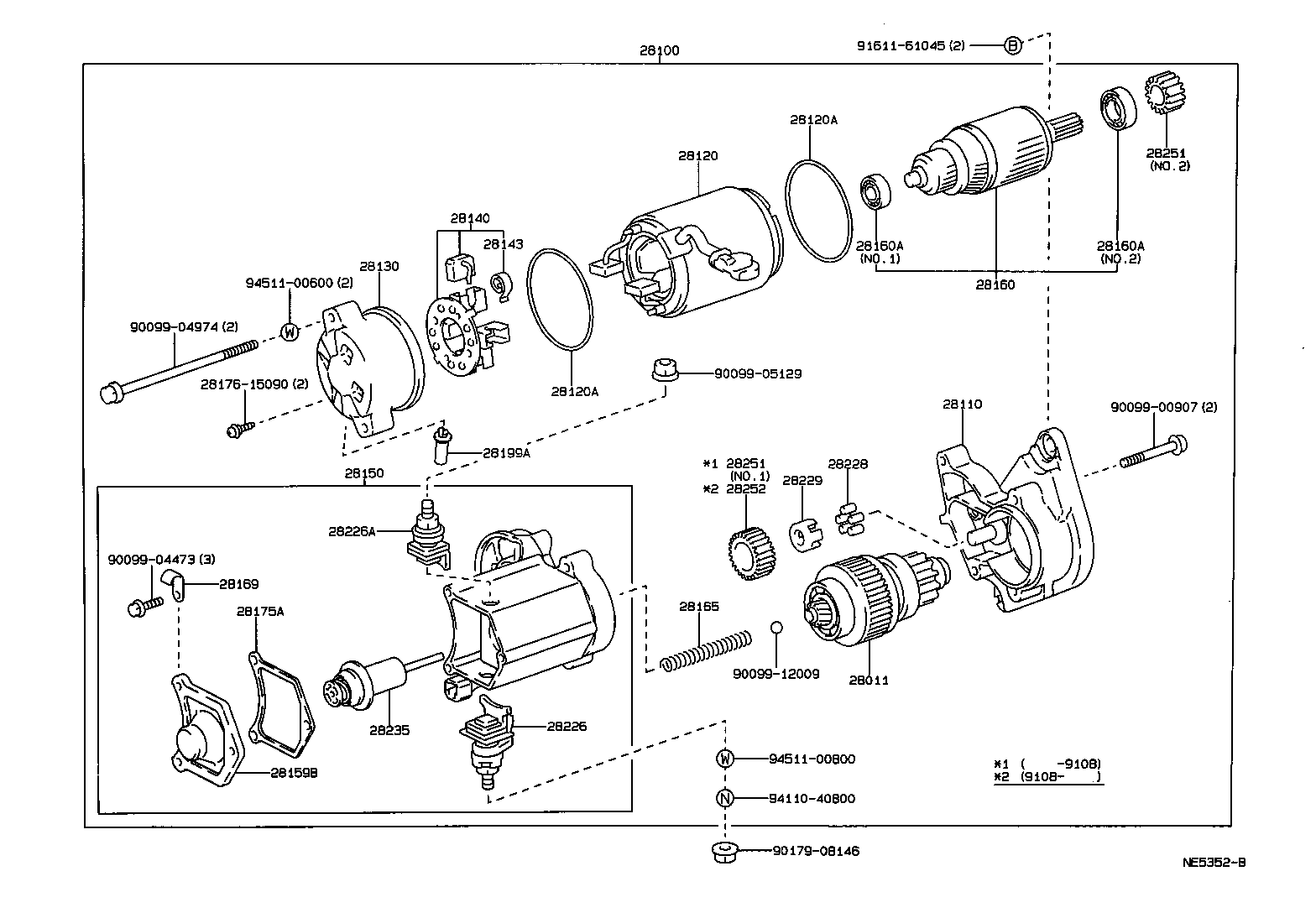

ILLUST NO. 1 OF 2(8808-9108)3VZE..VZN105,110,130..R..USA ; (8808-9108)22RE,3VZE..RN10#,110,130,VZN10
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-35030 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-65010 |
3VZE..VZN10#,110,130..R..USA 12V 1.0KW |
1 | ||
| 28100-65030 |
3VZE..VZN105,110,130..4FC..USA 12V 1.6KW,COLD SPEC |
1 | ||
| 28100-65020 |
3VZE..VZN10#,110,131..R..CND;3VZE..VZN105,110,130..4FC..USA 12V 1.4KW |
1 | ||
| 28100-65020 |
3VZE..VZN10#,110,130..R..USA 12V 1.4KW,COLD SPEC |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-65020 |
3VZE..VZN110..R..CND;3VZE..VZN10#,131..CND;3VZE..VZN105,110,130..4FC |
1 | ||
| 28110-65010 |
3VZE..VZN10#,110,130..R..USA |
1 | ||
| 28110-65020 |
3VZE..VZN10#,110,130..R..USA COLD SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND |
1 | ||
| 28120-65030 |
3VZE..VZN105,110,130..4FC..USA COLD SPEC |
1 | ||
| 28120-15090 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC |
1 | ||
| 28120-26071 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-34060 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA |
1 | ||
| 28130-72020 |
3VZE..VZN10#,110,130..R..USA COLD SPEC |
1 | ||
| 28130-72020 |
3VZE..VZN110..R..CND;3VZE..VZN10#,131..CND;3VZE..VZN105,110,130..4FC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-65020 |
3VZE..VZN10#,110..R..USA COLD SPEC |
1 | ||
| 28140-26070 |
3VZE..VZN105,110..R..USA;22RE,3VZE..RN10#,110,VZN100..USA |
1 | ||
| 28140-65020 |
3VZE..VZN105,110..4FC;3VZE..VZN10#,110..R..CND |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-65010 |
3VZE..VZN10#,110..R..USA |
1 | ||
| 28150-65020 |
3VZE..VZN105,110..4FC;3VZE..VZN10#,110..R..CND |
1 | ||
| 28150-65020 |
3VZE..VZN10#,110..R..USA COLD SPEC |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND |
1 | ||
| 28160-65030 |
3VZE..VZN105,110,130..4FC..USA COLD SPEC |
1 | ||
| 28160-15090 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC |
1 | ||
| 28160-26070 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND NO.2 |
1 | ||
| 90099-10144 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10144 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.1 |
1 | ||
| 90099-10143 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10113 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA NO.2 |
1 | ||
| 90099-65030 |
3VZE..VZN105,110,130..4FC..USA COLD SPEC,NO.2 |
1 | ||
| 28253-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND NO.2 |
1 | ||
| 90099-10144 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10144 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.1 |
1 | ||
| 90099-10143 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10113 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA NO.2 |
1 | ||
| 90099-65030 |
3VZE..VZN105,110,130..4FC..USA COLD SPEC,NO.2 |
1 | ||
| 28253-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.2 |
1 | ||
| 28251-15090 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.2 |
1 | ||
| 28254-45020 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.1 |
1 | ||
| 28254-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| 28254-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

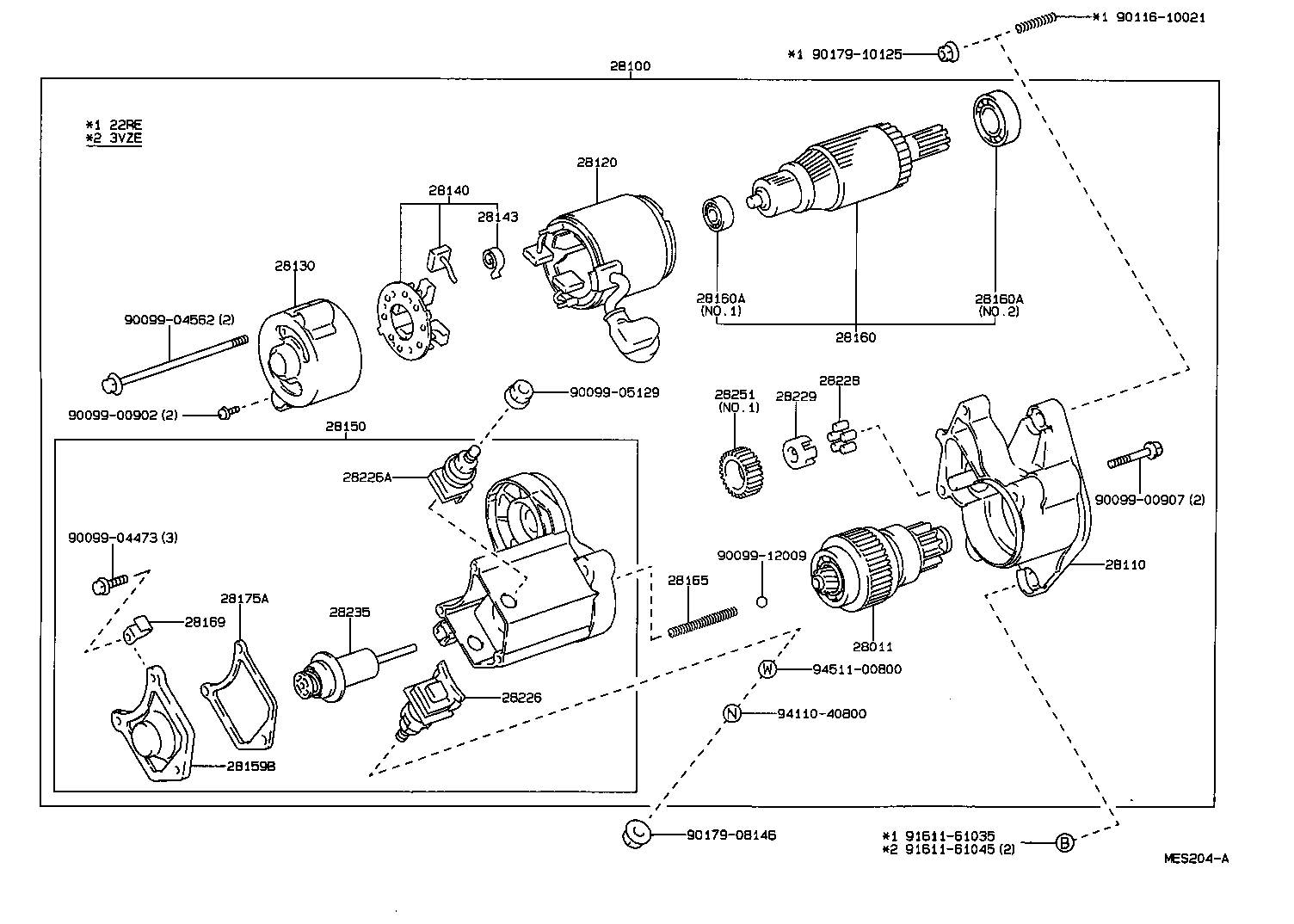

ILLUST NO. 1 OF 2(8808- )3VZE
12V 1.4KW,1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-35030 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-65010 |
3VZE..VZN10#,110,130..R..USA 12V 1.0KW |
1 | ||
| 28100-65030 |
3VZE..VZN105,110,130..4FC..USA 12V 1.6KW,COLD SPEC |
1 | ||
| 28100-65020 |
3VZE..VZN10#,110,131..R..CND;3VZE..VZN105,110,130..4FC..USA 12V 1.4KW |
1 | ||
| 28100-65020 |
3VZE..VZN10#,110,130..R..USA 12V 1.4KW,COLD SPEC |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-65020 |
3VZE..VZN110..R..CND;3VZE..VZN10#,131..CND;3VZE..VZN105,110,130..4FC |
1 | ||
| 28110-65010 |
3VZE..VZN10#,110,130..R..USA |
1 | ||
| 28110-65020 |
3VZE..VZN10#,110,130..R..USA COLD SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND |
1 | ||
| 28120-65030 |
3VZE..VZN105,110,130..4FC..USA COLD SPEC |
1 | ||
| 28120-15090 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC |
1 | ||
| 28120-26071 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA |
2 | ||
| 90099-14064 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA |
2 | ||
| 90099-14064 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-34060 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA |
1 | ||
| 28130-72020 |
3VZE..VZN10#,110,130..R..USA COLD SPEC |
1 | ||
| 28130-72020 |
3VZE..VZN110..R..CND;3VZE..VZN10#,131..CND;3VZE..VZN105,110,130..4FC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-65020 |
3VZE..VZN10#,110..R..USA COLD SPEC |
1 | ||
| 28140-26070 |
3VZE..VZN105,110..R..USA;22RE,3VZE..RN10#,110,VZN100..USA |
1 | ||
| 28140-65020 |
3VZE..VZN105,110..4FC;3VZE..VZN10#,110..R..CND |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-65010 |
3VZE..VZN10#,110..R..USA |
1 | ||
| 28150-65020 |
3VZE..VZN105,110..4FC;3VZE..VZN10#,110..R..CND |
1 | ||
| 28150-65020 |
3VZE..VZN10#,110..R..USA COLD SPEC |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND |
1 | ||
| 28160-65030 |
3VZE..VZN105,110,130..4FC..USA COLD SPEC |
1 | ||
| 28160-15090 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC |
1 | ||
| 28160-26070 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND NO.2 |
1 | ||
| 90099-10144 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10144 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.1 |
1 | ||
| 90099-10143 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10113 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA NO.2 |
1 | ||
| 90099-65030 |
3VZE..VZN105,110,130..4FC..USA COLD SPEC,NO.2 |
1 | ||
| 28253-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
3VZE..VZN110,131..R..CND;3VZE..VZN105,110,130..4FC..USA;22RE,3VZE..RN10#,110,131,VZN10#..CND NO.2 |
1 | ||
| 90099-10144 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| 90099-10144 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.1 |
1 | ||
| 90099-10143 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.2 |
1 | ||
| 90099-10113 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA NO.2 |
1 | ||
| 90099-65030 |
3VZE..VZN105,110,130..4FC..USA COLD SPEC,NO.2 |
1 | ||
| 28253-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-72020 |
3VZE..VZN110..R..CND;3VZE..VZN10#,131..CND;3VZE..VZN105,110,130..4FC |
1 | ||
| 28199-72020 |
3VZE..VZN10#,110,130..R..USA COLD SPEC |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
22RE,3VZE..RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3VZE..VZN110..USA;3VZE..VZN110,131..R..CND;22RE,3VZE..RN10#,110,13#,VZN10#,130 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.2 |
1 | ||
| 28251-15090 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.2 |
1 | ||
| 28254-45020 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.1 |
1 | ||
| 28254-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| 28254-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-15090 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.2 |
1 | ||
| 28251-15090 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.2 |
1 | ||
| 28254-45020 |
3VZE..VZN110..R..CND;3VZE..VZN105,110,130..4FC;22RE,3VZE..RN10#,110,131,VZN10#,131..CND NO.1 |
1 | ||
| 28254-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| 28254-45020 |
3VZE..VZN105,110,130..R..USA;22RE,3VZE..RN10#,110,130,VZN100..USA COLD SPEC,NO.1 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61045 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
