VZN110L-CRPDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

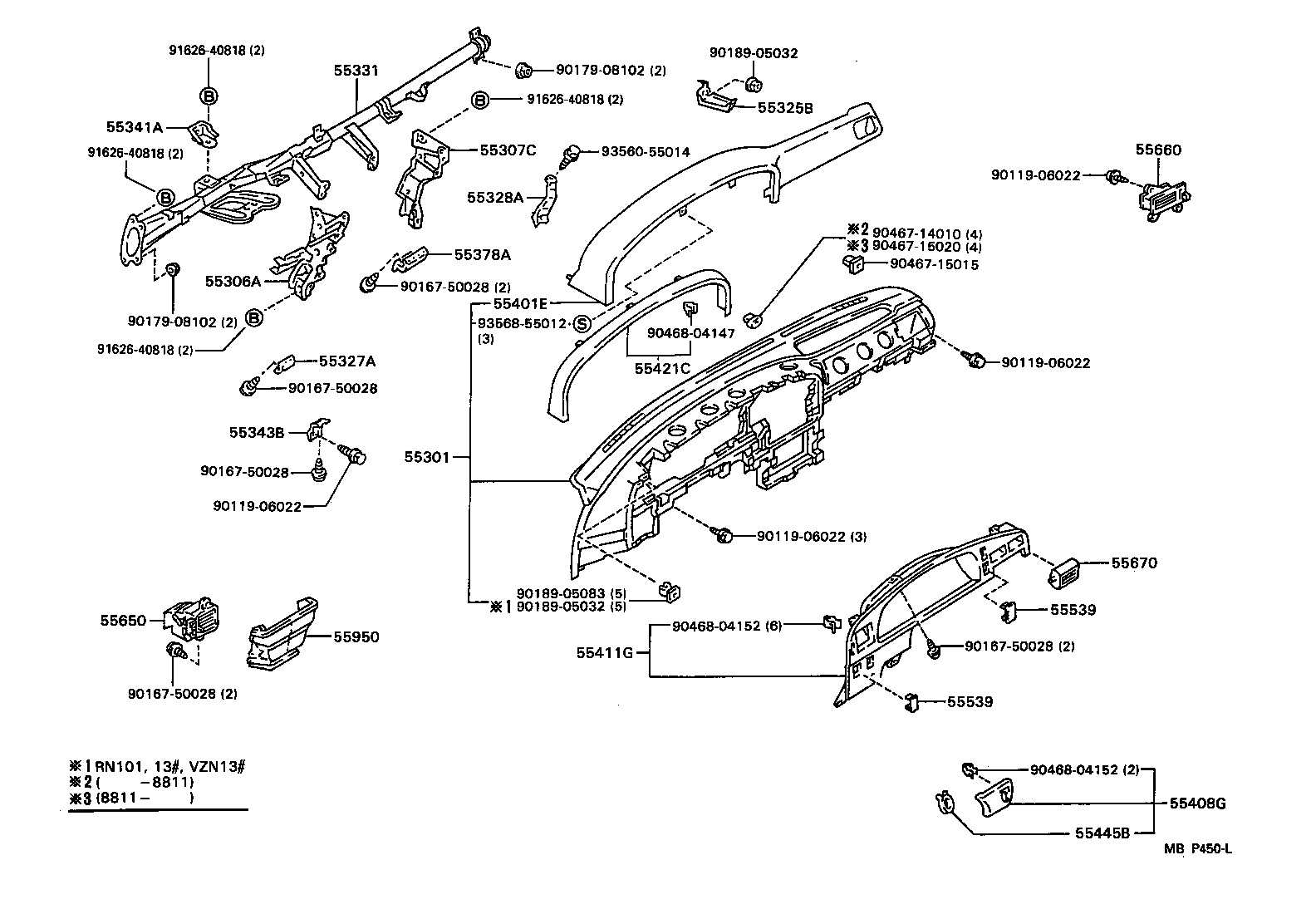

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 55301 55306A 55307C 55325B 55327A 55328A 55331 55341A 55343B 55378A 55401E 55408G 55411G 55421C 55445B 55539 55539 55650 55660 55670 55950 9011906022 9011906022 9011906022 9011906022 9016750028 9016750028 9016750028 9016750028 9016750028 9017908102 9017908102 9018905032 9018905032 9018905083 9046714010 9046715015 9046715020 9046804147 9046804152 9046804152 9162640818 9162640818 9162640818 9162640818 9356055014 9356855012
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-8912002

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55301-8912003

RN10#,110,13#,VZN10#,110,13#

GRAY,TRIM1#

 1
55301-8912004

RN10#,110,13#,VZN10#,110,13#

BLUE,TRIM8#

 1
55301-8912004

RN110,13#,VZN110,13#

BLUE,TRIM8#

 1
55301-8912003

RN110,13#,VZN110,13#

GRAY,TRIM1#

 1
55301-35010B0

RN10#,110,VZN100,110..DLX

GRAY,TRIM1#

 1
55301-89120J0

RN110,13#,VZN110,13#

MEDIUM BLUE,TRIM8#

 1
55301-8912006

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55301-8912002

RN13#,VZN110,13#;RN10#,110,VZN10#..DLX

RED,TRIM3#

 1
55301-89120B0

RN110,13#,VZN110,13#

MEDIUM GRAY,TRIM1#

 1
55301-35010J0

RN10#,110,VZN100,110..DLX

BLUE,TRIM8#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-89105

RN110,13#,VZN110,13#

 1
55306-35010

RN10#,110,VZN100,110..DLX

 1
55306-89105

RN10#,110,13#,VZN10#,110,13#

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-35010

RN10#,110,VZN100,110..DLX

 1
55307-89107

RN10#,110,13#,VZN10#,110,13#

 1
55307-89107

RN110,13#,VZN110,13#

 1
55325B - BRACKET, INSTRUMENT PANEL, NO.5
55325-35020

RN10#,110,VZN100,110..DLX

 1
55327A - STAY, INSTRUMENT PANEL, NO.2
55327-89104

RN10#,110,VZN100,110..DLX

 1
55328A - STAY, INSTRUMENT PANEL, NO.3
55328-35020

RN10#,110,VZN100,110..DLX

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-35020

RN10#,110,13#,VZN10#,110,13#

 1
55330-35020

RN10#,110,VZN100,110

 1
55330-89120

RN10#,110,13#,VZN10#,110,13#

 1
55330-89117

RN10#,110,13#,VZN10#,110,13#

 1
55341A - BRACE, INSTRUMENT PANEL TO COWL, UPPER
55341-89103

RN10#,110,13#,VZN10#,110,13#

 1
55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER
55343-89101

RN10#,110,13#,VZN10#,110,13#

 1
55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55378-89102

RN10#,110,VZN100,110..DLX

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-89122B0

RN10#,110,13#,VZN10#,110,13#

MEDIUM GRAY,TRIM1#

 1
55401-8912204

RN10#,110,VZN10#,110

BLUE,TRIM8#

 1
55401-89122J0

RN10#,110,13#,VZN10#,110,13#

MEDIUM BLUE,TRIM8#

 1
55401-89122J0

RN110,13#,VZN110,13#

MEDIUM BLUE,TRIM8#

 1
55401-89122E0

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55401-89122B0

RN110,13#,VZN110,13#

MEDIUM GRAY,TRIM1#

 1
55401-8912202

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55401-8912206

RN10#,110,VZN10#,110

BROWN,TRIM4#

 1
55401-8912203

RN10#,110,VZN10#,110

GRAY,TRIM1#

 1
55408G - BEZEL SUB-ASSY, STARTER SWITCH
55408-89103

RN10#,110,13#,VZN105,110,13#..4FC

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-35040

RN10#,110,VZN100,110..DLX

 1
55411-89109

RN10#,110,13#,VZN10#,110,13#

 1
55411-89109

RN110,13#,VZN110,13#

 1
55421C - HOOD, METER
55421-89108J0

RN10#,110,VZN100,110..DLX

MEDIUM BLUE,TRIM8#

 1
55421-89108B0

RN10#,110,VZN100,110..DLX

MEDIUM GRAY,TRIM1#

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-89104

RN10#,110,13#,VZN105,110,13#..4FC

 1
55539 - COVER, SPARE SWITCH HOLE
55539-89105

RN10#,110,13#,VZN10#,110,13#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-89105

RN10#,110,13#,VZN10#,110,13#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-89112

RN10#,110,13#,VZN10#,110,13#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-8910702

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55660-8910704

RN10#,110,13#,VZN10#,110,13#

BLUE,TRIM8#

 1
55660-8910703

RN10#,110,13#,VZN10#,110,13#

GRAY,TRIM1#

 1
55660-8910706

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-89115

RN10#,110,13#,VZN10#,110,13#

 2
55950 - NOZZLE ASSY, DEFROSTER
55950-89108

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90119-06022
90167-50028
90179-08102
90189-05032
90189-05083
90467-14010
90467-15015
90467-15020
90468-04147
90468-04152
91626-40818
93560-55014
93568-55012

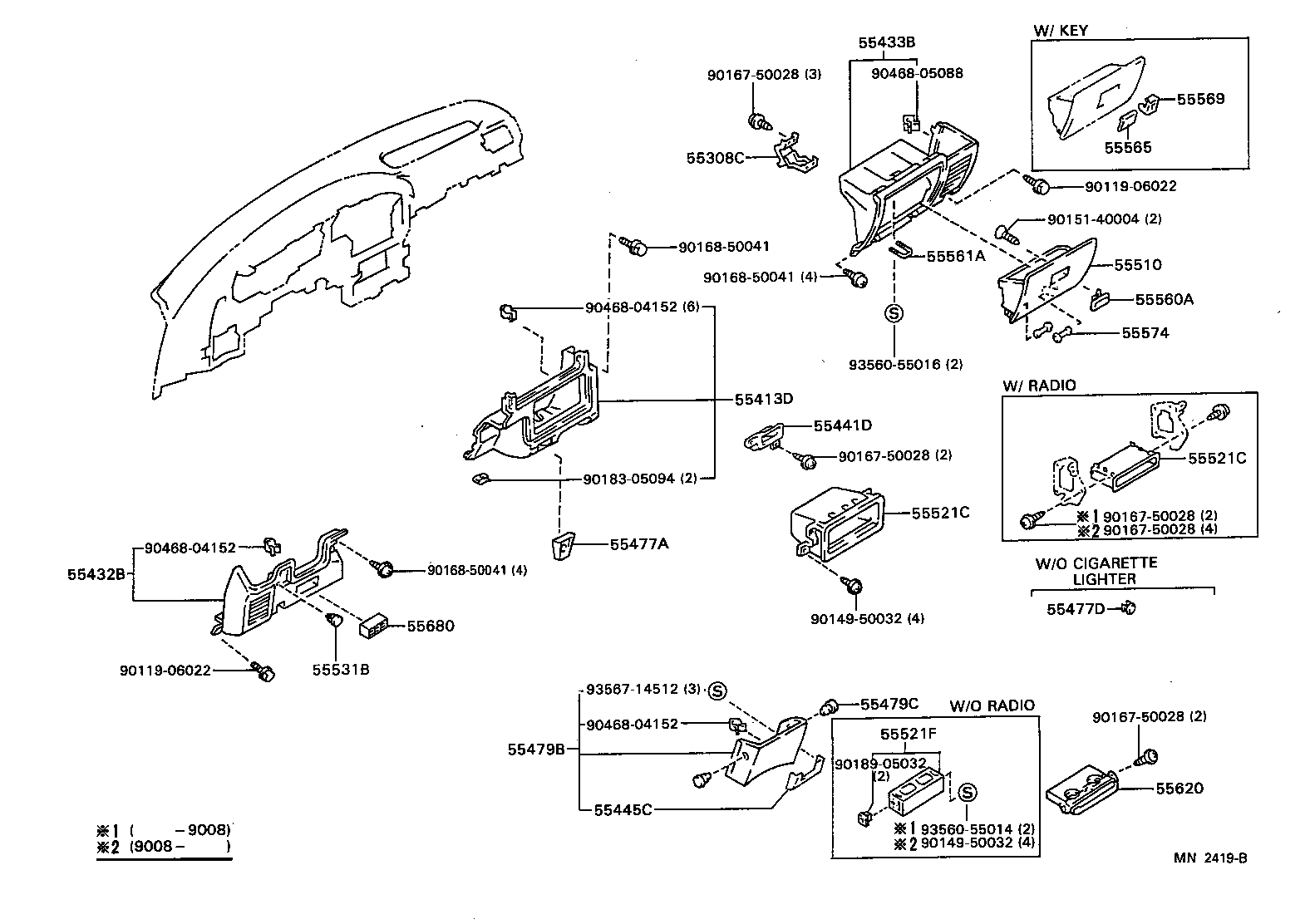

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 55308C 55413D 55432B 55433B 55441D 55445C 55477A 55477D 55479B 55479C 55510 55521C 55521C 55521F 55531B 55560A 55561A 55565 55569 55574 55620 55680 9011906022 9011906022 9014950032 9014950032 9015140004 9016750028 9016750028 9016750028 9016750028 9016750028 9016850041 9016850041 9016850041 9018305094 9018905032 9046804152 9046804152 9046804152 9046805088 9356055014 9356055016 9356714512
Part # Description Qty Price
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-89109

RN110,13#,VZN110,13#

 1
55308-89109

RN10#,110,13#,VZN10#,110,13#

 1
55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER
55413-8910204

RN10#,110,VZN10#,110

BLUE,TRIM8#

 1
55413-8910203

RN10#,110,VZN10#,110

GRAY,TRIM1#

 1
55413-8910202

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55413-8910206

RN10#,110,VZN10#,110

BROWN,TRIM4#

 1
55413-35010B0

RN10#,110,13#,VZN10#,110,13#

MEDIUM GRAY,TRIM1#

 1
55413-89102J0

RN10#,110,13#,VZN10#,110,13#

MEDIUM BLUE,TRIM8#

 1
55413-35010J0

RN110,13#,VZN110,13#

MEDIUM BLUE,TRIM8#

 1
55413-3501002

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55413-89102E0

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55413-89102B0

RN10#,110,13#,VZN10#,110,13#

MEDIUM GRAY,TRIM1#

 1
55413-35010E0

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55413-35070B0

RN10#,110,VZN100,110..DLX

GRAY,TRIM1#

 1
55413-35070J0

RN10#,110,VZN100,110..DLX

BLUE,TRIM8#

 1
55413-35010J0

RN10#,110,13#,VZN10#,110,13#

MEDIUM BLUE,TRIM8#

 1
55413-35010B0

RN110,13#,VZN110,13#

MEDIUM GRAY,TRIM1#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-8911203

RN10#,110,VZN10#,110

GRAY,TRIM1#

 1
55432-8911206

RN10#,110,VZN10#,110

BROWN,TRIM4#

 1
55432-89112B0

RN10#,110,13#,VZN10#,110,13#

MEDIUM GRAY,TRIM1#

 1
55432-89112E0

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55432-8911204

RN10#,110,VZN10#,110

BLUE,TRIM8#

 1
55432-8911202

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55432-89112J0

RN10#,110,13#,VZN10#,110,13#

MEDIUM BLUE,TRIM8#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-8910802

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55433-8910803

RN10#,110,VZN10#,110

GRAY,TRIM1#

 1
55433-8910804

RN10#,110,VZN10#,110

BLUE,TRIM8#

 1
55433-89108E0

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55433-8910806

RN10#,110,VZN10#,110

BROWN,TRIM4#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-89105

RN10#,110,13#,VZN10#,110,13#

 1
55477D - COVER, CIGARETTE LIGHTER HOLE
55477-10050D0

RN10#,110,VZN10#,110..DLX

RED,TRIM1#

 1
55477-1005043

RN10#,110,VZN10#,110..DLX

BROWN,TRIM4#

 1
55477-10050J0

RN10#,110,VZN10#,110..DLX

BLUE,TRIM8#

 1
55477-10050B0

RN10#,110,VZN10#,110..DLX

GRAY,TRIM1#

 1
55479B - COVER, INSTRUMENT, LOWER CENTER
55479-8910203

RN10#,110,VZN10#,110

GRAY,TRIM1#

 1
55479-89102E0

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55479-8910206

RN10#,110,VZN10#,110

BROWN,TRIM4#

 1
55479-8910202

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55479-89102B0

RN10#,110,13#,VZN10#,110,13#

MEDIUM GRAY,TRIM1#

 1
55479-8910204

RN10#,110,VZN10#,110

BLUE,TRIM8#

 1
55479-89102J0

RN10#,110,13#,VZN10#,110,13#

MEDIUM BLUE,TRIM8#

 1
55479C - CLIP(FOR INSTRUMENT LOWER COVER)
90467-0704110

RN10#,110,VZN10#,110

MEDIUM GRAY,TRIM1#

 2
90467-0704144

RN10#,110,VZN10#,110

BLUE,TRIM8#

 2
90467-07041E1

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 2
90467-0704156

RN10#,110,VZN10#,110

BROWN,TRIM4#

 2
90467-0704120

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 2
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-89101E0

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55550-8910102

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55550-8910106

RN10#,110,VZN10#,110

BROWN,TRIM4#

 1
55550-8910103

RN10#,110,VZN10#,110

GRAY,TRIM1#

 1
55550-8910104

RN10#,110,VZN10#,110

BLUE,TRIM8#

 1
55521C - COVER, STEREO OPENING
55521-89102

RN110;VZN110..DLX

W(RADIO)

 1
55521-89102

RN110,VZN110..DLX..CND

W(RADIO)

 1
55521-89103

VZN100,110..DLX;RN10#,110,13#,VZN105

 1
55521C - COVER, STEREO OPENING
55521-89102

RN110;VZN110..DLX

W(RADIO)

 1
55521-89102

RN110,VZN110..DLX..CND

W(RADIO)

 1
55521-89103

VZN100,110..DLX;RN10#,110,13#,VZN105

 1
55531B - COVER, CHOKE KNOB HOLE
55531-89105B0

RN10#,110,13#,VZN10#,110,13#

MEDIUM GRAY,TRIM1#

 1
55531-89105E0

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55531-8910506

RN10#,110,VZN10#,110

BROWN,TRIM4#

 1
55531-8910503

RN10#,110,VZN10#,110

GRAY,TRIM1#

 1
55531-8910502

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55531-89105J0

RN10#,110,13#,VZN10#,110,13#

MEDIUM BLUE,TRIM8#

 1
55531-8910504

RN10#,110,VZN10#,110

BLUE,TRIM8#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-8910303

RN10#,110,VZN10#,110

GRAY,TRIM1#

 1
55560-8910304

RN10#,110,VZN10#,110

BLUE,TRIM8#

 1
55560-8910306

RN10#,110,VZN10#,110

BROWN,TRIM4#

 1
55560-8910302

RN10#,110,13#,VZN10#,110,13#

RED,TRIM3#

 1
55560-89103E0

RN10#,110,13#,VZN10#,110,13#

BROWN,TRIM4#

 1
55560-89103J0

RN10#,110,13#,VZN10#,110,13#

MEDIUM BLUE,TRIM8#

 1
55560-89103B0

RN10#,110,VZN10#,110

MEDIUM GRAY,TRIM1#

 1
55560-89103B0

RN10#,110,13#,VZN10#,110,13#

MEDIUM GRAY,TRIM1#

 1
55560-89103J0

RN10#,110,VZN10#,110

MEDIUM BLUE,TRIM8#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-89104

RN10#,110,13#,VZN10#,110,13#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-10010

RN10#,110,13#,VZN10#,110,13#

 2
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-89101

RN10#,110,13#,VZN10#,110,13#

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-89101

RN10#,110,130,VZN10#,110,130

 1
55680-89101

VZN100,110;RN101,110,130,VZN130..USA

 1
Common parts
90119-06022
90149-50032
90151-40004
90167-50028
90168-50041
90183-05094
90189-05032
90468-04152
90468-05088
93560-55014
93560-55016
93567-14512
