VZN110L-CRPDEK (1988)
Toyota 4-Runner Truck (Jpp)

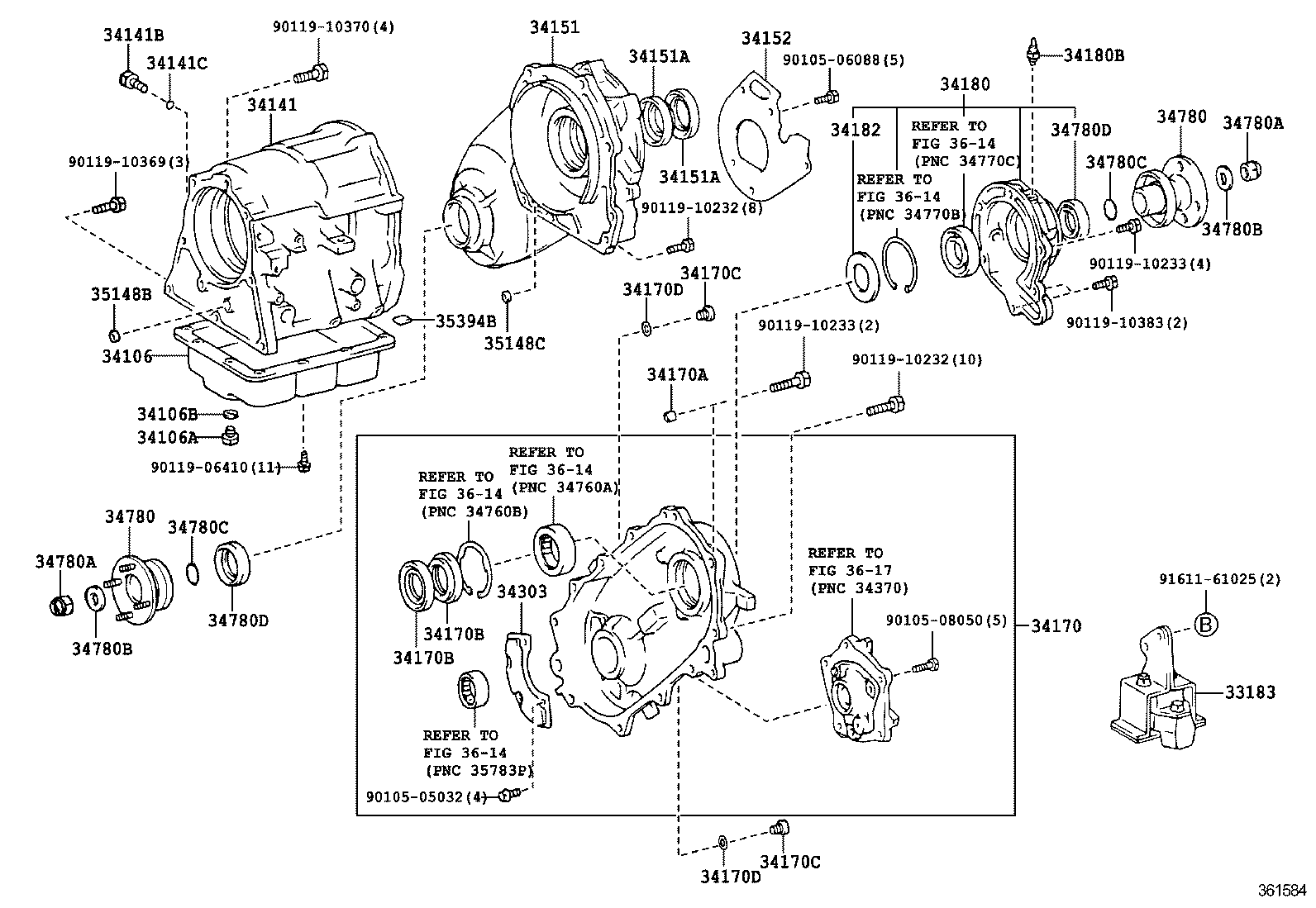

(8808-8908)RN106,110,13#..4FC ; (8808- )VZN105,110,13#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-35040 |
VZN110..4FC |
1 | ||
| 33183-35010 |
VZN110;RN10#,110,13#,VZN10#,13#..G,R |
1 | ||
| 33183-35032 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33183-35020 |
RN110,VZN110..G,R |
1 | ||
| 33183-35010 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 34106 - PAN SUB-ASSY, TRANSFER OIL | ||||
| 34106-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34106-35021 |
VZN105,110,13#..4FC |
1 | ||
| 34106-35020 |
VZN105,110,13#..4FC |
1 | ||
| 34106A - PLUG (FOR TRANSFER OIL PAN) | ||||
| 90341-10006 |
VZN105,110,13#..4FC |
1 | ||
| 90341-10006 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90341-10006 |
VZN110..4FC..DLX;RN106,110,VZN105..4FC |
1 | ||
| 34106B - GASKET (FOR TRANSFER OIL PAN) | ||||
| 35178-30010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35178-30010 |
VZN105,110,13#..4FC |
1 | ||
| 35178-30010 |
VZN110..4FC..DLX;RN106,110,VZN105..4FC |
1 | ||
| 34141 - CASE, AUTOMATIC TRANSFER | ||||
| 34141-35030 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34141-35030 |
VZN105,110,13#..4FC |
1 | ||
| 34141B - PLUG (FOR AUTOMATIC TRANSFER CASE) | ||||
| 90341-08001 |
VZN105,110,13#..4FC |
1 | ||
| 90341-08001 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34141C - RING, O (FOR AUTOMATIC TRANSFER CASE) | ||||
| 90301-06196 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 90301-06196 |
VZN105,110,13#..4FC |
1 | ||
| 34151 - CASE, TRANSFER CHAIN, FRONT | ||||
| 34151-35041 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34151-35041 |
VZN105,110,13#..4FC |
1 | ||
| 34151A - SEAL, OIL (FOR TRANSFER CHAIN CASE) | ||||
| 90310-77001 |
RN106,110,13#,VZN105,110,13#..4FC OD=77 |
1 | ||
| 90310-77001 |
VZN105,110,13#..4FC OD=77 |
1 | ||
| 90310-58001 |
RN106,110,13#,VZN105,110,13#..4FC OD=75 |
1 | ||
| 90310-58001 |
VZN105,110,13#..4FC OD=75 |
1 | ||
| 34151A - SEAL, OIL (FOR TRANSFER CHAIN CASE) | ||||
| 90310-77001 |
RN106,110,13#,VZN105,110,13#..4FC OD=77 |
1 | ||
| 90310-77001 |
VZN105,110,13#..4FC OD=77 |
1 | ||
| 90310-58001 |
RN106,110,13#,VZN105,110,13#..4FC OD=75 |
1 | ||
| 90310-58001 |
VZN105,110,13#..4FC OD=75 |
1 | ||
| 34152 - RECEIVER, TRANSFER CHAIN OIL | ||||
| 34152-35020 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34152-35020 |
VZN105,110,13#..4FC |
1 | ||
| 34170 - CASE ASSY, TRANSFER CHAIN, REAR | ||||
| 34170-35031 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34170-35031 |
VZN105,110,13#..4FC |
1 | ||
| 34170A - PIN, STRAIGHT (FOR TRANSFER CHAIN CASE) | ||||
| 90250-13003 |
RN106,110,13#,VZN105,110,13#..4FC L=18,OD=13 |
2 | ||
| 90250-13003 |
VZN105,110,13#..4FC L=18,OD=13 |
2 | ||
| 34170B - SEAL, OIL (FOR TRANSFER CHAIN CASE) | ||||
| 90310-77001 |
RN106,110,13#,VZN105,110,13#..4FC OD=77 |
1 | ||
| 90310-58001 |
RN106,110,13#,VZN105,110,13#..4FC OD=75 |
1 | ||
| 90310-77001 |
VZN105,110,13#..4FC OD=77 |
1 | ||
| 90310-58001 |
VZN105,110,13#..4FC OD=75 |
1 | ||
| 34170B - SEAL, OIL (FOR TRANSFER CHAIN CASE) | ||||
| 90310-77001 |
RN106,110,13#,VZN105,110,13#..4FC OD=77 |
1 | ||
| 90310-58001 |
RN106,110,13#,VZN105,110,13#..4FC OD=75 |
1 | ||
| 90310-77001 |
VZN105,110,13#..4FC OD=77 |
1 | ||
| 90310-58001 |
VZN105,110,13#..4FC OD=75 |
1 | ||
| 34170C - PLUG (FOR TRANSFER CHAIN CASE) | ||||
| 90341-18021 |
RN106,110,13#,VZN105,110,13#..4FC DRAIN |
1 | ||
| 90341-18021 |
VZN105,110,13#..4FC DRAIN |
1 | ||
| 90341-18049 |
VZN105,110,13#..4FC FILLER |
1 | ||
| 90341-18049 |
RN106,110,13#,VZN105,110,13#..4FC FILLER |
1 | ||
| 34170C - PLUG (FOR TRANSFER CHAIN CASE) | ||||
| 90341-18021 |
RN106,110,13#,VZN105,110,13#..4FC DRAIN |
1 | ||
| 90341-18021 |
VZN105,110,13#..4FC DRAIN |
1 | ||
| 90341-18049 |
VZN105,110,13#..4FC FILLER |
1 | ||
| 90341-18049 |
RN106,110,13#,VZN105,110,13#..4FC FILLER |
1 | ||
| 34170D - GASKET (FOR TRANSFER CHAIN CASE) | ||||
| 90430-18008 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 90430-18008 |
VZN105,110,13#..4FC |
2 | ||
| 34170D - GASKET (FOR TRANSFER CHAIN CASE) | ||||
| 90430-18008 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 90430-18008 |
VZN105,110,13#..4FC |
2 | ||
| 34180 - HOUSING ASSY, TRANSFER EXTENSION | ||||
| 34180-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34180-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34180B - PLUG, BREATHER (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90930-03031 |
VZN105,110,13#..4FC |
1 | ||
| 90930-03031 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34182 - RECEIVER, TRANSFER EXTENSION HOUSING OIL | ||||
| 34182-35011 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34182-35011 |
VZN105,110,13#..4FC |
1 | ||
| 34303 - STRAINER SUB-ASSY, TRANSFER OIL | ||||
| 34303-35010 |
VZN105,110,13#..4FC |
1 | ||
| 34303-35010 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34780 - YOKE ASSY, FLANGE | ||||
| 34780-35020 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 34780-35030 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 34780-35020 |
VZN105,110,13#..4FC RR |
1 | ||
| 34780-35030 |
VZN105,110,13#..4FC FR |
1 | ||
| 34780 - YOKE ASSY, FLANGE | ||||
| 34780-35020 |
RN106,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 34780-35030 |
RN106,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 34780-35020 |
VZN105,110,13#..4FC RR |
1 | ||
| 34780-35030 |
VZN105,110,13#..4FC FR |
1 | ||
| 34780A - NUT (FOR FLANGE YOKE) | ||||
| 90179-20001 |
VZN105,110,13#..4FC |
2 | ||
| 90179-20001 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 34780A - NUT (FOR FLANGE YOKE) | ||||
| 90179-20001 |
VZN105,110,13#..4FC |
2 | ||
| 90179-20001 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 34780B - WASHER, PLATE (FOR FLANGE YOKE) | ||||
| 90201-20005 |
VZN105,110,13#..4FC |
2 | ||
| 90201-20005 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 34780B - WASHER, PLATE (FOR FLANGE YOKE) | ||||
| 90201-20005 |
VZN105,110,13#..4FC |
2 | ||
| 90201-20005 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 34780C - RING, O (FOR FLANGE YOKE) | ||||
| 90301-26190 |
VZN105,110,13#..4FC |
2 | ||
| 90301-26190 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 34780C - RING, O (FOR FLANGE YOKE) | ||||
| 90301-26190 |
VZN105,110,13#..4FC |
2 | ||
| 90301-26190 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 34780D - SEAL, OIL (FOR FLANGE YOKE) | ||||
| 90316-40001 |
VZN105,110,13#..4FC |
2 | ||
| 90316-40001 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 34780D - SEAL, OIL (FOR FLANGE YOKE) | ||||
| 90316-40001 |
VZN105,110,13#..4FC |
2 | ||
| 90316-40001 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 35148B - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CASE) | ||||
| 35148-16010 |
RN106,110,13#,VZN105,110,13#..4FC |
3 | ||
| 35148-16010 |
VZN105,110,13#..4FC |
3 | ||
| 35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE) | ||||
| 35148-16010 |
RN106,110,13#,VZN105,110,13#..4FC |
2 | ||
| 35148-16010 |
VZN105,110,13#..4FC |
2 | ||
| 35394B - MAGNET, OIL CLEANER (FOR TRANSFER) | ||||
| 35394-30011 |
VZN110..4FC..DLX;RN106,110,VZN105..4FC |
3 | ||
| 35394-30011 |
VZN110,13#..4FC |
2 | ||
| 35394-30011 |
VZN105,110,13#..4FC |
3 | ||
| 35394-30011 |
RN106,110,13#,VZN105,110,13#..4FC |
3 | ||
| Common parts | ||||
| 90105-05032 | ||||
| 90105-06088 | ||||
| 90105-08050 | ||||
| 90119-06410 | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
| 90119-10369 | ||||
| 90119-10370 | ||||
| 90119-10383 | ||||
| 91611-61025 | ||||
| Linked diagrams | ||||
| 3614 | ||||
| 3617 | ||||

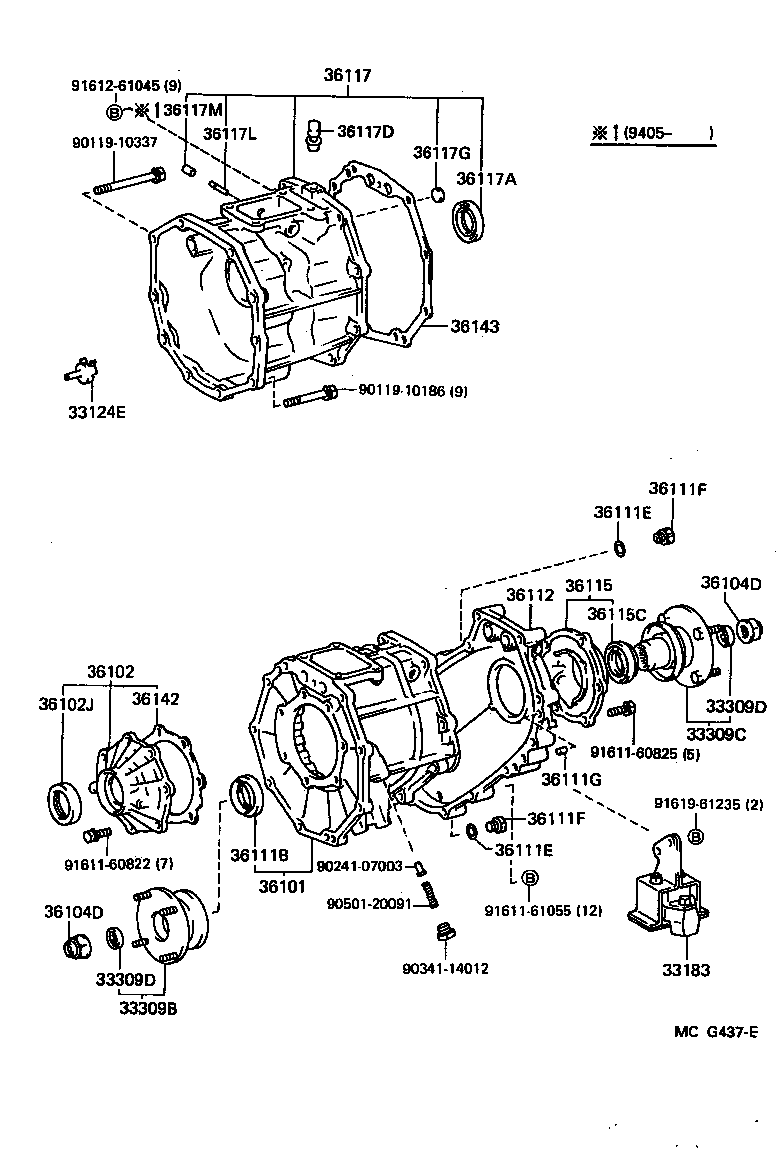

(8808- )R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-36010 |
VZN10#,110,13#..R |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-35040 |
VZN110..4FC |
1 | ||
| 33183-35010 |
VZN110;RN10#,110,13#,VZN10#,13#..G,R |
1 | ||
| 33183-35032 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 33183-35020 |
RN110,VZN110..G,R |
1 | ||
| 33183-35010 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35061 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35080 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
RN101,110,13#,VZN10#,110,13#..G,R |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
RN101,110,13#,VZN10#,110,13#..G,R |
2 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36101-35031 |
RN10#,110,13#..G;RN10#,110,13#..4FC |
1 | ||
| 36101-35032 |
RN131;RN10#,110,130..G;RN101,110,130..4FC |
1 | ||
| 36101-35020 |
VZN10#,110..R |
1 | ||
| 36101-35022 |
VZN10#,110,13#..R |
1 | ||
| 36101-35021 |
VZN10#,110,13#..R |
1 | ||
| 36102 - COVER SUB-ASSY, TRANSFER CASE | ||||
| 36102-35011 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-40007 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RN101,110,13#,VZN10#,110,13#..G,R |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RN101,110,13#,VZN10#,110,13#..G,R |
2 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41006 |
RN10#,110,13#..G;RN10#,110,13#..4FC FR OUTPUT SIDE |
1 | ||
| 90311-41006 |
VZN10#,110,13#..R |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RN10#,110,13#,VZN10#,110,13#..G,R |
3 | ||
| 90430-18008 |
RN101,110,VZN10#,110..G,R |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RN10#,110,13#,VZN10#,110,13#..G,R |
3 | ||
| 90430-18008 |
RN101,110,VZN10#,110..G,R |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RN10#,110,13#,VZN10#,110,13#..G,R FILLER |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RN10#,110,13#,VZN10#,110,13#..G,R FILLER |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
RN101,110,13#,VZN10#,110,13#..G,R L=14,OD=10 |
2 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-35020 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-35020 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-41005 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 90311-41005 |
RN10#,110,13#..4FC;RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36107-35072 |
VZN10#,110,13#..R |
1 | ||
| 36107-35150 |
VZN100,110,13#..R |
1 | ||
| 36107-35071 |
VZN10#,110,13#..R |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-40007 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36117D - PLUG(FOR TRANSFER ADAPTER) | ||||
| 90930-03114 |
VZN10#,110,13#..R |
1 | ||
| 36117G - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER) | ||||
| 96411-41800 |
VZN10#,110,13#..R |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36142-35010 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-35030 |
VZN10#,110,13#..R |
1 | ||
| Common parts | ||||
| 90119-10186 | ||||
| 90119-10337 | ||||
| 90241-07003 | ||||
| 90341-14012 | ||||
| 90501-20091 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-61055 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
(8908- )RN10#,110,13#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35061 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35080 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
RN101,110,13#,VZN10#,110,13#..G,R |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
RN101,110,13#,VZN10#,110,13#..G,R |
2 | ||
| 35015E - BEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER) | ||||
| 90363-37001 |
RN10#,110,13#..4FC |
1 | ||
| 35015F - RING, HOLE SNAP(FOR TRANSFER ADAPTER) | ||||
| 90521-72001 |
RN10#,110,13#..4FC |
1 | ||
| 35015G - ADAPTER, TRANSFER, REAR | ||||
| 35015-35010 |
RN10#,110,13#..4FC |
1 | ||
| 35015H - PIN, RING(FOR TRANSFER CASE) | ||||
| 90253-11001 |
RN10#,110,13#..4FC |
2 | ||
| 35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR) | ||||
| 90311-40007 |
RN10#,110,13#..4FC |
1 | ||
| 35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL | ||||
| 35157-35010 |
RN10#,110,13#..4FC |
1 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36101-35031 |
RN10#,110,13#..G;RN10#,110,13#..4FC |
1 | ||
| 36101-35032 |
RN131;RN10#,110,130..G;RN101,110,130..4FC |
1 | ||
| 36101-35020 |
VZN10#,110..R |
1 | ||
| 36101-35022 |
VZN10#,110,13#..R |
1 | ||
| 36101-35021 |
VZN10#,110,13#..R |
1 | ||
| 36102 - COVER SUB-ASSY, TRANSFER CASE | ||||
| 36102-35011 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-40007 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RN101,110,13#,VZN10#,110,13#..G,R |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RN101,110,13#,VZN10#,110,13#..G,R |
2 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41006 |
RN10#,110,13#..G;RN10#,110,13#..4FC FR OUTPUT SIDE |
1 | ||
| 90311-41006 |
VZN10#,110,13#..R |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41006 |
RN10#,110,13#..G;RN10#,110,13#..4FC FR OUTPUT SIDE |
1 | ||
| 90311-41006 |
VZN10#,110,13#..R |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RN10#,110,13#,VZN10#,110,13#..G,R |
3 | ||
| 90430-18008 |
RN101,110,VZN10#,110..G,R |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RN10#,110,13#,VZN10#,110,13#..G,R |
3 | ||
| 90430-18008 |
RN101,110,VZN10#,110..G,R |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RN10#,110,13#,VZN10#,110,13#..G,R FILLER |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RN10#,110,13#,VZN10#,110,13#..G,R FILLER |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
RN101,110,13#,VZN10#,110,13#..G,R L=14,OD=10 |
2 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-35020 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36105-35020 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-41005 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 90311-41005 |
RN10#,110,13#..4FC;RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 36142 - GASKET, TRANSFER COVER | ||||
| 36142-35010 |
RN101,110,13#,VZN10#,110,13#..G,R |
1 | ||
| Common parts | ||||
| 90119-08444 | ||||
| 90119-10369 | ||||
| 90119-10370 | ||||
| 90241-07003 | ||||
| 90341-14012 | ||||
| 90501-20091 | ||||
| 91611-60822 | ||||
| 91611-61055 | ||||
| Linked diagrams | ||||
| 3611 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
