VZN110L-CRPDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3VZE

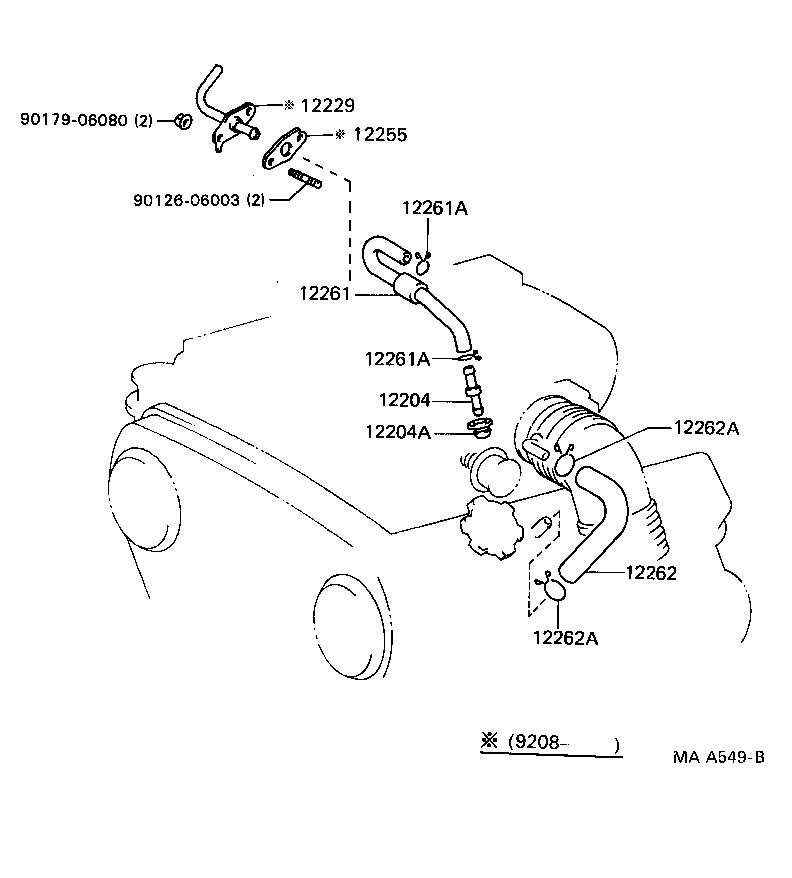

Click highlighted areas on diagram

diagram 12204 12204A 12229 12255 12261 12261A 12261A 12262 12262A 12262A 9012606003 9017906080
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-35040

3VZE..VZN10#,110,13#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

3VZE..VZN10#,110,13#

 1
12261 - HOSE, VENTILATION
12261-65010

3VZE..VZN10#,110,13#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

3VZE..VZN10#,110,13#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

3VZE..VZN10#,110,13#

 2
12262 - HOSE, VENTILATION, NO.2
12262-65011

3VZE..VZN10#,110,13#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19122

3VZE..VZN10#,110,13#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-19122

3VZE..VZN10#,110,13#

 2
Common parts
90126-06003
90179-06080
