VZN110L-CRPDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9511)

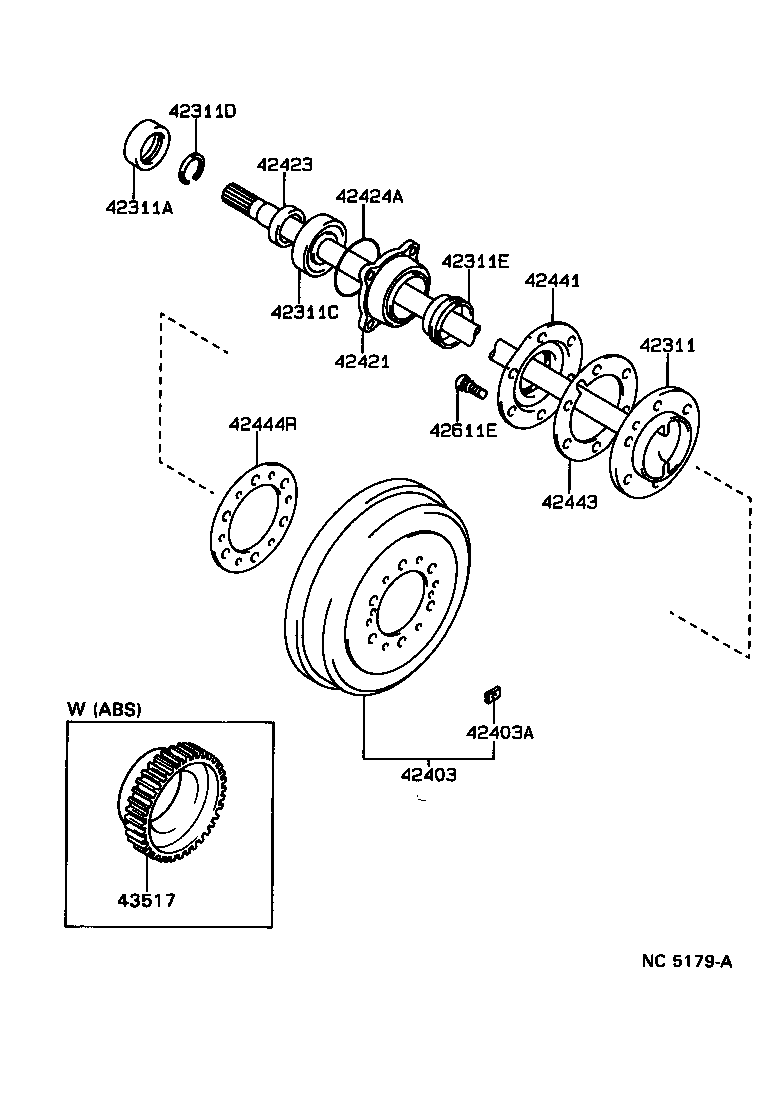

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403A 42421 42423 42424A 42441 42443 42444R 42611E 43517
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-35190

RN10#,110,13#,VZN10#,110,13#

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-50001

RN10#,110,13#,VZN10#,110,13#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90363-40020

RN10#,110,13#,VZN10#,110,13#

 2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90520-36045

RN10#,110,13#,VZN10#,110,13#

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-48001

RN10#,110,13#,VZN10#,110,13#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-35180

RN10#,110,13#,VZN10#,110,13#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01117

RN10#,110,13#,VZN10#,110,13#

10G

 1
90937-01118

RN10#,110,13#,VZN10#,110,13#

20G

 1
90937-01119

RN10#,110,13#,VZN10#,110,13#

30G

 1
42421 - CASE, REAR AXLE BEARING
42421-35030

RN10#,110,13#,VZN10#,110,13#

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-20010

RN10#,110,13#,VZN10#,110,13#

 2
42424A - RING, O (FOR BEARING RETAINER SET)
90301-88077

RN10#,110,13#,VZN10#,110,13#

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-35020

RN10#,110,13#,VZN10#,110,13#

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-55020

RN10#,110,13#,VZN10#,110,13#

 2
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35050

RN10#,110,13#,VZN10#,110,13#

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02052

RN10#,110,13#,VZN10#,110,13#

 12
