VZN110L-CRMGEK (1988)
Toyota 4-Runner Truck (Jpp)
(8808-9511)VZN10#,110,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-35020 |
VZN10#,110,13# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-35201 |
VZN10#,110,13# |
1 | ||
| 44410-35270 |
RN10#,110 |
1 | ||
| 44410-35270 |
RN101,110..SR5 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18138 |
RN10#,110,13# |
1 | ||
| 90445-18138 |
RN10#,110,13# |
1 | ||
| 44412-35130 |
RN101,110,13#..SR5 W(*66) |
1 | ||
| 44412-35130 |
RN10#,110,13# W(*66) |
1 | ||
| 90445-18138 |
RN101,110,13#..SR5 |
1 | ||
| 90445-18138 |
RN10#,110 |
1 | ||
| 44412-35130 |
RN10#,110 W(*66) |
1 | ||
| 44412-35090 |
VZN10#,110,13# |
1 | ||
| 44413B - HOSE(FOR RESERVOIR TANK INLET) | ||||
| 90447-18039 |
RN10#,110,13# |
1 | ||
| 90447-18042 |
VZN10#,110,13# |
1 | ||
| 90445-18108 |
VZN10#,110 |
1 | ||
| 90447-18039 |
RN10#,110 |
1 | ||
| 90447-18039 |
RN101,110,13#..SR5 |
1 | ||
| 44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE) | ||||
| 90460-01001 |
VZN10#,110,13# |
2 | ||
| 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) | ||||
| 90460-01001 |
VZN10#,110;RN101,110,VZN13#..SR5 |
2 | ||
| 90460-01001 |
VZN10#,110,13# |
2 | ||
| 90460-01001 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 90460-01001 |
RN10#,110,VZN10#,110,13# |
2 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-16009 |
RN101,110,13#..SR5 |
2 | ||
| 90401-16008 |
VZN10#,110,13# |
1 | ||
| 90401-16009 |
VZN100,110,13#..SR5 *16-1.5PX31.5-17 |
2 | ||
| 90401-16009 |
VZN110,13#..SR5 *17-1.5PX26-12 |
2 | ||
| 90401-16008 |
VZN100,110,13#..SR5 *16-1.5PX26-12 |
1 | ||
| 90401-16009 |
VZN110,13#..SR5 NO.2 |
2 | ||
| 90401-16008 |
VZN110,13#..SR5 NO.1 |
1 | ||
| 90401-16009 |
RN10#,110,13# |
2 | ||
| 90401-16008 |
VZN110,13#..SR5 *16-1.5PX31.5-17 |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-16242 |
VZN10#,110,13# TYPE A:REFER ILLUST. |
2 | ||
| 90430-16242 |
VZN100,110,13#..SR5 TYPE A:REFER ILLUST. |
6 | ||
| 90430-16242 |
RN101,110,13#..SR5 TYPE A:REFER ILLUST. |
4 | ||
| 90430-16242 |
RN10#,110,13# TYPE A:REFER ILLUST. |
4 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-35020 |
VZN10#,110,13# |
1 | ||
| 44441-20010 |
RN10#,110,13# |
1 | ||
| 44442 - BRACKET, PUMP, REAR | ||||
| 44442-35010 |
VZN10#,110,13# |
1 | ||
| 44453 - STAY, PUMP, FRONT | ||||
| 44453-35020 |
VZN10#,110..CND W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 44453-35040 |
VZN10#,110..CND W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 44453-35010 |
VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 90105-10211 | ||||
| 90105-10220 | ||||
| 90119-08667 | ||||
| 90179-10087 | ||||
| 91611-60814 | ||||
| 91611-61040 | ||||
| 91651-61022 | ||||
| 91651-61028 | ||||
(8808-9511)RN10#,110,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-35100 |
RN10#,110,13# |
1 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
RN10#,110,13# |
2 | ||
| 44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE) | ||||
| 90460-26001 |
RN10#,110,13# |
2 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-35010 |
RN10#,110,13# |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 90447-18039 |
RN10#,110,13# |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
VZN100,110..SR5;RN10#,110,13#,VZN13# |
2 | ||
| 90460-01001 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 90460-01001 |
RN10#,110,13# |
2 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
VZN100,110..SR5;RN10#,110,13#,VZN13# |
2 | ||
| 90460-01001 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 90460-01001 |
RN10#,110,13# |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
RN10#,110,13# |
2 | ||
| 90460-01001 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 90460-01001 |
VZN100,110..SR5;RN10#,110,13#,VZN13# |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
RN10#,110,13# |
2 | ||
| 90460-01001 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 90460-01001 |
VZN100,110..SR5;RN10#,110,13#,VZN13# |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-35290 |
RN10#,110,13# |
1 | ||
| 44411-35340 |
VZN100,110,13#..SR5 |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 90445-18138 |
RN10#,110,13# |
1 | ||
| 90445-18138 |
RN10#,110,13# |
1 | ||
| 44412-35130 |
RN101,110,13#..SR5 W(*66) |
1 | ||
| 44412-35130 |
RN10#,110,13# W(*66) |
1 | ||
| 90445-18138 |
RN101,110,13#..SR5 |
1 | ||
| 90445-18138 |
RN10#,110 |
1 | ||
| 44412-35130 |
RN10#,110 W(*66) |
1 | ||
| 44412-35090 |
VZN10#,110,13# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-35020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44420 - COOLER ASSY, OIL | ||||
| 44420-35040 |
RN10#,110 |
1 | ||
| 44420-35040 |
RN10#,110,13# |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-35020 |
VZN10#,110,13# |
1 | ||
| 44441-20010 |
RN10#,110,13# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-35020 |
RN10#,110,13# |
1 | ||
| 44445 - BRACKET, PUMP, LOWER | ||||
| 44445-35010 |
RN10#,110,13# |
1 | ||
| Common parts | ||||
| 90119-06429 | ||||
| 90949-01474 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91651-61022 | ||||
| 91656-40620 | ||||

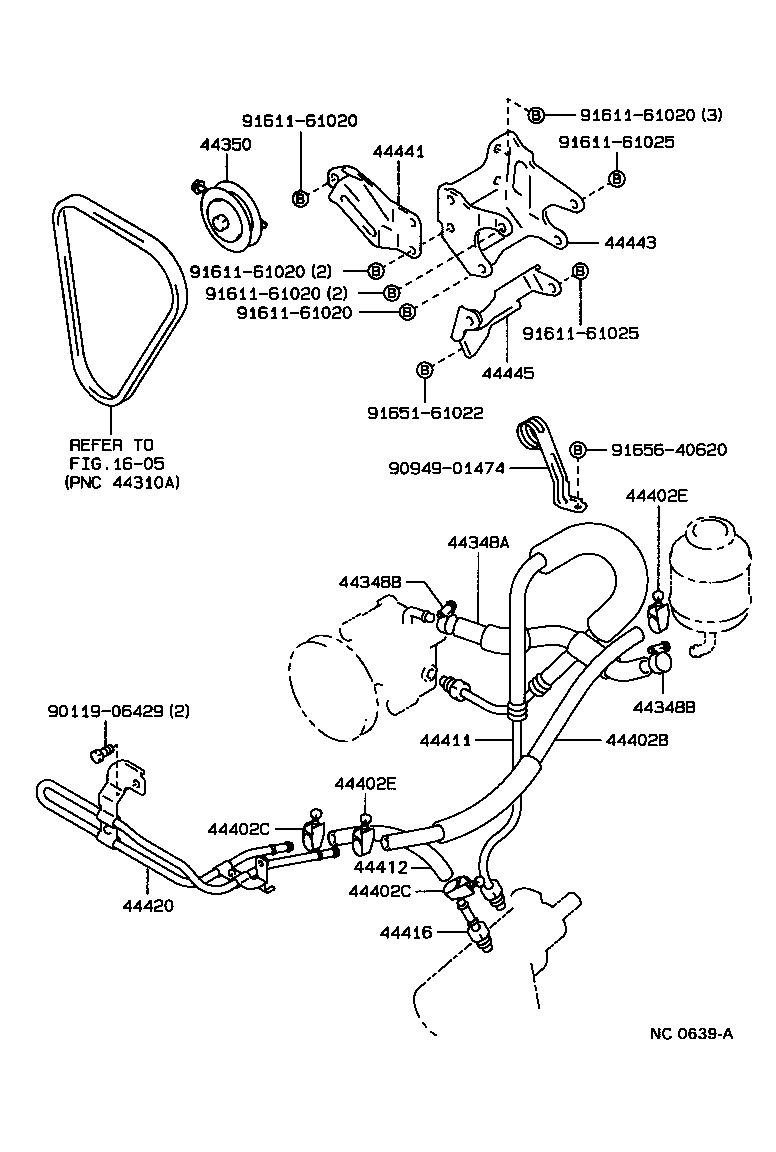

| Linked diagrams | ||||
| 1605 | ||||
