VZN110L-CRMDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9502)

Click highlighted areas on diagram

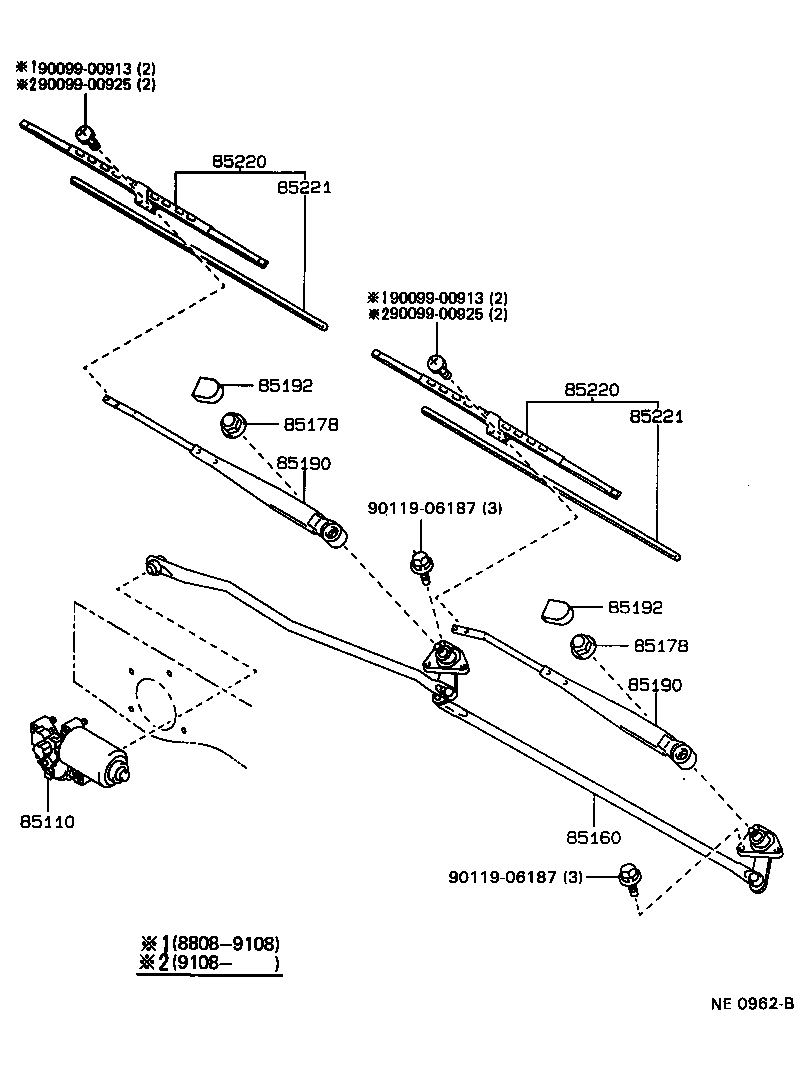

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 9009900913 9009900913 9009900925 9009900925 9011906187 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-89144

RN10#,110,131,VZN10#,110,131..CND

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-89128

RN10#,110,131,VZN10#,110,131..CND

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

RN10#,110,13#,VZN10#,110,13#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

RN10#,110,13#,VZN10#,110,13#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85210-89109

RN10#,110,13#,VZN10#,110,13#

RH

 1
85190-89137

RN10#,110,13#,VZN10#,110,13#

LH

 1
85211-35030

RN10#,110,13#,VZN10#,110,13#

RH

 1
85221-35020

RN10#,110,13#,VZN10#,110,13#

LH

 1
85211-35031

RN10#,110,13#,VZN100,110,13#

RH

 1
85210-89106

RN10#,110,13#,VZN10#,110,13#

RH

 1
85190-89144

RN10#,110,13#,VZN10#,110,13#

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85210-89109

RN10#,110,13#,VZN10#,110,13#

RH

 1
85190-89137

RN10#,110,13#,VZN10#,110,13#

LH

 1
85211-35030

RN10#,110,13#,VZN10#,110,13#

RH

 1
85221-35020

RN10#,110,13#,VZN10#,110,13#

LH

 1
85211-35031

RN10#,110,13#,VZN100,110,13#

RH

 1
85210-89106

RN10#,110,13#,VZN10#,110,13#

RH

 1
85190-89144

RN10#,110,13#,VZN10#,110,13#

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

RN10#,110,13#,VZN10#,110,13#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-12800

RN10#,110,13#,VZN10#,110,13#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-10120

RN10#,110,13#,VZN10#,110,13#

RH

 1
85220-12660

RN10#,110,13#,VZN10#,110,13#

LH

 1
85220-12671

RN10#,110,13#,VZN10#,110,13#

RH

 1
85220-12670

RN10#,110,13#,VZN10#,110,13#

RH

 1
85220-12661

RN10#,110,13#,VZN10#,110,13#

LH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85212-10120

RN10#,110,13#,VZN10#,110,13#

RH

 1
85220-12660

RN10#,110,13#,VZN10#,110,13#

LH

 1
85220-12671

RN10#,110,13#,VZN10#,110,13#

RH

 1
85220-12670

RN10#,110,13#,VZN10#,110,13#

RH

 1
85220-12661

RN10#,110,13#,VZN10#,110,13#

LH

 1
85221 - BLADE, WINDSHIELD WIPER
85221-89106

RN10#,110,13#,VZN10#,110,13#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-89106

RN10#,110,13#,VZN10#,110,13#

 2
Common parts
90099-00913
90099-00925
90119-06187
