VZN110L-CRMDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

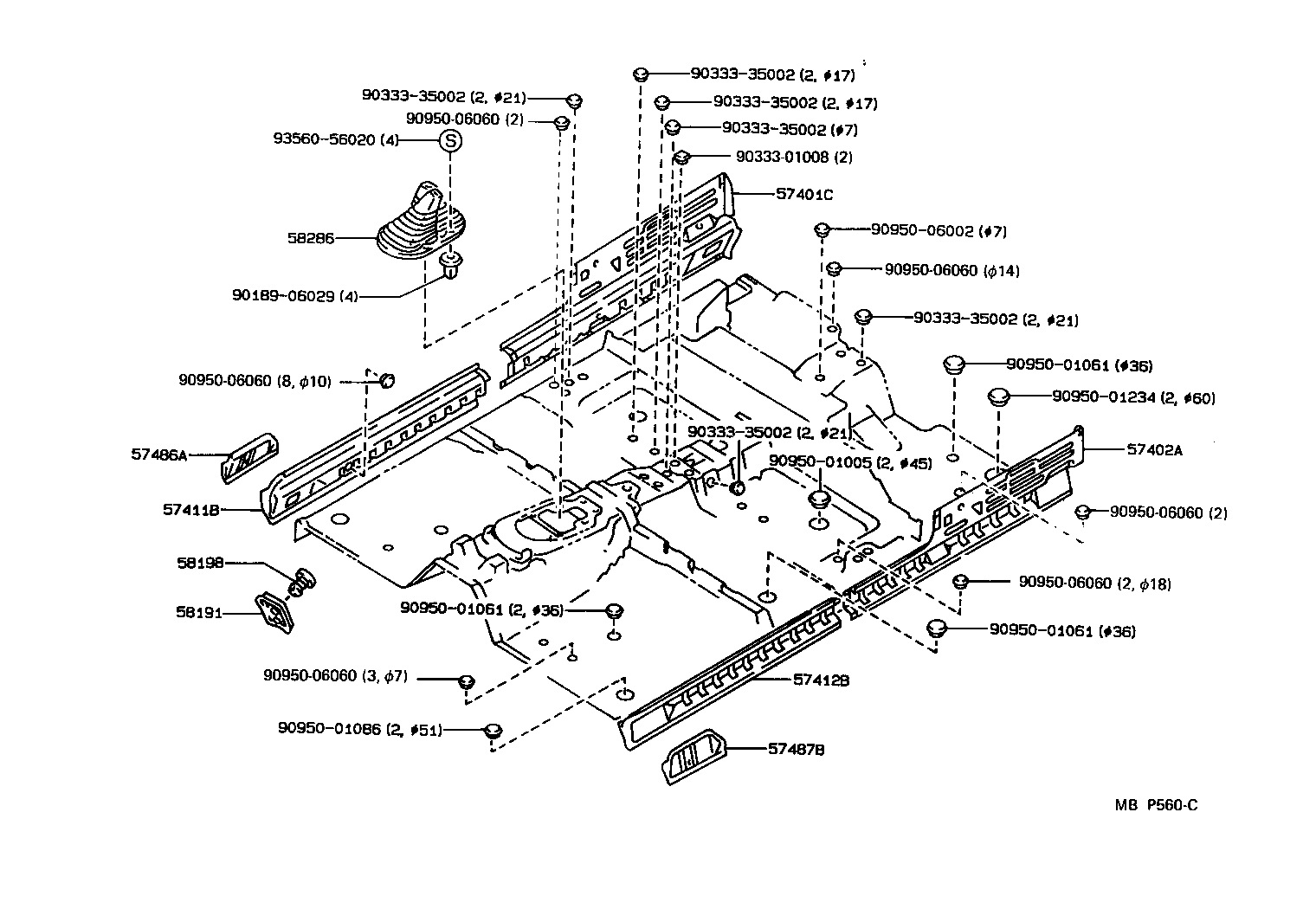

ILLUST NO. 1 OF 2(8808- )RN110,VZN110

Click highlighted areas on diagram

diagram 57401C 57402A 57411B 57412B 57486A 57487B 58191 58198 58286 9018906029 9033301008 9033335002 9033335002 9033335002 9033335002 9033335002 9033335002 9095001005 9095001061 9095001061 9095001061 9095001086 9095001234 9095006002 9095006060 9095006060 9095006060 9095006060 9095006060 9095006060 9356056020
Part # Description Qty Price
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-89115

RN110,VZN110

 1
57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-89115

RN110,VZN110

 1
57411B - MEMBER, FLOOR SIDE, INNER RH
57411-89104

RN10#,110,13#,VZN10#,110,13#

 1
57412B - MEMBER, FLOOR SIDE, INNER LH
57412-89106

RN10#,110,13#,VZN10#,110,13#

 1
57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57486-89104

RN10#,110,13#,VZN10#,110,13#

 1
57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57487-89102

RN10#,110,13#,VZN10#,110,13#

 1
58191 - FOOTREST, FRONT FLOOR
58192-89101

RN10#,110,13#,VZN10#,110,13#

 1
58198 - CLIP, FOOTREST
58198-89101

RN10#,110,13#,VZN10#,110,13#

 2
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-8912006

RN10#,110,VZN10#,110..(G,R)..DLX

BROWN,TRIM4#

 1
58280-8912002

RN10#,110,VZN10#,110..(G,R)..DLX

RED,TRIM3#

 1
58280-8912004

RN10#,110,VZN10#,110..(G,R)..DLX

BLUE,TRIM8#

 1
58280-35070B0

RN10#,110,VZN100,110..(G,R)..DLX

GRAY,TRIM1#

 1
58280-8912003

RN10#,110,VZN10#,110..(G,R)..DLX

GRAY,TRIM1#

 1
58280-35070J0

RN10#,110,VZN100,110..(G,R)..DLX

BLUE,TRIM8#

 1
58280-89120S4

RN10#,110,VZN10#,110..(G,R)..DLX

GRAY,TRIM1#

 1
58280-89120R9

RN10#,110,VZN10#,110..(G,R)..DLX

BLUE,TRIM8#

 1
Common parts
90189-06029
90333-01008
90333-35002
90950-01005
90950-01061
90950-01086
90950-01234
90950-06002
90950-06060
93560-56020

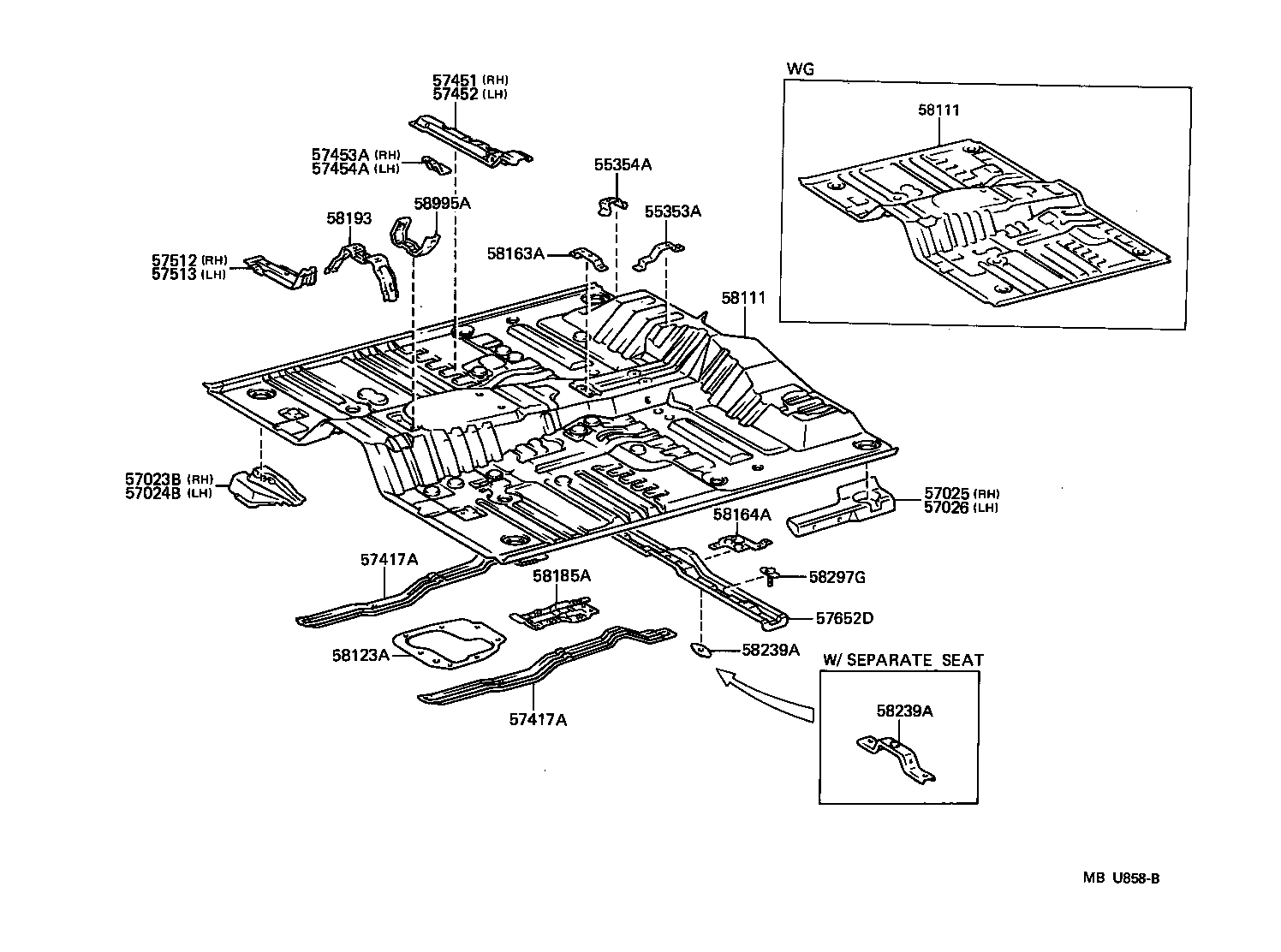

ILLUST NO. 2 OF 2(8912- )

Click highlighted areas on diagram

diagram 55353A 55354A 57023B 57024B 57025 57026 57417A 57417A 57451 57452 57453A 57454A 57512 57513 57652D 58111 58111 58123A 58163A 58164A 58185A 58193 58239A 58239A 58297G 58995A
Part # Description Qty Price
57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57023-89101

RN10#,110,VZN10#,110

 1
57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57024-89101

RN10#,110,VZN10#,110

 1
57417A - REINFORCEMENT, FRONT FLOOR UNDER
57417-89104

RN110,VZN110

 2
57417A - REINFORCEMENT, FRONT FLOOR UNDER
57417-89104

RN110,VZN110

 2
57452 - MEMBER, FRONT FLOOR CROSS, LH
57452-89105

RN10#,110,13#,VZN10#,110,13#

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-89102

RN10#,110,13#,VZN10#,110,13#

 1
58297G - RETAINER, FLOOR CLAMP
58297-89108

RN110,VZN110

 2
