VZN110L-CRMDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9511)

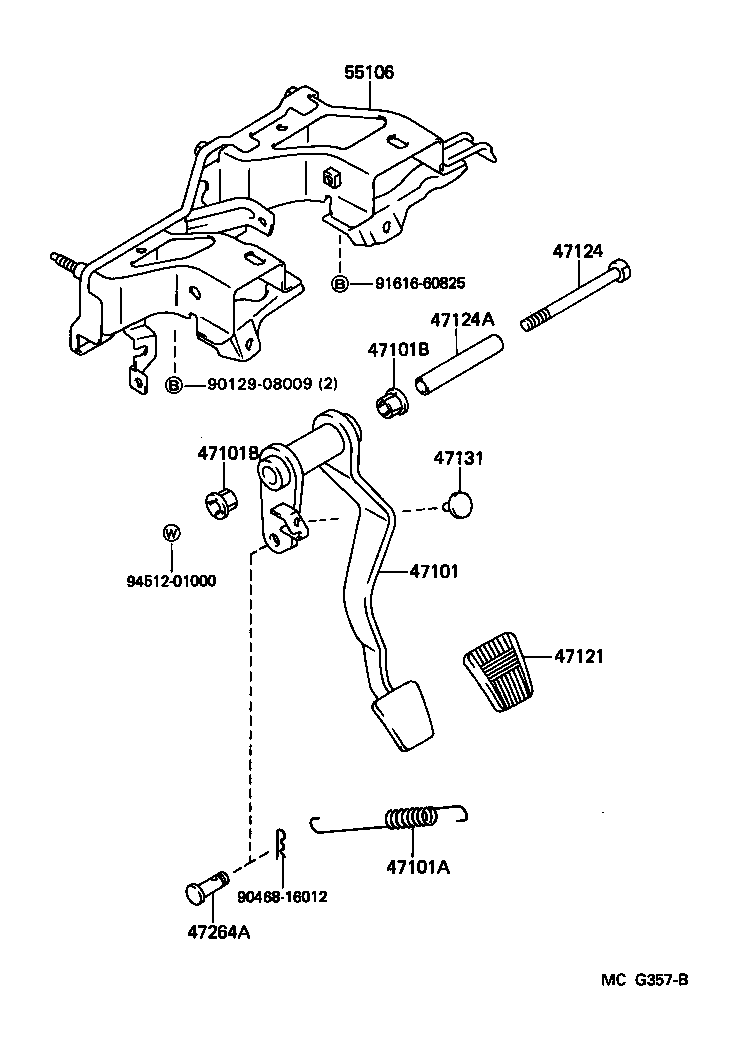

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 9012908009 9046816012 9161660825 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-35280

RN10#,110,13#,VZN10#,110,13#..5F

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-14020

RN10#,110,13#,VZN10#,110,13#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

RN10#,110,13#,VZN10#,110,13#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

RN10#,110,13#,VZN10#,110,13#

 2
47121 - PAD, BRAKE PEDAL
31321-14020

RN10#,110,13#,VZN10#,110,13#..5F

 1
47124 - SHAFT, BRAKE PEDAL
90101-10480

RN10#,110,13#,VZN10#,110,13#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
47144-35030

RN10#,110,13#,VZN10#,110,13#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

RN10#,110,13#,VZN10#,110,13#

 1
90541-06032

RN10#,110,13#,VZN10#,110,13#

 1
90541-06036

RN10#,110,13#,VZN100,110,13#..5F

 1
47264A - PIN(FOR PUSH ROD)
90249-10064

RN10#,110,13#,VZN10#,110,13#

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-89128

RN10#,110,13#..5F

 1
55106-89130

VZN10#,110,13#..R

 1
Common parts
90129-08009
90468-16012
91616-60825
94512-01000
