VZN105L-TRPDEA3 (1988)
Toyota 4-Runner Truck (Jpp)

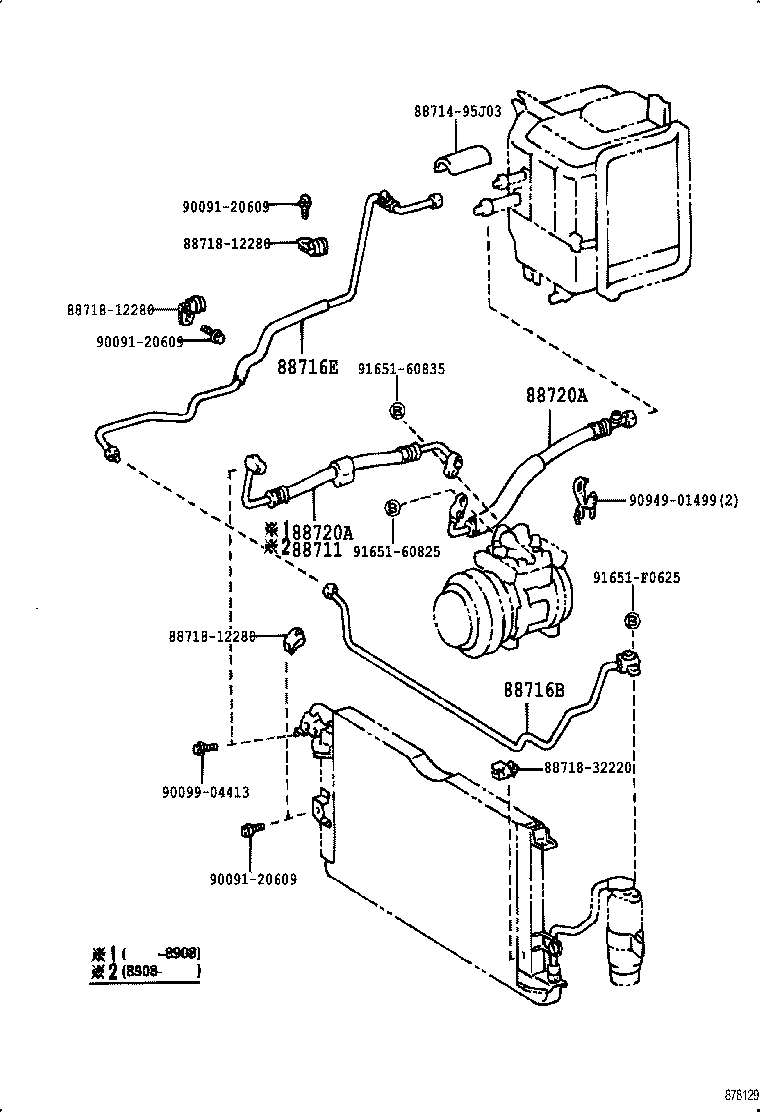

ILLUST NO. 2 OF 2(8808- )VZN10#,110
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-89162 |
RN10#,110,VZN10#,110 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89170 |
VZN10#,110,130 |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89123 |
VZN10#,110..USA SUCTION |
1 | ||
| 88720-89126 |
VZN10#,110..USA DISCHARGE |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89123 |
VZN10#,110..USA SUCTION |
1 | ||
| 88720-89126 |
VZN10#,110..USA DISCHARGE |
1 | ||
| Common parts | ||||
| 88714-95J03 | ||||
| 88718-12280 | ||||
| 88718-32220 | ||||
| 90091-20609 | ||||
| 90099-04413 | ||||
| 90949-01499 | ||||
| 91651-60825 | ||||
| 91651-60835 | ||||
| 91651-F0625 | ||||

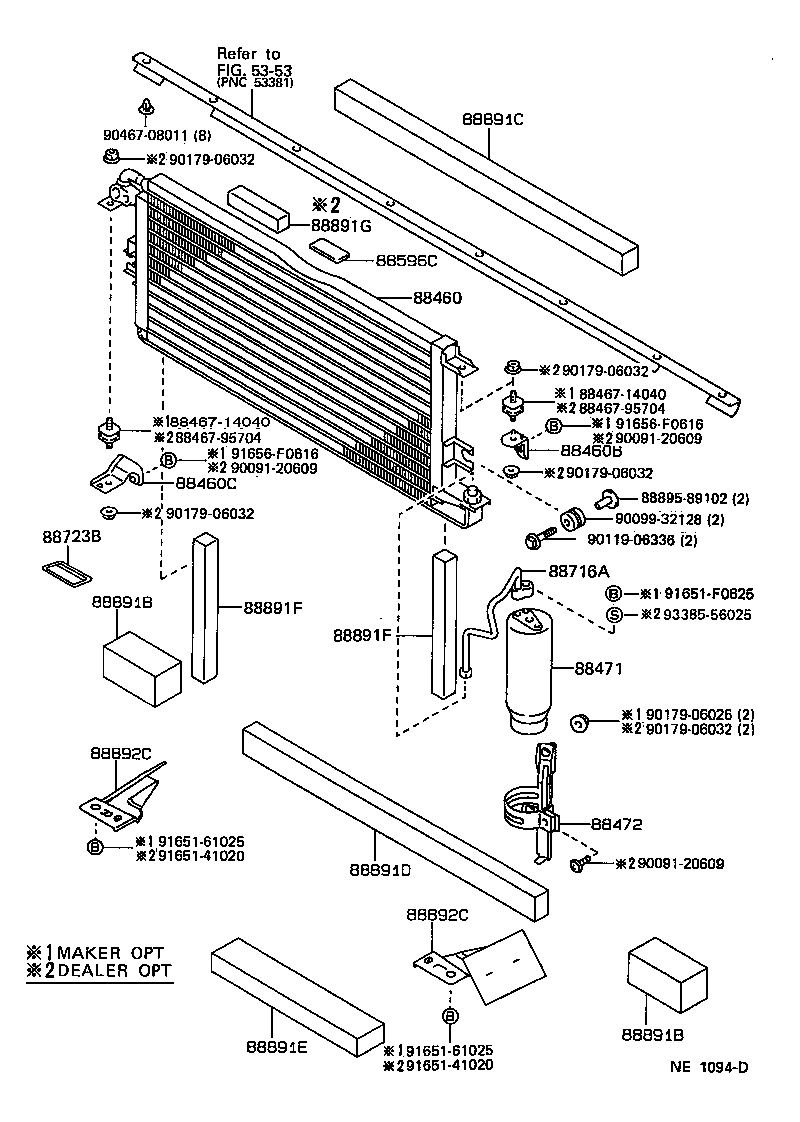

ILLUST NO. 1 OF 2(8808- )RN10#,110,VZN10#,110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89115 |
RN10#,110,VZN10#,110 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-89120 |
RN10#,110,VZN10#,110 |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-89121 |
RN10#,110;VZN10#,110..USA |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89110 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88596C - PLATE, CAUTION, NO.2 | ||||
| 88723-12010 |
RN10#,110,130,VZN10#,110,130 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89163 |
RN10#,110,VZN10#,110 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89111 |
RN10#,110,VZN10#,110,130..USA |
2 | ||
| 88891E - PACKING E (FOR COOLER) | ||||
| 88578-89112 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89123 |
RN10#,110,VZN10#,110 RH |
1 | ||
| 88578-89122 |
RN10#,110,VZN10#,110 LH |
1 | ||
| 88891F - PACKING F (FOR COOLER) | ||||
| 88578-89123 |
RN10#,110,VZN10#,110 RH |
1 | ||
| 88578-89122 |
RN10#,110,VZN10#,110 LH |
1 | ||
| 88891G - PACKING G (FOR COOLER) | ||||
| 88578-89107 |
RN10#,110,13#,VZN10#,110 |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89116 |
VZN10#,110 W(DEALER OPTION AIR CONDITIONER),RH |
1 | ||
| 88892-89117 |
VZN10#,110..USA W(MAKER OPTION AIR CONDITIONER),LH |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 88892-89116 |
VZN10#,110..USA;RN10#,110,13#,VZN130 RH |
1 | ||
| 88892-89116 |
VZN10#,110 W(DEALER OPTION AIR CONDITIONER),RH |
1 | ||
| 88892-89117 |
VZN10#,110..USA W(MAKER OPTION AIR CONDITIONER),LH |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88467-95704 | ||||
| 88895-89102 | ||||
| 90091-20609 | ||||
| 90099-32128 | ||||
| 90119-06336 | ||||
| 90179-06026 | ||||
| 90179-06032 | ||||
| 90467-08011 | ||||
| 91651-41020 | ||||
| 91651-61025 | ||||
| 91651-F0625 | ||||
| 91656-F0616 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5353 | ||||

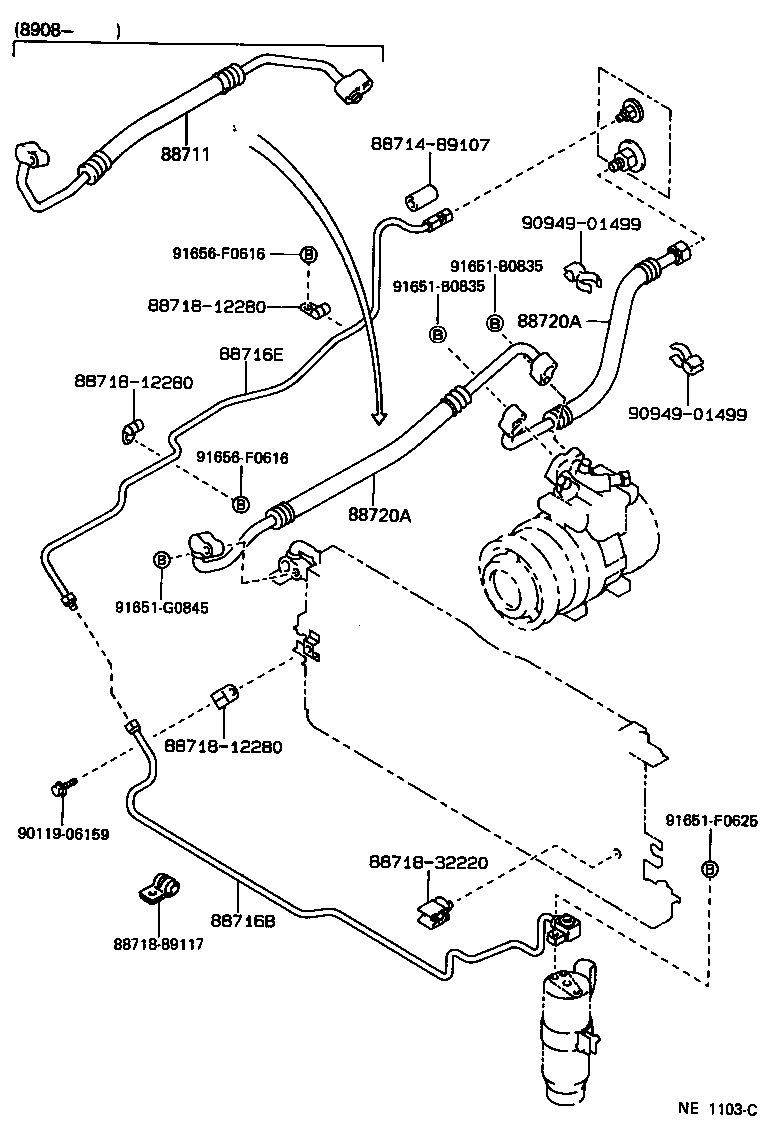

ILLUST NO. 2 OF 2(8808- )VZN10#,110..USA
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-89162 |
RN10#,110,VZN10#,110 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89170 |
VZN10#,110,130 |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89123 |
VZN10#,110..USA SUCTION |
1 | ||
| 88720-89126 |
VZN10#,110..USA DISCHARGE |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-89123 |
VZN10#,110..USA SUCTION |
1 | ||
| 88720-89126 |
VZN10#,110..USA DISCHARGE |
1 | ||
| Common parts | ||||
| 88714-89107 | ||||
| 88718-12280 | ||||
| 88718-32220 | ||||
| 88718-89117 | ||||
| 90119-06159 | ||||
| 90949-01499 | ||||
| 91651-B0835 | ||||
| 91651-F0625 | ||||
| 91651-G0845 | ||||
| 91656-F0616 | ||||
