VZN105L-TRPDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN10#,110,VZN10#,110

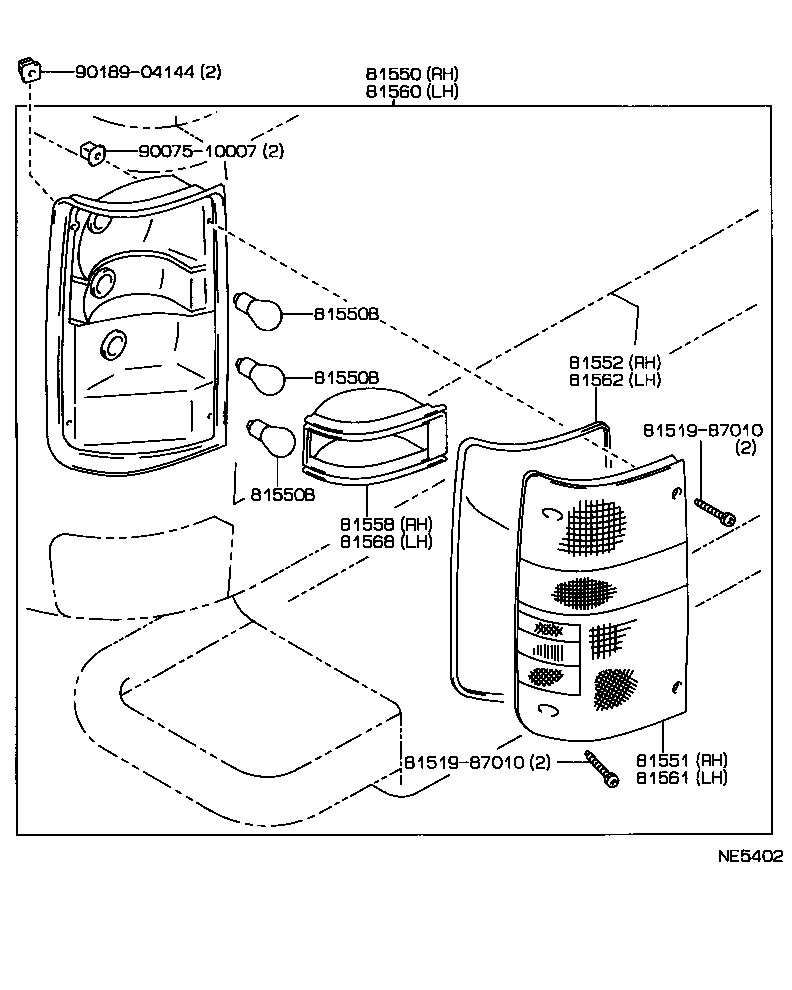

Click highlighted areas on diagram

diagram 8151987010 8151987010 81550 81550B 81550B 81550B 81551 81552 81558 81560 81561 81562 81568 9007510007 9018904144
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-89166

RN10#,110,VZN10#,110

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

RN10#,110,VZN10#,110

12V 27W

 4
99132-21270

RN10#,110,13#,VZN10#,110,13#

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

RN10#,110,VZN10#,110

12V 27W

 4
99132-21270

RN10#,110,13#,VZN10#,110,13#

12V 27/8W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11270

RN10#,110,VZN10#,110

12V 27W

 4
99132-21270

RN10#,110,13#,VZN10#,110,13#

12V 27/8W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-89166

RN10#,110,VZN10#,110

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-89163

RN10#,110,VZN10#,110

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-89163

RN10#,110,VZN10#,110

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-89166

RN10#,110,VZN10#,110

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-89166

RN10#,110,VZN10#,110

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-89163

RN10#,110,VZN10#,110

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81567-89163

RN10#,110,VZN10#,110

 1
Common parts
81519-87010
90075-10007
90189-04144
