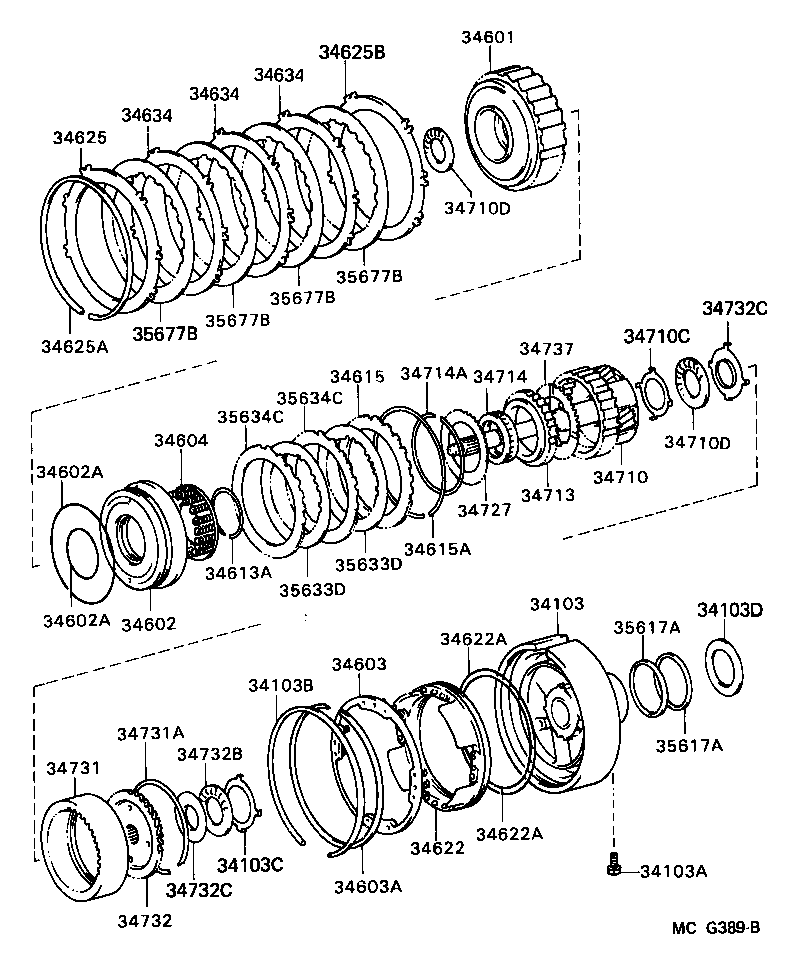

VZN105L-TRPDEA3 (1988)
Toyota 4-Runner Truck (Jpp)
(8808- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34103 - SUPPORT SUB-ASSY, OVERDRIVE | ||||
| 34103-30011 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34103A - BOLT (FOR OVERDRIVE SUPPORT) | ||||
| 90105-08065 |
RN10#,110,13#,VZN105,110,13#..4FC |
2 | ||
| 34103B - RING, HOLE SNAP (FOR OVERDRIVE SUPPORT) | ||||
| 90521-99033 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34103C - RACE, THRUST BEARING (FOR OVERDRIVE SUPPORT FRONT) | ||||
| 35789-22060 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34103D - RACE, THRUST BEARING (FOR OVERDRIVE SUPPORT REAR) | ||||
| 35789-30090 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-30030 |
VZN105,110,13#..4FC |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30020 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99036 |
RN10#,110,13#,VZN105,110,13#..4FC OUTER |
1 | ||
| 90301-65005 |
RN10#,110,13#,VZN105,110,13#..4FC INNER |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99036 |
RN10#,110,13#,VZN105,110,13#..4FC OUTER |
1 | ||
| 90301-65005 |
RN10#,110,13#,VZN105,110,13#..4FC INNER |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-30010 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34603A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90521-99031 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-30010 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34613A - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SP | ||||
| 90520-58001 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 34615-30020 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.6 |
1 | ||
| 34615-30030 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.5 |
1 | ||
| 34615-30070 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.1 |
1 | ||
| 34615-30040 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.4 |
1 | ||
| 34615-30060 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.2 |
1 | ||
| 34615-30050 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.3 |
1 | ||
| 34615A - RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) | ||||
| 90521-99001 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-30030 |
VZN105,110,13#..4FC |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99035 |
RN10#,110,13#,VZN105,110,13#..4FC INNER |
1 | ||
| 90301-99037 |
RN10#,110,13#,VZN105,110,13#..4FC OUTER |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99035 |
RN10#,110,13#,VZN105,110,13#..4FC INNER |
1 | ||
| 90301-99037 |
RN10#,110,13#,VZN105,110,13#..4FC OUTER |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-30080 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.5 |
1 | ||
| 34625-30060 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.7 |
1 | ||
| 34625-30070 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.6 |
1 | ||
| 34625-30050 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.8 |
1 | ||
| 34625-30040 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.9 |
1 | ||
| 34625-30100 |
RN10#,110,13#,VZN105,110,13#..4FC T=4.0,NO MARK |
1 | ||
| 34625-30090 |
RN10#,110,13#,VZN105,110,13#..4FC T=3.3 |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99027 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34625B - FLANGE, OVERDRIVE BRAKE, NO.2 | ||||
| 34625-30030 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-30020 |
VZN105,110,13#..4FC |
3 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-30020 |
VZN105,110,13#..4FC |
3 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-30020 |
VZN105,110,13#..4FC |
3 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-30030 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-30050 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-28008 |
RN10#,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90374-25005 |
RN10#,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-28008 |
RN10#,110,13#,VZN105,110,13#..4FC FR |
1 | ||
| 90374-25005 |
RN10#,110,13#,VZN105,110,13#..4FC RR |
1 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-32010 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-30040 |
RN106,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34714A - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-99028 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34727 - PLATE, RETAINING (FOR OVERDRIVE) | ||||
| 34727-32010 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34731 - GEAR, OVERDRIVE PLANETARY RING | ||||
| 34731-30030 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34731A - RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) | ||||
| 90521-99024 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-22010 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34732B - BEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 90374-33002 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34732C - RACE, THRUST BEARING (FOR OVERDRIVE PLANETARY RING GEAR | ||||
| 35789-30060 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34732C - RACE, THRUST BEARING (FOR OVERDRIVE PLANETARY RING GEAR | ||||
| 35789-30060 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30030 |
RN10#,110,13#,VZN105,110,13#..4FC |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-30020 |
RN10#,110,13#,VZN105,110,13#..4FC |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-30020 |
RN10#,110,13#,VZN105,110,13#..4FC |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-30040 |
VZN105,110,13#..4FC |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-30040 |
VZN105,110,13#..4FC |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
VZN105,110,13#..4FC T=2.0 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
VZN105,110,13#..4FC T=2.0 |
2 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30010 |
VZN105,110,13#..4FC |
4 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30010 |
VZN105,110,13#..4FC |
4 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30010 |
VZN105,110,13#..4FC |
4 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30010 |
VZN105,110,13#..4FC |
4 | ||
