VZN105L-TRPDEA (1988)
Toyota 4-Runner Truck (Jpp)

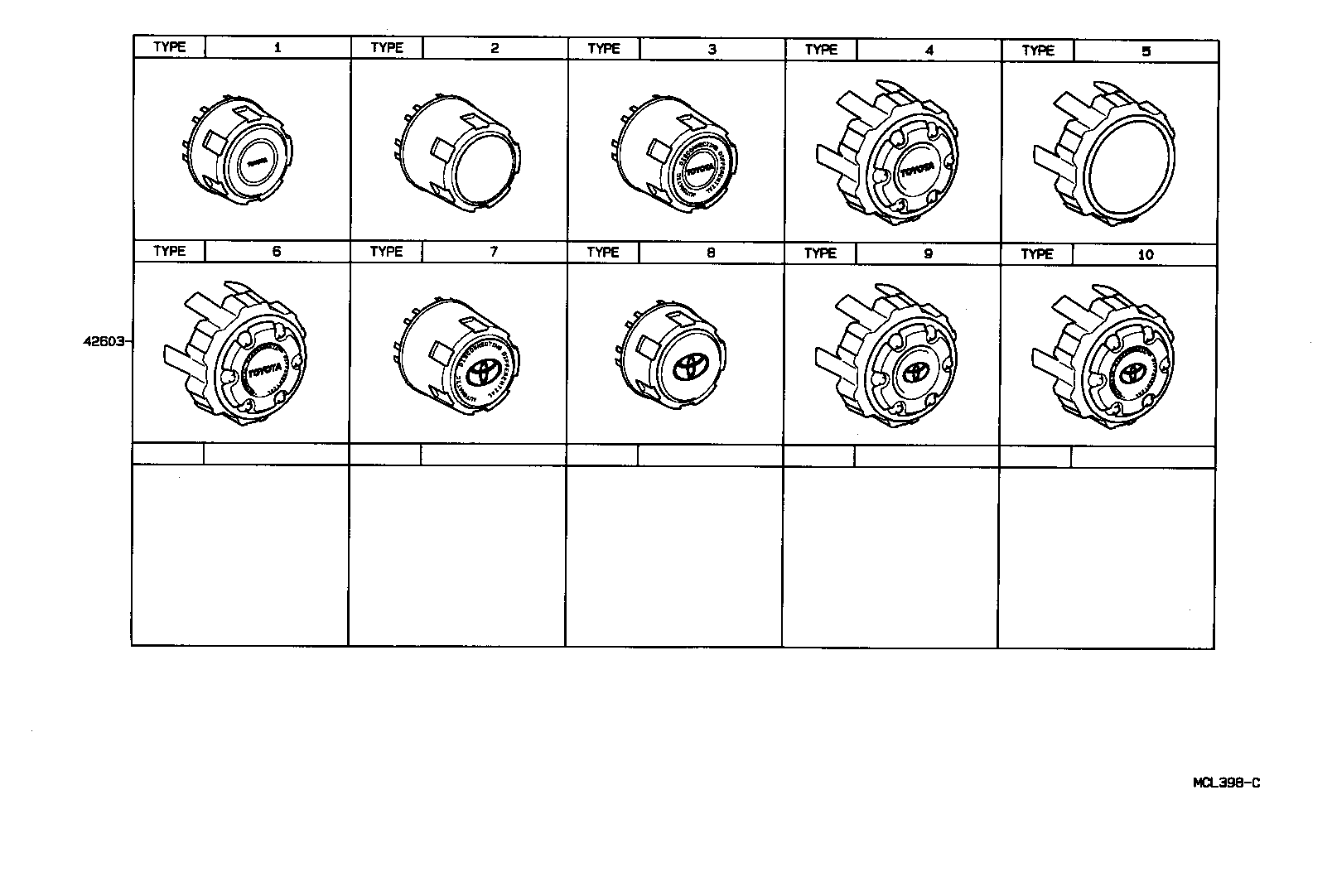

ILLUST NO. 2 OF 3(8808-9511)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-35320 |
RN101,110,13#..W;RN101,110,13#..4FC;RN106,VZN10#,110..DLX *STE,FR,TYPE 2 |
2 | ||
| 42603-35440 |
VZN10#,110,13# *ALU,W(ALUMINUM WHEEL),RR,TYPE 4 |
2 | ||
| 42603-35310 |
VZN10#,110..DLX *CHR,RR,TYPE 1 |
2 | ||
| 42603-35320 |
VZN10#,110..DLX *STE,FR,TYPE 2 |
2 | ||
| 42603-35430 |
VZN10#,110..DLX *ALU,W(ALUMINUM WHEEL),FR,TYPE 5 |
2 | ||

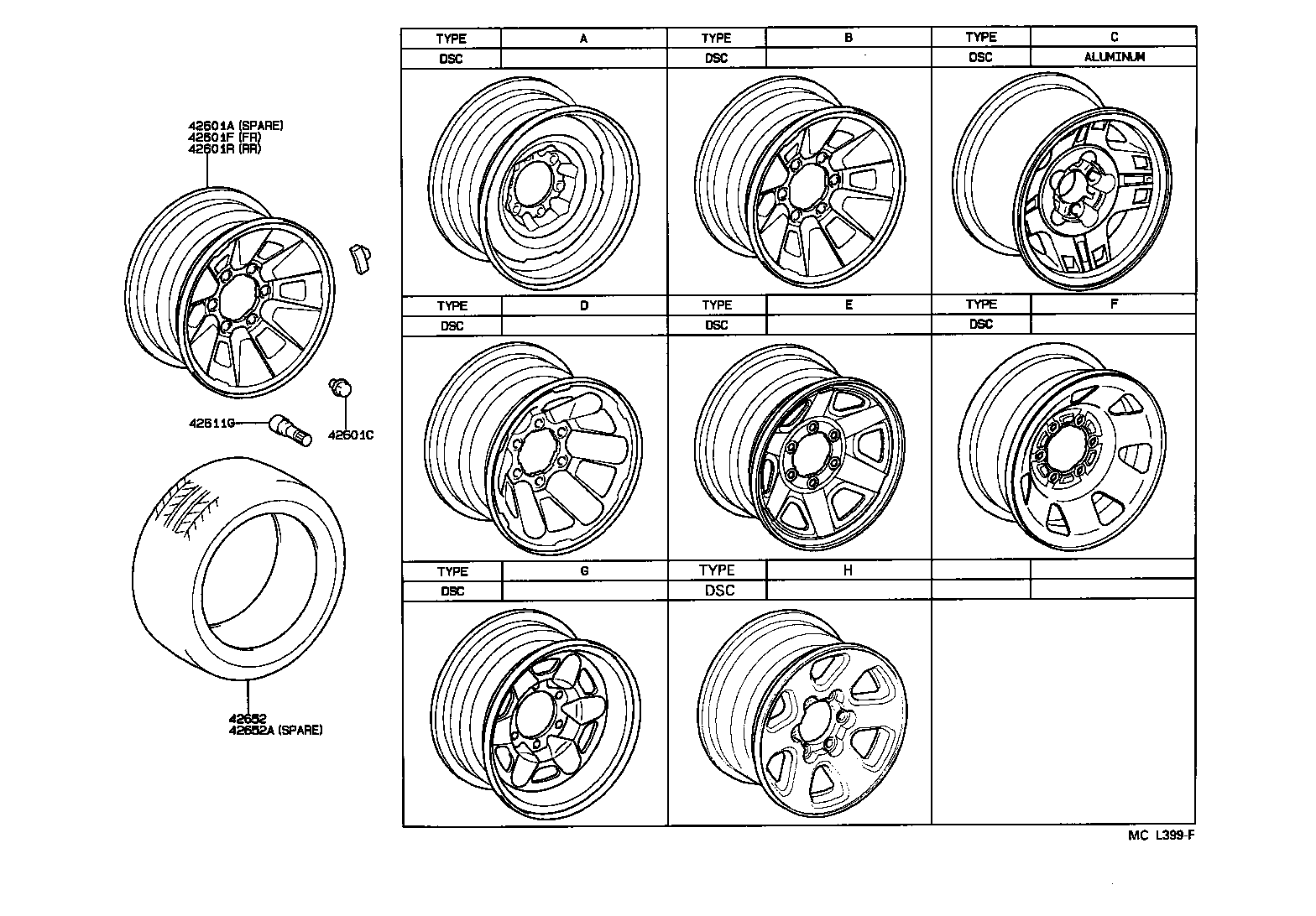

ILLUST NO. 1 OF 3(8808-9511)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-3550003 |
RN10#,VZN10#;RN110..W..IV3;RN110..4FC..IV3;VZN110..SR5..IV3;RN110,VZN110..CBU;VZN110..R..DLX..IV3 15X6JJ,TYPE A,SILVER M.,033 ,138 ,147 ,202 ,3H4 ,3H7 ,4K4 ,8D8 ,8E2 |
1 | ||
| 42611-35070 |
VZN10#,110,13# 15X7JJ,SILVER,TYPE C |
1 | ||
| 42601-3550003 |
RN10#,110,VZN10#,110 15X6JJ,TYPE A,SILVER M.,033 ,147 ,179 ,202 ,3H4 ,3H7 ,8D8 ,8E2 |
1 | ||
| 42601-3550003 |
VZN110;RN10#,110,VZN10#..DLX 15X6JJ,TYPE A,SILVER M.,033 ,147 ,179 ,202 ,27L ,3H4 ,3H7 ,8D8 ,8E2 |
1 | ||
| 42601-3551003 |
RN10#,110,VZN10#,110..DLX 15X6JJ,OFFSET 30, #,TYPE B,SILVER M. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01077 |
VZN10#,110 W(ALUMINUM WHEEL) |
24 | ||
| 90942-01028 |
RN10#,110,VZN10#,110..DLX |
24 | ||
| 90942-01048 |
RN10#,110,VZN10#,110..DLX CAP NUT |
24 | ||
| 90942-01053 |
VZN10#,110 W(ALUMINUM WHEEL) |
24 | ||
| 90942-01075 |
RN10#,110,VZN10#,110..DLX CAP NUT |
24 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-3550003 |
RN10#,VZN10#;RN110..W..IV3;RN110..4FC..IV3;VZN110..SR5..IV3;RN110,VZN110..CBU;VZN110..R..DLX..IV3 15X6JJ,TYPE A,SILVER M.,033 ,138 ,147 ,202 ,3H4 ,3H7 ,4K4 ,8D8 ,8E2 |
2 | ||
| 42601-3550003 |
RN10#,110,VZN10#,110 15X6JJ,TYPE A,SILVER M.,033 ,147 ,179 ,202 ,3H4 ,3H7 ,8D8 ,8E2 |
2 | ||
| 42611-35070 |
VZN10#,110,13# 15X7JJ,SILVER,TYPE C |
2 | ||
| 42601-3550003 |
VZN110;RN10#,110,VZN10#..DLX 15X6JJ,TYPE A,SILVER M.,033 ,147 ,179 ,202 ,27L ,3H4 ,3H7 ,8D8 ,8E2 |
2 | ||
| 42601-3551003 |
RN10#,110,VZN10#,110..DLX 15X6JJ,OFFSET 30, #,TYPE B,SILVER M. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-3550003 |
RN10#,VZN10#;RN110..W..IV3;RN110..4FC..IV3;VZN110..SR5..IV3;RN110,VZN110..CBU;VZN110..R..DLX..IV3 15X6JJ,TYPE A,SILVER M.,033 ,138 ,147 ,202 ,3H4 ,3H7 ,4K4 ,8D8 ,8E2 |
2 | ||
| 42601-3550003 |
RN10#,110,VZN10#,110 15X6JJ,TYPE A,SILVER M.,033 ,147 ,179 ,202 ,3H4 ,3H7 ,8D8 ,8E2 |
2 | ||
| 42611-35070 |
VZN10#,110,13# 15X7JJ,SILVER,TYPE C |
2 | ||
| 42601-3550003 |
VZN110;RN10#,110,VZN10#..DLX 15X6JJ,TYPE A,SILVER M.,033 ,147 ,179 ,202 ,27L ,3H4 ,3H7 ,8D8 ,8E2 |
2 | ||
| 42601-3551003 |
RN10#,110,VZN10#,110..DLX 15X6JJ,OFFSET 30, #,TYPE B,SILVER M. |
2 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
RN10#,110,13#,VZN10#,110,13# |
5 | ||
| 42652 - TIRE | ||||
| 42652-35490 |
VZN10#,110,13# 31X10.50R15LT,W(ALUMINUM WHEEL) |
4 | ||
| 42652-35550 |
RN10#,110,VZN10#,110..DLX P225/75R15,USA,*D/L |
4 | ||
| 42652-35460 |
RN10#,110,VZN10#,110..DLX P225/75R15,*B/S |
4 | ||
| 42652-35560 |
RN10#,110,VZN10#,110..DLX P225/75R15,USA,*B/S |
4 | ||
| 42652-35480 |
VZN10#,110,13# 31X10.50R15-4PR,W(ALUMINUM WHEEL) |
4 | ||
| 42652-35310 |
RN10#,110,VZN10#,110..DLX P225/75R15,*T/Y |
4 | ||
| 42652-35600 |
RN10#,110,VZN10#,110..DLX P225/75R15,*D/L |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-35480 |
VZN10#,110,13# 31X10.50R15-4PR |
1 | ||
| 42652-35490 |
VZN10#,110,13# 31X10.50R15LT |
1 | ||
| 42652-35310 |
RN10#,110,13#,VZN10#,110,13# P225/75R15,*T/Y |
1 | ||
| 42652-35560 |
RN10#,110,13#,VZN10#,110,13# P225/75R15,USA,*B/S |
1 | ||
| 42652-35460 |
RN10#,110,13#,VZN10#,110,13# P225/75R15,*B/S |
1 | ||
| 42652-35550 |
RN10#,110,13#,VZN10#,110,13# P225/75R15,USA,*D/L |
1 | ||
| 42652-35600 |
RN10#,110,13#,VZN10#,110,13# P225/75R15,*D/L |
1 | ||
ILLUST NO. 3 OF 3(8808-9511)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03079 | ||||
| 90942-03080 | ||||
| 90942-03081 | ||||
| 90942-03082 | ||||
| 90942-03083 | ||||
| 90942-03084 | ||||
| 90942-03085 | ||||
| 90942-03086 | ||||
| 90942-03092 | ||||
| 90942-03093 | ||||
| 90942-03094 | ||||
| 90942-03095 | ||||
| 90942-03096 | ||||
| 90942-03097 | ||||
| 90942-03107 | ||||
| 90942-03110 | ||||
| 90942-03111 | ||||
| 90942-03112 | ||||
| 90942-03113 | ||||
| 90942-03114 | ||||
| 90942-03115 | ||||
| 90942-03116 | ||||
| 90942-03117 | ||||
| 90942-03118 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03157 | ||||
| 90942-03158 | ||||
| 90942-03159 | ||||
| 90942-03160 | ||||
| 90942-03167 | ||||
| 90942-03218 | ||||
| 90942-03219 | ||||
| 90942-03220 | ||||
| 90942-03221 | ||||
| 90942-03222 | ||||
| 90942-03223 | ||||
| 90942-03224 | ||||
| 90942-03225 | ||||
