VZN105L-TRMDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

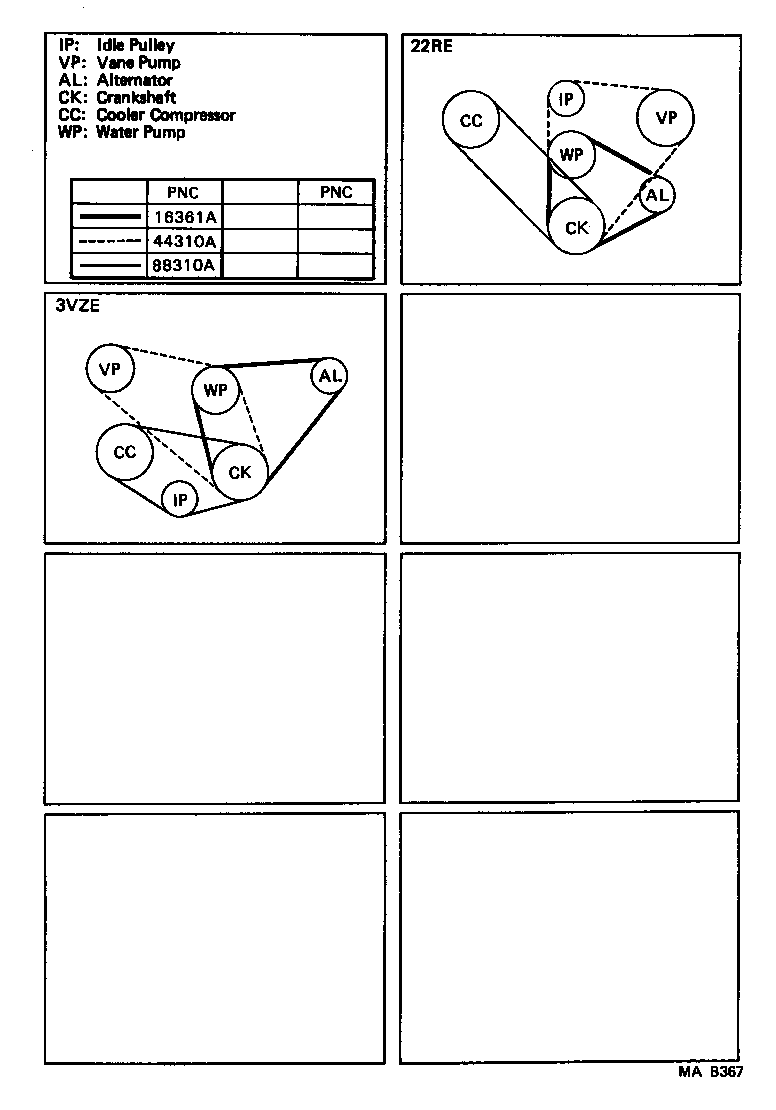

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02194

3VZE..VZN10#,110,13#

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02196

VZN10#,110,13#

L=1205

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-10890

VZN10#,110,130

L=890

 1
99332-10890

VZN10#,110,13#

L=890

 1
