VZN105L-TRMDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

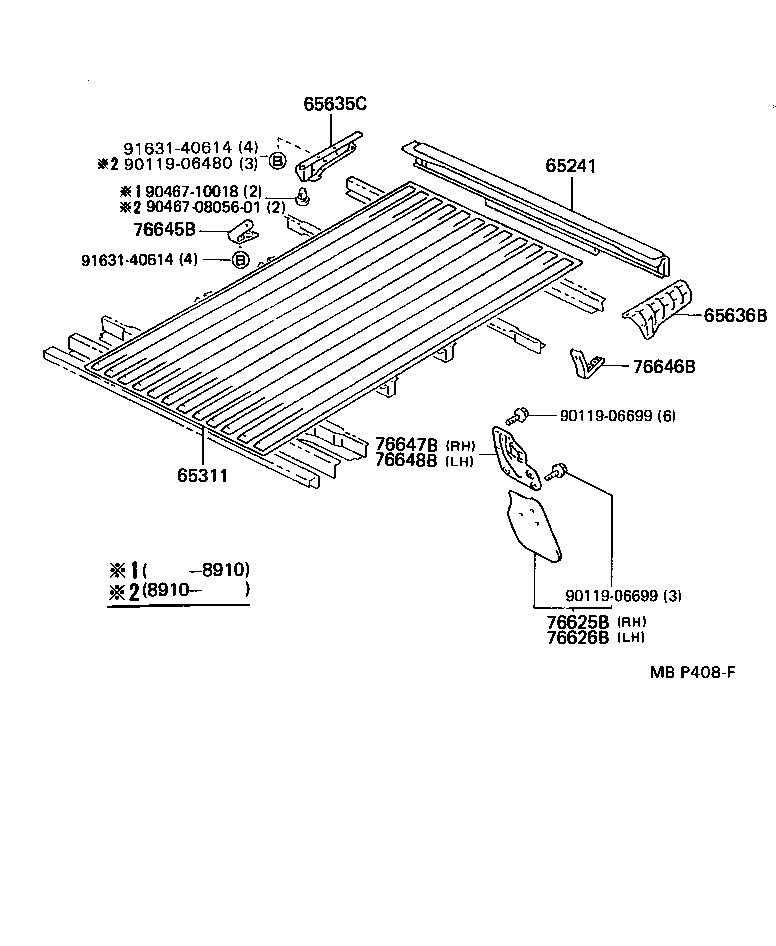

Click highlighted areas on diagram

diagram 65241 65311 65635C 65636B 76625B 76626B 76645B 76646B 76647B 76648B 9011906480 9011906699 9011906699 904670805601 9046710018 9163140614 9163140614
Part # Description Qty Price
65241 - SILL, REAR CROSS
65240-89129

RN10#,110,VZN10#,110

 1
65311 - PANEL, FLOOR, CENTER
65311-89129

RN106,VZN105

 1
65635C - PLATE, REAR WHEEL HOUSE, REAR RH
65635-89111

RN106,VZN105

 1
65636B - PLATE, REAR WHEEL HOUSE, REAR LH
65636-89110

RN106,VZN105

 1
76625B - MUDGUARD, REAR BODY, RH
76625-39205

RN10#,110,VZN10#,110

 1
76626B - MUDGUARD, REAR BODY, LH
76626-39205

RN10#,110,VZN10#,110

 1
76645B - BRACKET, REAR BODY MUDGUARD, RH
76645-89101

RN10#,110,VZN10#,110

 1
76646B - BRACKET, REAR BODY MUDGUARD, LH
76646-89101

RN10#,110,VZN10#,110

 1
76647B - SUPPORT, REAR BODY MUDGUARD, RH
76647-89106

RN10#,110,VZN10#,110

 1
76648B - SUPPORT, REAR BODY MUDGUARD, LH
76648-89106

RN10#,110,VZN10#,110

 1
Common parts
90119-06480
90119-06699
90467-0805601
90467-10018
91631-40614
