VZN105L-TRMDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN10#,VZN10#

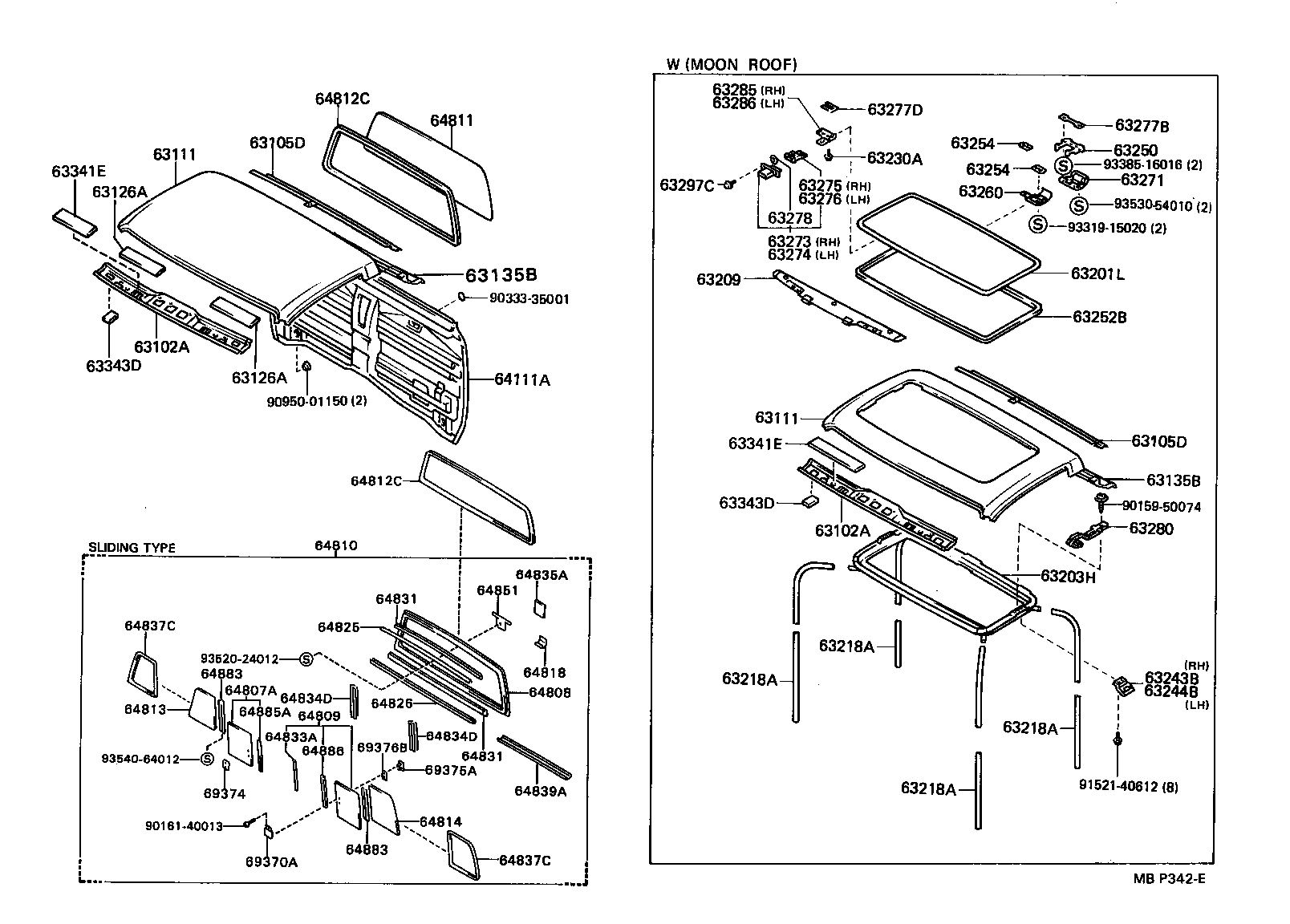

Click highlighted areas on diagram

diagram 63102A 63102A 63105D 63105D 63111 63111 63126A 63126A 63135B 63135B 63201L 63203H 63209 63218A 63218A 63218A 63218A 63230A 63243B 63244B 63250 63252B 63254 63254 63260 63271 63273 63274 63275 63276 63277B 63277D 63278 63280 63285 63286 63297C 63341E 63341E 63343D 63343D 64111A 64807A 64808 64809 64810 64811 64812C 64812C 64813 64814 64818 64825 64826 64831 64831 64833A 64834D 64834D 64835A 64837C 64837C 64839A 64851 64883 64883 64885A 64886 69370A 69374 69375A 69376B 9015950074 9016140013 9033335001 9095001150 9152140612 9331915020 9338516016 9352024012 9353054010 9354064012
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-89106

RN10#,110,VZN10#,110

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-89106

RN10#,110,VZN10#,110

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-89107

RN10#,VZN10#

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-89107

RN10#,VZN10#

 1
63111 - PANEL, ROOF
63111-89118

RN10#,VZN10#

 1
63111 - PANEL, ROOF
63111-89118

RN10#,VZN10#

 1
64111A - PANEL, BACK
64101-89131

RN10#,VZN10#..DLX

W(SEPARATE SEAT)

 1
64101-89141

RN10#,VZN10#..DLX

 1
64807A - GLASS SUB-ASSY, BACK WINDOW SLIDE, RH
64807-89137

VZN100..DLX;RN10#,VZN105

*TT,T=3.5,BLUE

 1
64807-89135

VZN100..DLX;RN10#,VZN105

*TEM,T=3.5

 1
64808 - CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS
64808-89105

RN10#,VZN10#

 1
64809 - GLASS SUB-ASSY, BACK WINDOW SLIDE, LH
64809-89103

VZN100..DLX;RN10#,VZN105

*TT,T=3.5,BLUE

 1
64809-89102

VZN100..DLX;RN10#,VZN105

*TEM,T=3.5

 1
64810 - WINDOW ASSY, BACK
64810-89109

VZN100..DLX;RN10#,VZN105

*TEM,T=3.5

 1
64810-89110

VZN100..DLX;RN10#,VZN105

*TT,T=3.5,BLUE

 1
64811 - GLASS, BACK WINDOW
64811-89119

VZN100..DLX;RN10#,VZN105

*TEM,T=3.5

 1
64811-89120

VZN100..DLX;RN10#,VZN105

*TT,T=3.5

 1
64812C - WEATHERSTRIP, BACK WINDOW GLASS
64812-89108

RN10#,VZN10#

 1
64812-89109

RN10#,VZN10#

W(SLIDING REAR WINDOW)

 1
64812C - WEATHERSTRIP, BACK WINDOW GLASS
64812-89108

RN10#,VZN10#

 1
64812-89109

RN10#,VZN10#

W(SLIDING REAR WINDOW)

 1
64813 - GLASS, BACK WINDOW CORNER, RH
64813-89102

VZN100..DLX;RN10#,VZN105

*TT,T=3.5

 1
64813-89101

VZN100..DLX;RN10#,VZN105

*TEM,T=3.5

 1
64814 - GLASS, BACK WINDOW CORNER, LH
64814-89101

VZN100..DLX;RN10#,VZN105

*TEM,T=3.5

 1
64814-89102

VZN100..DLX;RN10#,VZN105

*TT,T=3.5

 1
64818 - SPACER, BACK WINDOW GLASS
64818-89101

RN10#,110,VZN10#,110

 2
64825 - RUN, BACK WINDOW CHANNEL, UPPER
64825-89101

RN10#,110,VZN10#,110

 1
64826 - RUN, BACK WINDOW CHANNEL, LOWER
64826-89101

RN10#,110,VZN10#,110

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-89110

RN10#,110,VZN10#,110

 2
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-89110

RN10#,110,VZN10#,110

 2
64833A - WEATHERSTRIP, BACK WINDOW CENTER CHANNEL
64833-89114

RN10#,VZN10#

 1
64834D - WEATHERSTRIP, BACK WINDOW SLIDE GLASS
64834-89101

RN10#,VZN10#

 2
64834D - WEATHERSTRIP, BACK WINDOW SLIDE GLASS
64834-89101

RN10#,VZN10#

 2
64835A - WEATHERSTRIP, BACK WINDOW GLASS, CENTER
64835-89101

RN10#,110,VZN10#,110

 1
64837C - WEATHERSTRIP, BACK WINDOW CORNER GLASS
64837-89101

RN10#,VZN10#

 2
64837C - WEATHERSTRIP, BACK WINDOW CORNER GLASS
64837-89101

RN10#,VZN10#

 2
64839A - PACKING, BACK WINDOW
64839-89105

RN10#,110,VZN10#,110

 1
64851 - STOP, BACK WINDOW SLIDE GLASS
64851-89103

RN10#,110,VZN10#,110

 1
64883 - FRAME, BACK WINDOW
64881-89104

RN10#,VZN10#

 2
64883 - FRAME, BACK WINDOW
64881-89104

RN10#,VZN10#

 2
64885A - CHANNEL, BACK WINDOW GLASS, RH
64885-89102

RN10#,VZN10#

 1
64886 - CHANNEL, BACK WINDOW GLASS, LH
64886-89102

RN10#,VZN10#

 1
69370A - LOCK ASSY, BACK WINDOW
69370-89103

RN10#,110,VZN10#,110

 1
69374 - CATCH, BACK WINDOW LOCK
69374-89103

RN10#,110,VZN10#,110

 1
69375A - RETAINER, BACK WINDOW LOCK
69375-89103

RN10#,110,VZN10#,110

 2
69376B - PACKING, BACK WINDOW LOCK
69376-89103

RN10#,110,VZN10#,110

 2
Common parts
90159-50074
90161-40013
90333-35001
90950-01150
91521-40612
93319-15020
93385-16016
93520-24012
93530-54010
93540-64012
