VZN105L-TRMDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1992
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3VZE

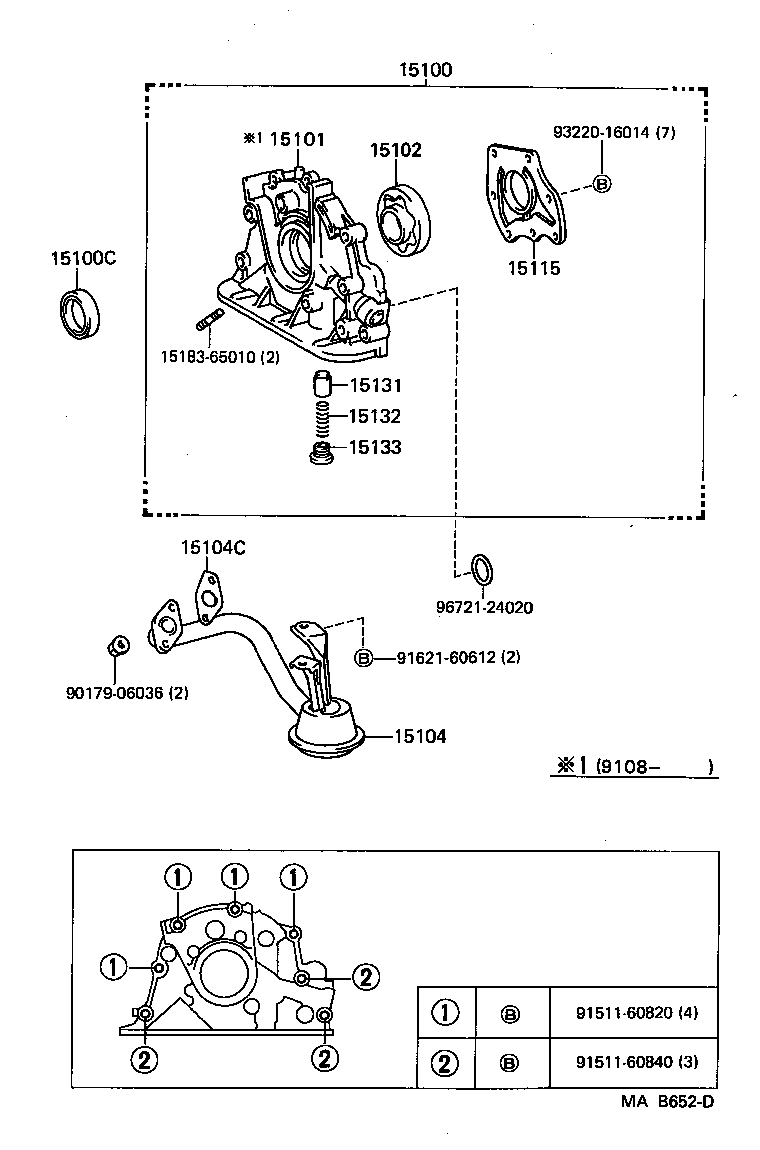

Click highlighted areas on diagram

diagram 15100 15100C 15101 15102 15104 15104C 15115 15131 15132 15133 1518365010 9017906036 9151160820 9151160840 9162160612 9322016014 9672124020
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-65020

3VZE..VZN10#,110,13#

 1
15100C - SEAL(FOR OIL PUMP)
90311-40006

3VZE..VZN10#,110,13#

 1
15102 - ROTOR SET, OIL PUMP
15103-65020

3VZE..VZN10#,110,13#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-65010

3VZE..VZN10#,110,13#

 1
15104C - GASKET(FOR OIL STRAINER)
15147-62020

3VZE..VZN10#,110,13#

 1
15115 - COVER, OIL PUMP
15115-65020

3VZE..VZN10#,110,13#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

3VZE..VZN10#,110,13#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-65020

3VZE..VZN10#,110,13#

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

3VZE..VZN10#,110,13#

 1
Common parts
15183-65010
90179-06036
91511-60820
91511-60840
91621-60612
93220-16014
96721-24020
