VZN100L-TRMDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8904- )

Click highlighted areas on diagram

REAR CONTROL

diagram 55519R 55905B 8401
Part # Description Qty Price
Linked diagrams
8401

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

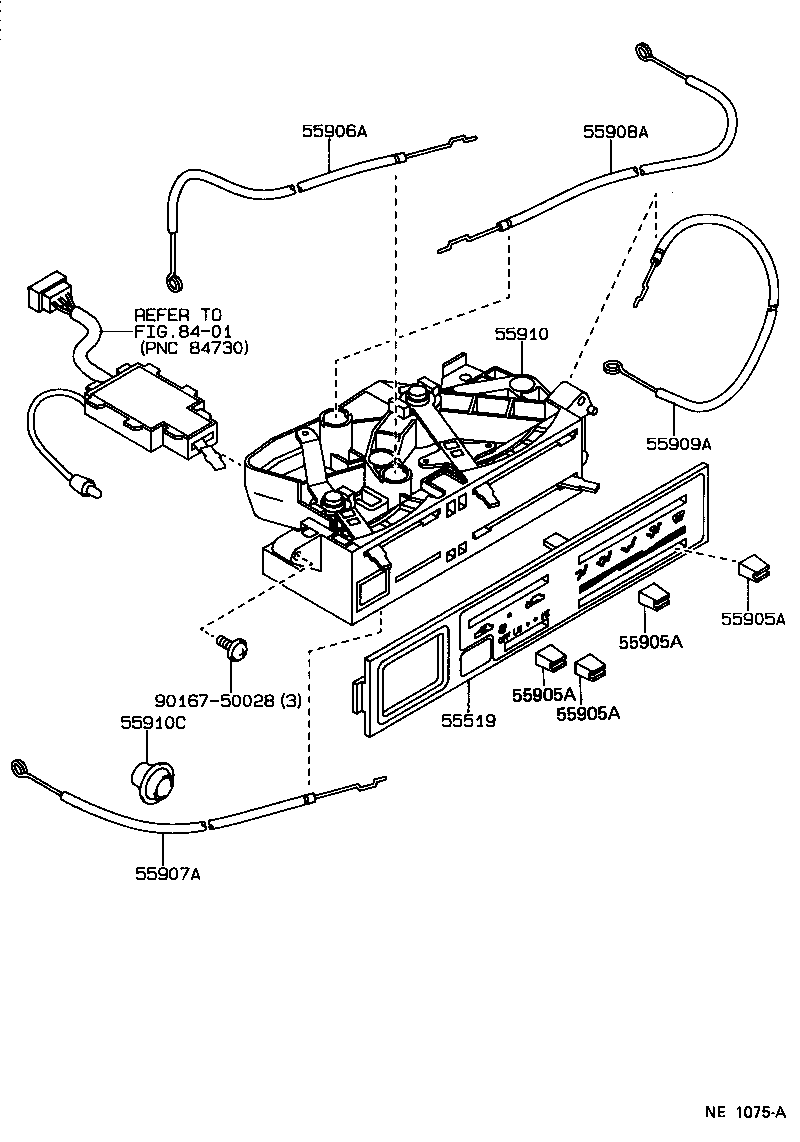

FRONT CONTROL

diagram 55519 55905A 55905A 55905A 55905A 55906A 55907A 55908A 55909A 55910 55910C 8401 9016750028
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-89148

RN10#,110,VZN10#,110..DLX

W(CLOCK)

 1
55519-89150

RN10#,110,VZN10#,110..DLX

 1
55905A - KNOB, HEATER CONTROL
55905-89115

RN10#,110,13#,VZN10#,110,13#

 4
55905A - KNOB, HEATER CONTROL
55905-89115

RN10#,110,13#,VZN10#,110,13#

 4
55905A - KNOB, HEATER CONTROL
55905-89115

RN10#,110,13#,VZN10#,110,13#

 4
55905A - KNOB, HEATER CONTROL
55905-89115

RN10#,110,13#,VZN10#,110,13#

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-89111

RN10#,110,13#,VZN10#,110,13#

 1
55906-35010

RN10#,110,13#,VZN10#,110,13#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-89117

RN10#,110,13#,VZN10#,110,13#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-89106

RN10#,110,13#,VZN10#,110,13#

 1
55908-35010

RN10#,110,13#,VZN10#,110,13#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-89111

RN10#,110,13#,VZN10#,110,13#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-35020

RN10#,110,13#,VZN10#,110,13#

 1
55910-89126

RN10#,110,13#,VZN10#,110,13#

 1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-15001

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90167-50028
Linked diagrams
8401

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

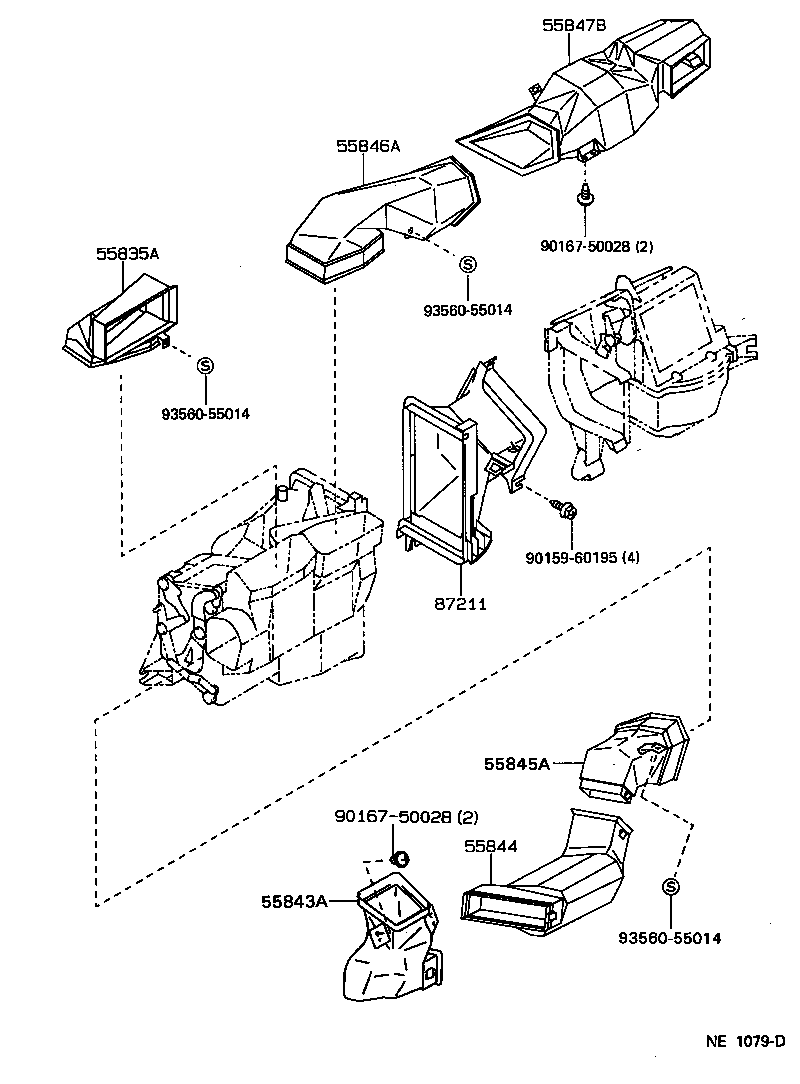

FRONT DUCT

diagram 55835A 55843A 55844 55845A 55846A 55847B 87211 9015960195 9016750028 9016750028 9356055014 9356055014 9356055014
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-89109

RN10#,110,13#,VZN10#,110,13#

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-89115

RN10#,110,13#,VZN10#,110,13#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-89112

RN10#,110,13#,VZN10#,110,13#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-89107

RN10#,110,13#,VZN10#,110,13#

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-89108

RN10#,110,13#,VZN10#,110,13#

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-89114

RN10#,110,13#,VZN10#,110,13#

 1
87211 - DUCT, AIR, NO.1
87211-89113

RN10#,110,VZN10#,110

 1
Common parts
90159-60195
90167-50028
93560-55014
