VZN100L-TRMDEA3 (1988)
Toyota 4-Runner Truck (Jpp)
(8808- )3VZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-65010 |
3VZE..VZN10#,110,13# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-65020 |
3VZE..VZN10#,110,13# |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90507-21001 |
3VZE..VZN10#,110,13# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-65011 |
3VZE..VZN10#,110,13# |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
3VZE..VZN10#,110,13# L=15,OD=5 |
2 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05121 |
3VZE..VZN10#,110,13# L=15,OD=5 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-65011 |
3VZE..VZN10#,110,13# |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13051-65010 |
3VZE..VZN10#,110,13# |
2 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13051-65010 |
3VZE..VZN10#,110,13# |
2 | ||
| 13568 - BELT, TIMING | ||||
| 13568-65010 |
3VZE..VZN10#,110,13# |
1 | ||
| 13585 - BRACKET, TENSION SPRING | ||||
| 13558-65010 |
3VZE..VZN10#,110,13# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-65010 |
3VZE..VZN10#,110,13# |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02078 |
3VZE..VZN10#,110,13# FOR INTAKE VALVE |
6 | ||
| 90913-02053 |
3VZE..VZN10#,110,13# FOR EXHAUST VALVE |
6 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02078 |
3VZE..VZN10#,110,13# FOR INTAKE VALVE |
6 | ||
| 90913-02053 |
3VZE..VZN10#,110,13# FOR EXHAUST VALVE |
6 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-41001 |
3VZE..VZN10#,110,13# |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-41001 |
3VZE..VZN10#,110,13# |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-21002 |
3VZE..VZN10#,110,13# |
12 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-21002 |
3VZE..VZN10#,110,13# |
12 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-65010 |
3VZE..VZN10#,110,13# |
6 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-65010 |
3VZE..VZN10#,110,13# |
12 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-65010 |
3VZE..VZN10#,110,13# |
12 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
3VZE..VZN10#,110,13# |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
3VZE..VZN10#,110,13# |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-64011 |
3VZE..VZN10#,110,13# |
12 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-64011 |
3VZE..VZN10#,110,13# |
12 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-64010 |
3VZE..VZN10#,110,13# T=2.20 |
1 | ||
| 13753-64130 |
3VZE..VZN10#,110,13# T=2.50 |
1 | ||
| 13753-64030 |
3VZE..VZN10#,110,13# T=2.25 |
1 | ||
| 13753-64110 |
3VZE..VZN10#,110,13# T=2.45 |
1 | ||
| 13753-64210 |
3VZE..VZN10#,110,13# T=2.70 |
1 | ||
| 13753-64150 |
3VZE..VZN10#,110,13# T=2.55 |
1 | ||
| 13753-64270 |
3VZE..VZN10#,110,13# T=2.85 |
1 | ||
| 13753-64170 |
3VZE..VZN10#,110,13# T=2.60 |
1 | ||
| 13753-64310 |
3VZE..VZN10#,110,13# T=2.95 |
1 | ||
| 13753-64090 |
3VZE..VZN10#,110,13# T=2.40 |
1 | ||
| 13753-64190 |
3VZE..VZN10#,110,13# T=2.65 |
1 | ||
| 13753-64050 |
3VZE..VZN10#,110,13# T=2.30 |
1 | ||
| 13753-64410 |
3VZE..VZN10#,110,13# T=3.20 |
1 | ||
| 13753-64450 |
3VZE..VZN10#,110,13# T=3.30 |
1 | ||
| 13753-64490 |
3VZE..VZN10#,110,13# T=3.40 |
1 | ||
| 13753-64250 |
3VZE..VZN10#,110,13# T=2.80 |
1 | ||
| 13753-64470 |
3VZE..VZN10#,110,13# T=3.35 |
1 | ||
| 13753-64370 |
3VZE..VZN10#,110,13# T=3.10 |
1 | ||
| 13753-64230 |
3VZE..VZN10#,110,13# T=2.75 |
1 | ||
| 13753-64390 |
3VZE..VZN10#,110,13# T=3.15 |
1 | ||
| 13753-64070 |
3VZE..VZN10#,110,13# T=2.35 |
1 | ||
| 13753-64350 |
3VZE..VZN10#,110,13# T=3.05 |
1 | ||
| 13753-64430 |
3VZE..VZN10#,110,13# T=3.25 |
1 | ||
| 13753-64290 |
3VZE..VZN10#,110,13# T=2.90 |
1 | ||
| 13753-64330 |
3VZE..VZN10#,110,13# T=3.00 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-64010 |
3VZE..VZN10#,110,13# T=2.20 |
1 | ||
| 13753-64130 |
3VZE..VZN10#,110,13# T=2.50 |
1 | ||
| 13753-64030 |
3VZE..VZN10#,110,13# T=2.25 |
1 | ||
| 13753-64110 |
3VZE..VZN10#,110,13# T=2.45 |
1 | ||
| 13753-64210 |
3VZE..VZN10#,110,13# T=2.70 |
1 | ||
| 13753-64150 |
3VZE..VZN10#,110,13# T=2.55 |
1 | ||
| 13753-64270 |
3VZE..VZN10#,110,13# T=2.85 |
1 | ||
| 13753-64170 |
3VZE..VZN10#,110,13# T=2.60 |
1 | ||
| 13753-64310 |
3VZE..VZN10#,110,13# T=2.95 |
1 | ||
| 13753-64090 |
3VZE..VZN10#,110,13# T=2.40 |
1 | ||
| 13753-64190 |
3VZE..VZN10#,110,13# T=2.65 |
1 | ||
| 13753-64050 |
3VZE..VZN10#,110,13# T=2.30 |
1 | ||
| 13753-64410 |
3VZE..VZN10#,110,13# T=3.20 |
1 | ||
| 13753-64450 |
3VZE..VZN10#,110,13# T=3.30 |
1 | ||
| 13753-64490 |
3VZE..VZN10#,110,13# T=3.40 |
1 | ||
| 13753-64250 |
3VZE..VZN10#,110,13# T=2.80 |
1 | ||
| 13753-64470 |
3VZE..VZN10#,110,13# T=3.35 |
1 | ||
| 13753-64370 |
3VZE..VZN10#,110,13# T=3.10 |
1 | ||
| 13753-64230 |
3VZE..VZN10#,110,13# T=2.75 |
1 | ||
| 13753-64390 |
3VZE..VZN10#,110,13# T=3.15 |
1 | ||
| 13753-64070 |
3VZE..VZN10#,110,13# T=2.35 |
1 | ||
| 13753-64350 |
3VZE..VZN10#,110,13# T=3.05 |
1 | ||
| 13753-64430 |
3VZE..VZN10#,110,13# T=3.25 |
1 | ||
| 13753-64290 |
3VZE..VZN10#,110,13# T=2.90 |
1 | ||
| 13753-64330 |
3VZE..VZN10#,110,13# T=3.00 |
1 | ||
| Common parts | ||||
| 90105-08156 | ||||
| 90105-12149 | ||||
| 90116-06079 | ||||
| 90119-08658 | ||||
| 90159-10001 | ||||
| 90201-10050 | ||||
| 90201-10117 | ||||
| 91611-60830 | ||||

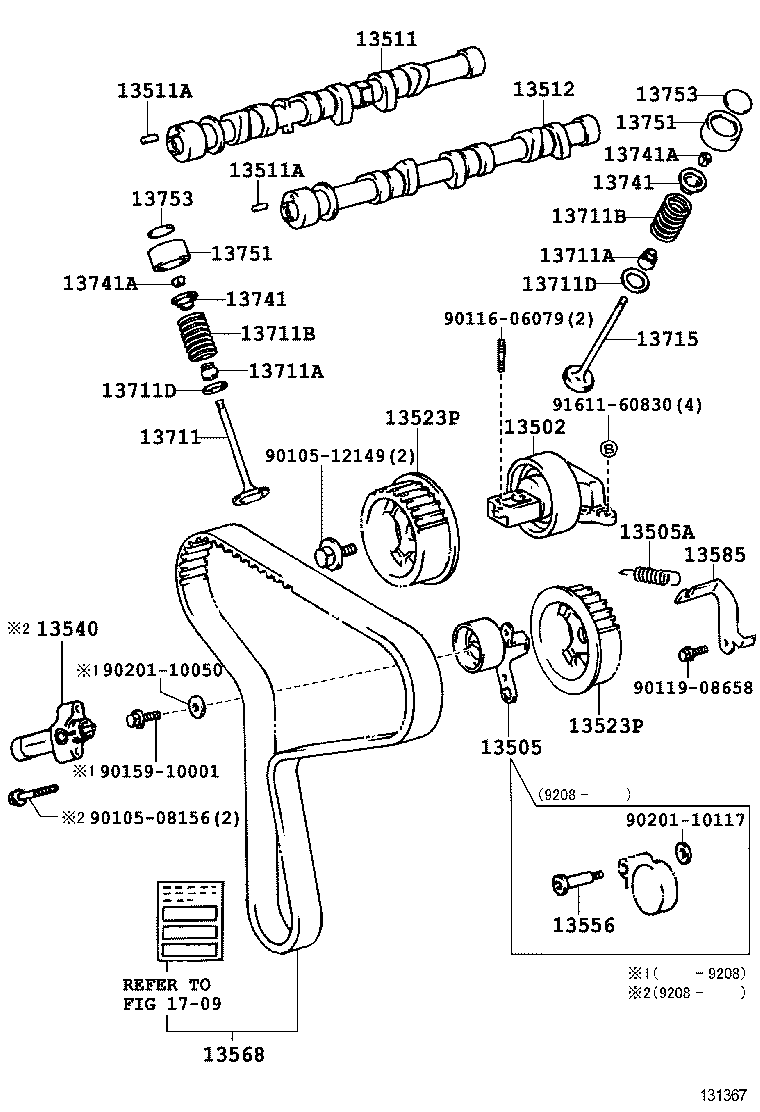

| Linked diagrams | ||||
| 1709 | ||||
