RN90L-CRSSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )JPP..ATM

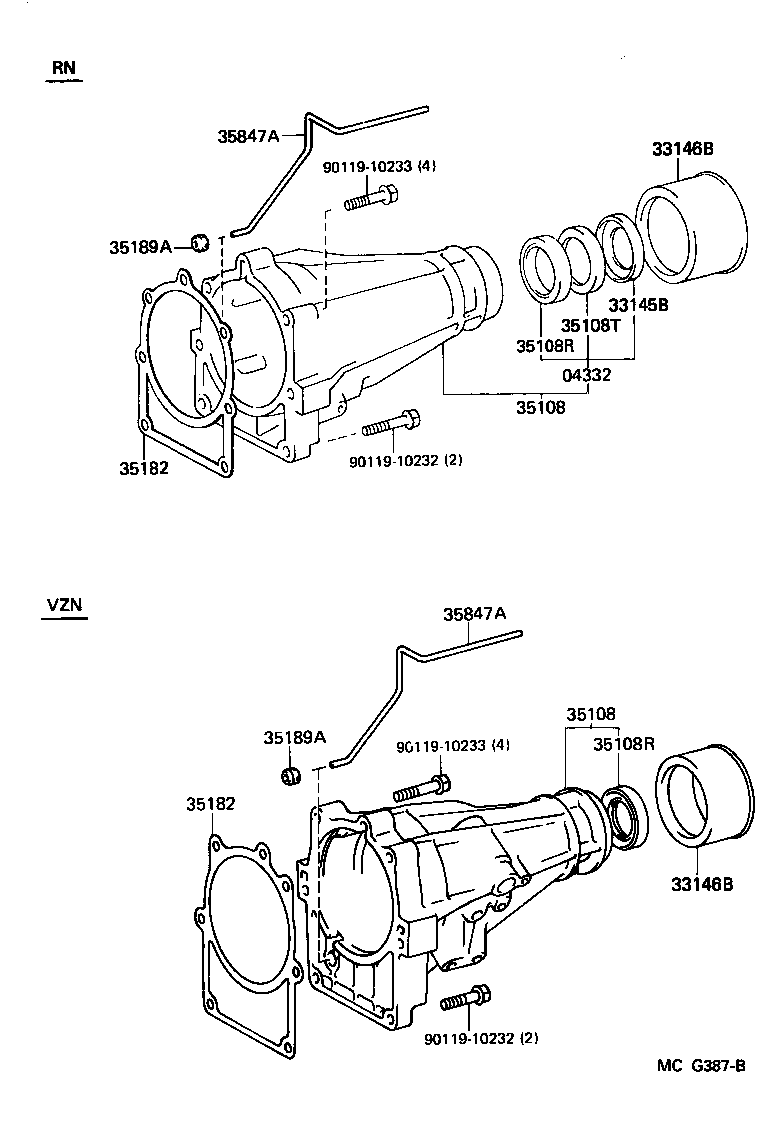

Click highlighted areas on diagram

diagram 04332 33145B 33146B 33146B 35108 35108 35108R 35108R 35108T 35182 35182 35189A 35189A 35847A 35847A 9011910232 9011910232 9011910233 9011910233
Part # Description Qty Price
04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)
04332-30030

RN12#,8#,90..ATM

 1
33145B - RETAINER, EXTENSION HOUSING DUST SEAL
33145-30010

RN12#,8#,90..ATM

 1
33146B - DEFLECTOR, EXTENSION HOUSING DUST
33146-30010

RN12#,8#,90,VZN120,85,9#..ATM

 1
33146B - DEFLECTOR, EXTENSION HOUSING DUST
33146-30010

RN12#,8#,90,VZN120,85,9#..ATM

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-24021

VZN120,85,9#..ATM

 1
35108-20060

RN12#,8#,90..ATM

 1
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35108-24021

VZN120,85,9#..ATM

 1
35108-20060

RN12#,8#,90..ATM

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-40001

VZN120,85,9#..ATM

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-40001

VZN120,85,9#..ATM

 1
35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN
90303-38010

RN12#,8#,90..ATM

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

RN12#,8#,90,VZN120,85,9#..ATM

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-22010

RN12#,8#,90,VZN120,85,9#..ATM

 1
35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE
35189-30010

RN12#,8#,90,VZN120,85,9#..ATM

 1
35189A - GASKET, EXTENSION HOUSING BUSH APPLY TUBE
35189-30010

RN12#,8#,90,VZN120,85,9#..ATM

 1
35847A - TUBE, EXTENSION HOUSING BUSH APPLY
35847-30020

RN12#,8#,90,VZN120,85,9#..ATM

 1
35847A - TUBE, EXTENSION HOUSING BUSH APPLY
35847-30020

RN12#,8#,90,VZN120,85,9#..ATM

 1
Common parts
90119-10232
90119-10233
